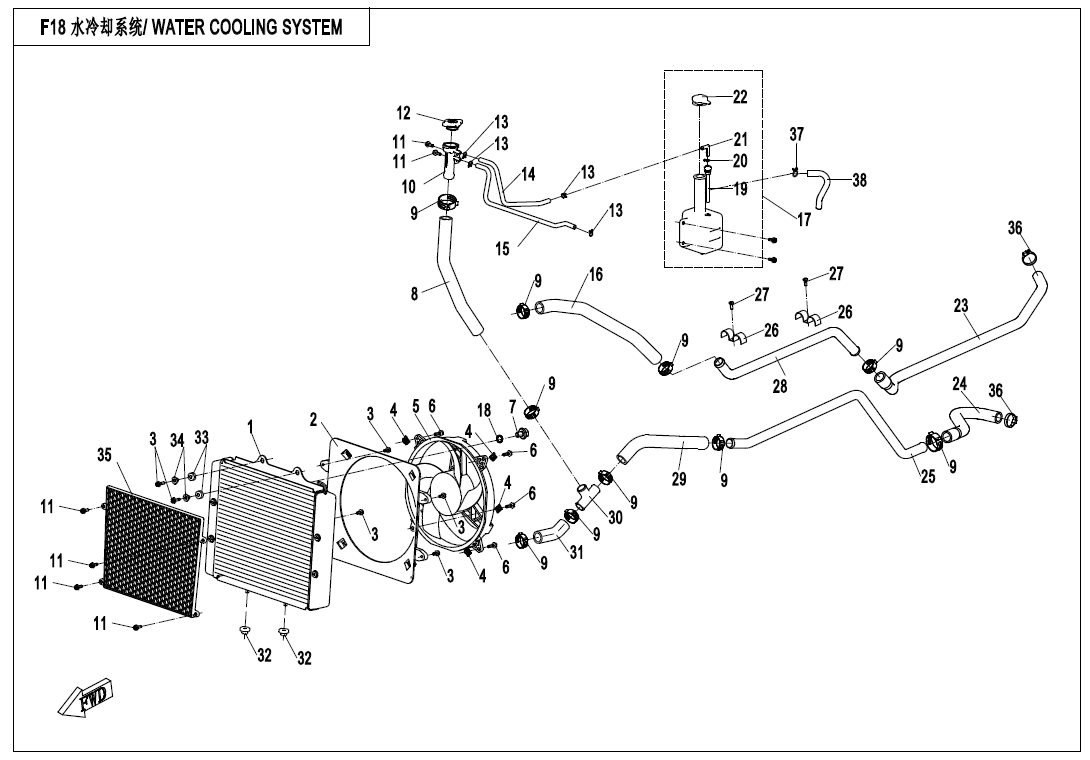

WATER COOLING SYSTEM - F18 | 2019, UTV, CF500UTR-2 | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9060-180100-1000

Part Name: RADIATOR ASSY.

Price: 228,00 € : 228,00 €

02

P/N (SKU): 9060-181301

Part Name: DEFLECTOR, FAN

Price: 13,00 € : 13,00 €

03

P/N (SKU): 30006-060025810

Part Name: BOLT

Specification: M6X25

Price: 1,50 € : 1,50 €

04

P/N (SKU): 8030-040800

Part Name: NUT CLIP M6

Alternative parts: 8030-040800-00001

Specification: M6

Price: 1,50 € : 1,50 €

05

P/N (SKU): 7020-181400-1000

Part Name: FAN&MOTOR

Specification: SUMITOMO PLUG

Price: 181,00 € : 181,00 €

05

P/N (SKU): 7020-181400

Part Name: FAN&MOTOR

Specification: ORDINARY

Price: 117,00 € : 117,00 €

06

P/N (SKU): 30006-060020810

Part Name: BOLT

Specification: M6×20

Price: 1,50 € : 1,50 €

07

P/N (SKU): 5BRA-180001

Part Name: THREAD SLEEVE, RADIATOR

Price: 3,50 € : 3,50 €

08

P/N (SKU): 7030-180023

Part Name: WATER FILLING HOSE，RADIATOR

Price: 12,00 € : 12,00 €

09

P/N (SKU): 7000-180007

Part Name: STEEL BAND CLAMP 34

Price: 3,50 € : 3,50 €

10

P/N (SKU): 9060-180025-1000

Part Name: WATER FILLING PORT

Price: 9,00 € : 9,00 €

11

P/N (SKU): 30006-060016810

Part Name: BOLT

Specification: M6×16

Price: 1,50 € : 1,50 €

12

P/N (SKU): 8010-180024

Part Name: CAP，WATER FILLER

Price: 8,50 € : 8,50 €

13

P/N (SKU): 30601-111010

Part Name: CLAMP A11

Specification: A11

Price: 1,50 € : 1,50 €

14

P/N (SKU): 7030-180062

Part Name: WATER HOSE, RESERVOIR TANK

Price: 2,50 € : 2,50 €

15

P/N (SKU): 7030-180061

Part Name: OVERFLOW HOSE, RADIATOR

Price: 3,00 € : 3,00 €

16

P/N (SKU): 7030-180022

Part Name: WATER OUTLET HOSE, RADIATOR

Price: 14,00 € : 14,00 €

17

P/N (SKU): 7030-180900

Part Name: RESERVOIR TANK ASSY.

Price: 17,00 € : 17,00 €

18

P/N (SKU): 5BRA-180002

Part Name: O-SEAL RING

Price: 2,00 € : 2,00 €

19

P/N (SKU): 8010-180028

Part Name: HOSE, RESERVOIR TANK

Price: 2,00 € : 2,00 €

20

P/N (SKU): 30601-112010

Part Name: CLAMP A12

Specification: A12

Price: 1,50 € : 1,50 €

21

P/N (SKU): 8030-180302

Part Name: JOINT

Price: 2,00 € : 2,00 €

22

P/N (SKU): 8010-180023

Part Name: CAP，RESERVOIR TANK

Price: 3,00 € : 3,00 €

23

P/N (SKU): 5UR0-180030

Part Name: WATER OUTLET HOSE， ENGINE

Price: 24,00 € : 24,00 €

24

P/N (SKU): 5UR0-180003

Part Name: WATER INLET HOSE，ENGINE

Price: 18,00 € : 18,00 €

25

P/N (SKU): 5UR0-180001

Part Name: WATER INLET ALUM. PIPE

Price: 12,00 € : 12,00 €

26

P/N (SKU): 9030-180006

Part Name: CLASP,WATER HOSE

Price: 1,50 € : 1,50 €

27

P/N (SKU): 30105-060016410

Part Name: SCREW

Specification: M6×16

Price: 1,50 € : 1,50 €

28

P/N (SKU): 7030-180052

Part Name: ALUM PIPE，WATER OUTLET

Price: 14,00 € : 14,00 €

29

P/N (SKU): 7030-180024

Part Name: WATER INLET HOSE 2, RADIATOR

Price: 8,50 € : 8,50 €

30

P/N (SKU): 9060-180022

Part Name: T-JOINT, WATER HOSE

Price: 5,00 € : 5,00 €

31

P/N (SKU): 7030-180021

Part Name: WATER INLET HOSE 1, RADIATOR

Price: 4,50 € : 4,50 €

32

P/N (SKU): 9060-180027

Part Name: RUBBER CUSHION ，RADIATOR

Price: 1,50 € : 1,50 €

33

P/N (SKU): 9060-180026

Part Name: PIN RUBBER CAP, RADIATOR

Price: 1,50 € : 1,50 €

34

P/N (SKU): 9060-180029

Part Name: RUBBER CUSHION TUBE, RADIATOR

Price: 1,50 € : 1,50 €

35

P/N (SKU): 7030-180003

Part Name: MESHER，RADIATOR

Price: 11,00 € : 11,00 €

36

P/N (SKU): 9010-180007

Part Name: CLAMP ，WATER HOSE

Price: 3,00 € : 3,00 €

37

P/N (SKU): 30601-113010

Part Name: CLAMP A13

Specification: A13

Price: 1,50 € : 1,50 €

38

P/N (SKU): 6100-000102

Part Name: OUTLET PIPEⅠ, IDLE

Price: 2,00 € : 2,00 €
