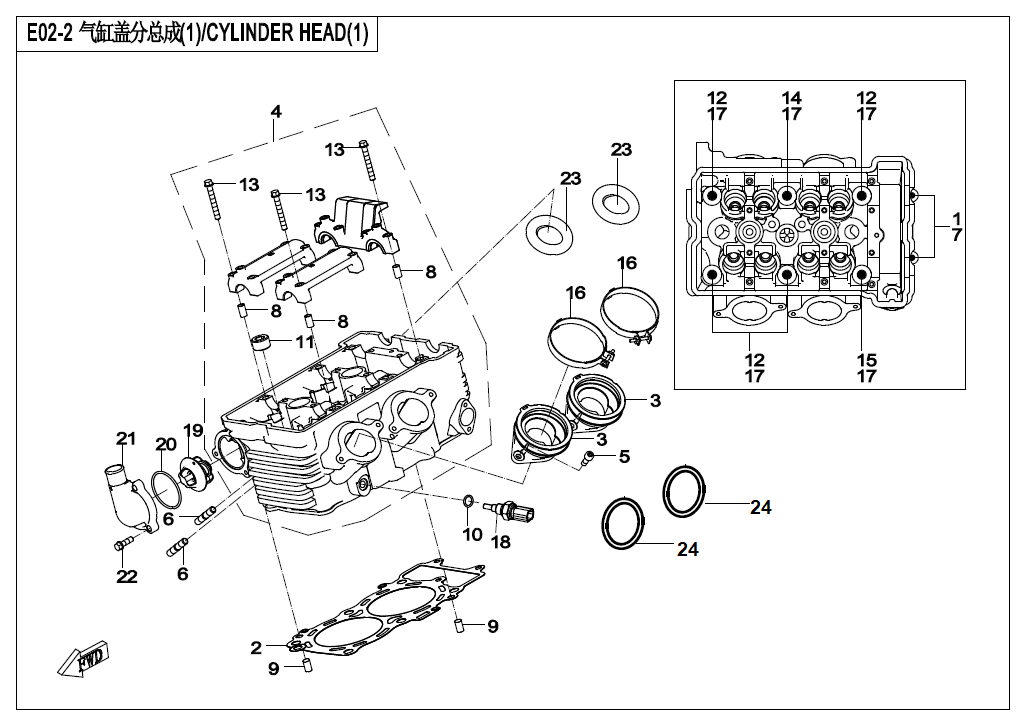

CYLINDER HEAD(1) - E02-2 | ENGINE, 283MT-C(CF650-8F), 2024

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0HU0-022002

Part Name: INNER HEX SCREW M6x30

Effective: 2023-12-06

Alternative parts:

Price: 1,50 € : 1,50 €

02

P/N (SKU): 0700-022100-0001

Part Name: CYLINDER HEAD GASKET ASSY

Effective: 2023-12-06

Alternative parts:

Price: 32,00 € : 32,00 €

03

P/N (SKU): 0700-022320-20000

Part Name: AIR INLET PIPE ASSY

Effective: 2023-12-06

Alternative parts:

Price: 20,00 € : 20,00 €

04

P/N (SKU): 0HTC-022200-0B200

Part Name: CYLINDER HEAD

Effective: 2023-12-06

Remarks: CF650-3F/CF650-8F

Alternative parts: 0HTC-022200-0B201

Specification: MATTE BLACK

Price: 494,00 € : 494,00 €

04

P/N (SKU): 0HTC-022200-0B201

Part Name: CYLINDER HEAD ASSY

Effective: 2024-04-08

Remarks: CF650-3F/CF650-8F

Alternative parts:

Specification: MATTE BLACK

Price: 258,00 € : 258,00 €

05

P/N (SKU): 30102-060016810

Part Name: SCREW

Effective: 2023-12-06

Alternative parts:

Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

06

P/N (SKU): 0180-022003-00001

Part Name: STUD

Effective: 2023-12-06

Alternative parts: 0180-022003-00002

Price: 1,50 € : 1,50 €

07

P/N (SKU): 0060-030004-0030

Part Name: WASHER

Effective: 2023-12-06

Alternative parts:

Specification: 6x10.4x1.6

Price: 1,50 € : 1,50 €

08

P/N (SKU): 0010-080008

Part Name: DOWEL PIN

Effective: 2023-12-06

Alternative parts:

Specification: 8X14

Price: 1,50 € : 1,50 €

09

P/N (SKU): 0700-022018

Part Name: SOLID PIN 8x14

Effective: 2023-12-06

Alternative parts:

Specification: 8x14

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0700-022019

Part Name: WASHER

Effective: 2023-12-06

Alternative parts:

Specification: 12.5x20x1

Price: 2,00 € : 2,00 €

11

P/N (SKU): 0700-022236

Part Name: PLUG, PT1/2

Effective: 2023-12-06

Alternative parts:

Price: 2,00 € : 2,00 €

12

P/N (SKU): 0700-022013-00001

Part Name: CYLINDER HEAD BOLT

Effective: 2023-12-06

Alternative parts:

Specification: M10x158@GALVANIZED TR

Price: 3,50 € : 3,50 €

13

P/N (SKU): 0700-022204

Part Name: HEX FLANGE BOLT M6x45

Effective: 2023-12-06

Alternative parts:

Specification: M6X45

Price: 1,50 € : 1,50 €

14

P/N (SKU): 0700-022014-10001

Part Name: CYLINDER HEAD BOLT

Effective: 2023-12-06

Alternative parts:

Specification: M10x176@GALVANIZED TRIVALENT CH

Price: 3,50 € : 3,50 €

15

P/N (SKU): 0700-022015-00002

Part Name: CYLINDER HEAD BOLT

Effective: 2023-12-06

Alternative parts:

Price: 3,50 € : 3,50 €

16

P/N (SKU): 0700-022330

Part Name: CLAMP, AIR INLET PIPE

Effective: 2023-12-06

Alternative parts:

Price: 3,00 € : 3,00 €

17

P/N (SKU): 0700-022016

Part Name: WASHER

Effective: 2023-12-06

Alternative parts:

Specification: 10.5x19x2.3

Price: 1,50 € : 1,50 €

18

P/N (SKU): 018B-022810

Part Name: COOLANT TEMP. SENSOR

Effective: 2023-12-06

Alternative parts:

Price: 27,00 € : 27,00 €

19

P/N (SKU): 0700-022500-0001

Part Name: THERMOSTAT

Effective: 2023-12-06

Alternative parts:

Price: 14,00 € : 14,00 €

20

P/N (SKU): 0700-022011

Part Name: O-RING

Effective: 2023-12-06

Alternative parts:

Specification: 44.5x2.5

Price: 3,00 € : 3,00 €

21

P/N (SKU): 0700-022009-1B201

Part Name: THERMOSTAT CAP

Effective: 2023-12-06

Alternative parts:

Specification: MATTE BLACK

Price: 7,50 € : 7,50 €

22

P/N (SKU): 0010-023010-0010

Part Name: BOLT

Effective: 2023-12-06

Alternative parts: 0JWV-011107-3000

Specification: M6x20

Price: 1,50 € : 1,50 €

23

P/N (SKU): 0700-022012

Part Name: GASKET, EXHAUST PIPE

Effective: 2023-12-06

Alternative parts:

Price: 2,00 € : 2,00 €

24

P/N (SKU): 0MQ0-022301

Part Name: O-RING 47.5x2.5

Effective: 2024-08-15

Alternative parts:

Price: 3,00 € : 3,00 €
