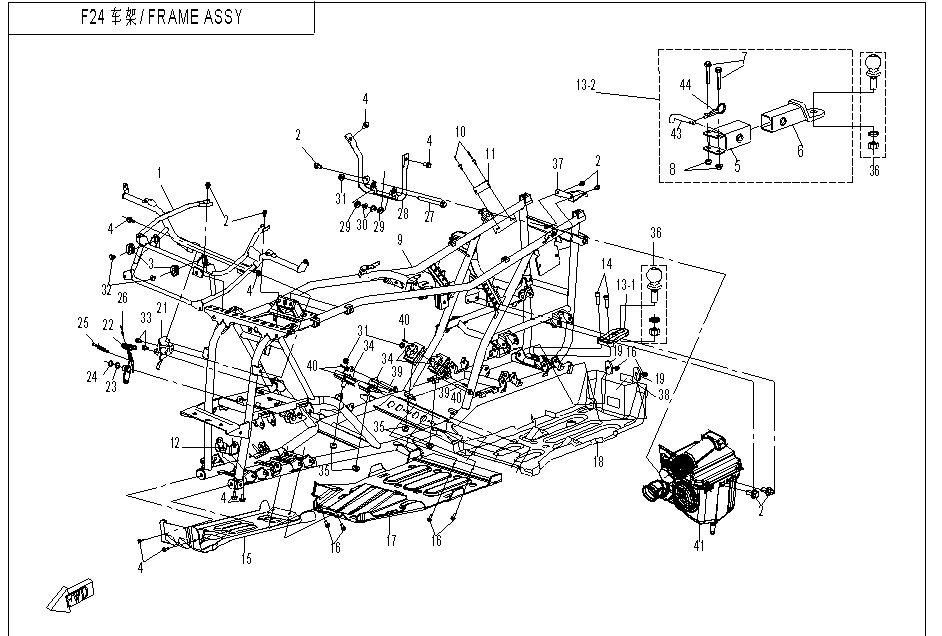

FRAME - F24（1） | 2015, ATV, CF500-5C

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 9050-030040-3000

Part Name: BRACKET, RADIATOR

Price: 42,00 € : 42,00 €

P/N (SKU): 30006-060012840

Part Name: BOLT M6x12

Alternative parts: 30006-060012810

Specification: M6x12

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-030047

Part Name: RUBBER CUSHION WASHER

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-080014840

Part Name: BOLT

Alternative parts: 30006-080014810

Specification: M8×14

Price: 1,50 € : 1,50 €

P/N (SKU): 30500-025801N

Part Name: OIL SEAL

Specification: FB25x44x7

Price: 3,00 € : 3,00 €

P/N (SKU): 9010-030003

Part Name: BEARING RETAINER

Price: 3,50 € : 3,50 €

P/N (SKU): 30400-01780

Part Name: BEARING

Specification: 6203-2RZ

Price: 4,00 € : 4,00 €

P/N (SKU): 30500-025800N

Part Name: OIL SEAL

Specification: FB25x36x8

Price: 2,00 € : 2,00 €

P/N (SKU): 905C-030100-2B000

Part Name: FRAME ASSY

Remarks: EURO

Specification: BLACK

Price: 578,00 € : 578,00 €

P/N (SKU): 9050-030100-30000

Part Name: FRAME ASSY.

Remarks: EURO

Alternative parts: 9050-030100-50000

Price: 508,00 € : 508,00 €

P/N (SKU): 905A-030100

Part Name: FRAME ASSY.

Alternative parts: 905A-030100-70000+901A-037830+901A-037840

Price: 680,00 € : 680,00 €

P/N (SKU): 9050-030100-50000

Part Name: FRAME ASSY.

Remarks: EURO

Price: 691,00 € : 691,00 €

P/N (SKU): 9050-030100-60000

Part Name: FRAME ASSY.

Remarks: USA

Price: 698,00 € : 698,00 €

P/N (SKU): 905C-030100-60000

Part Name: FRAME ASSY

Remarks: EURO

Price: 673,00 € : 673,00 €

P/N (SKU): 905C-030100-7B000

Part Name: FRAME ASSY.

Remarks: USA

Specification: BLACK

Price: 673,00 € : 673,00 €

P/N (SKU): 9050-030100-40000

Part Name: FRAME ASSY.

Remarks: USA

Alternative parts: 9050-030100-60000

Specification: DOT

Price: 508,00 € : 508,00 €

P/N (SKU): 905A-030100-50000

Part Name: FRAME ASSY

Price: 589,00 € : 589,00 €

P/N (SKU): 30902-0400820

Part Name: BLIND RIVET

Alternative parts: 30902-0401320

Specification: 4x8

Price: 1,50 € : 1,50 €

P/N (SKU): 905A-190006

Part Name: VIN PLATE

Specification: EURO

Price: 2,00 € : 2,00 €

P/N (SKU): 9010-037400

Part Name: BRACKET, FRONT GEAR CASE

Price: 9,50 € : 9,50 €

P/N (SKU): 9010-030002

Part Name: TOWING BRACKET

Remarks: OPTIONAL ；is replaced by 4020-030002

Price: 13,00 € : 13,00 €

P/N (SKU): 30102-102040840

Part Name: INNER HEX SCREW

Remarks: M10*1.25*40

Alternative parts: 30102-102040810

Price: 2,00 € : 2,00 €

P/N (SKU): 9010-040017-A000

Part Name: FRONT PANEL, ENGINE

Price: 33,00 € : 33,00 €

P/N (SKU): 30006-060016840

Part Name: BOLT

Alternative parts: 30006-060016810

Specification: M6x16

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-040016-1000

Part Name: MIDDLE PANEL, ENGINE

Price: 34,00 € : 34,00 €

P/N (SKU): 9010-040015

Part Name: REAR PANEL, ENGINE

Price: 31,00 € : 31,00 €

P/N (SKU): 30301-060442

Part Name: WASHER

Remarks: φ10

Alternative parts: 30301-060412

Specification: 6

Price: 1,50 € : 1,50 €

P/N (SKU): 901A-040001

Part Name: PANEL, DOUBLE SEAT

Price: 13,00 € : 13,00 €

P/N (SKU): 9010-030009

Part Name: PANEL, FRONT BRAKE MASTER CYLINDER

Price: 6,00 € : 6,00 €

P/N (SKU): 9010-080210

Part Name: BRAKE PEDAL

Price: 14,00 € : 14,00 €

P/N (SKU): 30304-140440

Part Name: WASHER

Alternative parts: 30306-140112

Specification: 14

Price: 1,50 € : 1,50 €

P/N (SKU): 30801-01405

Part Name: CIRCLIPS FOR SHAFT14

Specification: 14

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-080201

Part Name: RETURN SPRING, BRAKE PEDAL

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-080203-1000

Part Name: SPRING, BRAKE SWITCH

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-122130840

Part Name: BOLT M12x1.25x130

Alternative parts: 30006-122130810

Specification: M12x1.25x130

Price: 3,50 € : 3,50 €

P/N (SKU): 9010-037200-3000

Part Name: REAR BRACKET

Price: 23,00 € : 23,00 €

P/N (SKU): 9010-037205

Part Name: CUSHION, REAR BRACKET

Price: 2,00 € : 2,00 €

P/N (SKU): 9010-037210

Part Name: BUSHING, REAR SUSPENSION

Price: 3,50 € : 3,50 €

P/N (SKU): 30204-122840

Part Name: NUT

Alternative parts: 30204-122810

Specification: M12×1.25

Price: 2,00 € : 2,00 €

P/N (SKU): 8010-120006

Part Name: T-WASHER

Remarks: is replaced by 5020-031002

Alternative parts: 5020-031002

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-060010840

Part Name: BOLT M6x10

Specification: M6x10

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-000200

Part Name: DAMPER

Alternative parts: 401B-000200-10000

Price: 8,50 € : 8,50 €

P/N (SKU): 30204-102840

Part Name: NUT M10x1.25

Alternative parts: 30204-102110

Specification: M10x1.25

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-205000-1000

Part Name: TOWING HITCHBALL ASSY

Specification: 50mm Certificated ball head

Price: 20,00 € : 20,00 €

P/N (SKU): 9010-205000

Part Name: TOWING HITCHBALL ASSY

Remarks: 2 INCHES, OVERSEAS

Specification: 2"

Price: 21,00 € : 21,00 €

P/N (SKU): 9010-204000

Part Name: TOWING HITCHBALL ASSY

Remarks: 1 7/8 inches

Specification: 1and 7/8"

Price: 23,00 € : 23,00 €

P/N (SKU): 9050-030140

Part Name: BRACKET, REAR DECO PLATE

Price: 3,50 € : 3,50 €

P/N (SKU): 9010-190012

Part Name: INSTRUCTION LABEL, TOWING LOAD

Remarks: OVERSEA

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-190025

Part Name: INSTRUCTION LABEL, TOWING LOAD

Remarks: CHINESE

Specification: CHINESE

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-122145840

Part Name: BOLT M12x1.25x145

Alternative parts: 30006-122145810

Specification: M12x1.25x145

Price: 4,00 € : 4,00 €

P/N (SKU): 30102-060012840

Part Name: INNER HEX SCREW M6x12

Alternative parts: 30102-060012810

Specification: M6x12

Price: 1,50 € : 1,50 €

P/N (SKU): 018B-110000

Part Name: AIR FILTER ASSY

Remarks: is replaced by 018B-110000-1000

Alternative parts: 018B-110000-1000

Price: 54,00 € : 54,00 €

P/N (SKU): 9010-190029

Part Name: HEAT INSULATOR, AIR FILTER

Price: 2,00 € : 2,00 €
