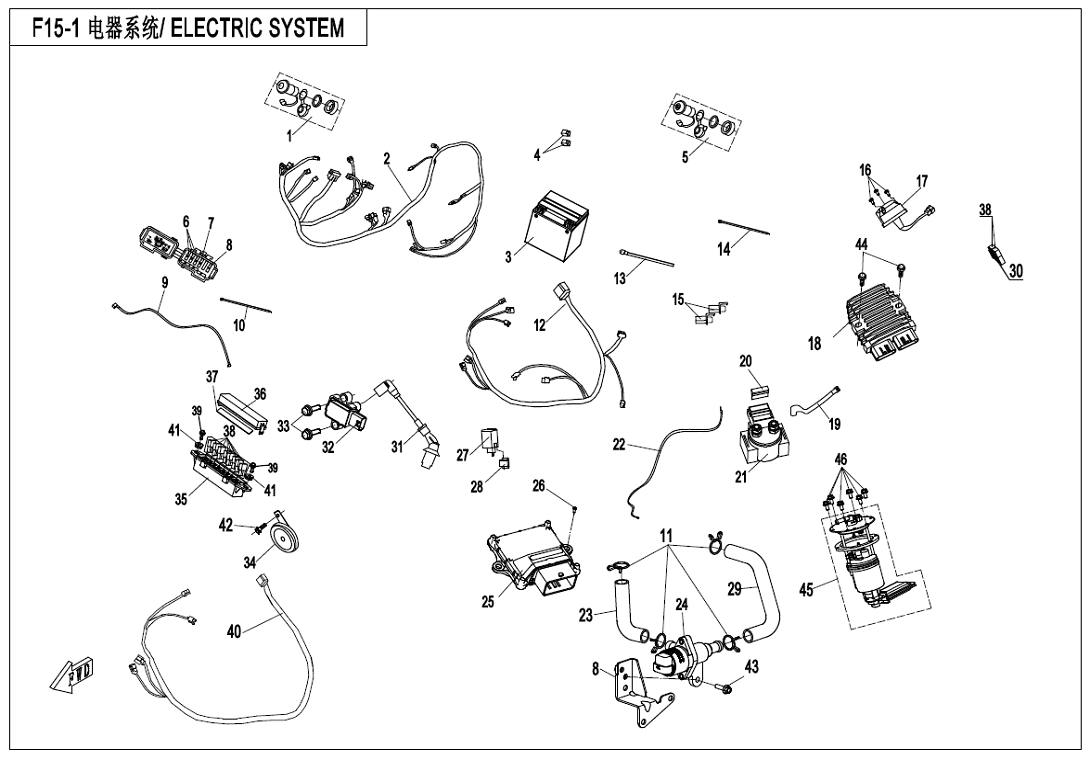

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9GQ0-150500
Part Name: OUTPUT SEAT,POWER
Price: 14,00 € : 14,00 €
-+
02
P/N (SKU): 9GQA-150100
Part Name: MAIN CABLE
Price: 188,00 € : 188,00 €
-+
02
P/N (SKU): 9GQA-150100-A0000
Part Name: MAIN CABLE
Remarks: LOF
Specification: LOF
Price: 284,00 € : 284,00 €
-+
02
P/N (SKU): 9GQA-150100-B0000
Part Name: MAIN CABLE
Remarks: LOF, FOR NEW FOGLIGHT
Price: 211,00 € : 211,00 €
-+
03
P/N (SKU): 31023002
Part Name: BATTERY
Specification: YUASA,12V30Ah
Price: 563,00 € : 563,00 €
-+
03
P/N (SKU): 31023000
Part Name: BATTERY
Specification: DYNOVOLT,12V30Ah
Price: 158,00 € : 158,00 €
-+
03
P/N (SKU): 31023004
Part Name: BATTERY
Price: 272,00 € : 272,00 €
-+
04
P/N (SKU): 905B-150103
Part Name: PLUG, PDA
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 9GQ0-150600
Part Name: OUTPUT SEAT, USB
Alternative parts: 6NT1-150500
Price: 17,00 € : 17,00 €
-+
06
P/N (SKU): 806A-151303
Part Name: FUSE
Specification: 15A
Price: 4,00 € : 4,00 €
-+
07
P/N (SKU): 806A-151302
Part Name: FUSE (10A)
Specification: 10A
Price: 2,50 € : 2,50 €
-+
08
P/N (SKU): 9GQA-030010
Part Name: BRACKET,STEEPING MOTOR
Price: 2,50 € : 2,50 €
-+
09
P/N (SKU): 9GQ0-150230
Part Name: NEGATIVE WIRE,BATTERY
Price: 20,00 € : 20,00 €
-+
10
P/N (SKU): 8010-150003
Part Name: TIE BAND
Specification: 5×250
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30601-117010
Part Name: CLAMP A17
Specification: A17
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9GQA-150300
Part Name: AUXILIARY CABLE, EFI
Price: 84,00 € : 84,00 €
-+
13
P/N (SKU): 9010-150005
Part Name: CABLE CLIP
Alternative parts: 801F-100101
Price: 2,00 € : 2,00 €
14
P/N (SKU): 9010-150004
Part Name: TIE BAND
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 30105-050030410
Part Name: SCREW
Specification: M5×30
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9010-151010-1000
Part Name: POWER SOCKET，TRAILER
Specification: LOF
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 7020-150800
Part Name: POWER SOCKET，TRAILER
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
18
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Specification: LOW POWER
Price: 104,00 € : 104,00 €
-+
19
P/N (SKU): 9GQ0-150210
Part Name: POSITIVE WIRE,BATTERY
Price: 16,00 € : 16,00 €
-+
20
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE(30A)
Specification: 30A
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Price: 25,00 € : 25,00 €
-+
22
P/N (SKU): 9GQ0-150220
Part Name: CABLE,STARTING MOTOR
Price: 18,00 € : 18,00 €
-+
23
P/N (SKU): 9GQA-001002
Part Name: EXHAUST PIPE, STEPPER MOTOR SEAT
Price: 12,00 € : 12,00 €
-+
24
P/N (SKU): 0GQ0-175000
Part Name: STEEPING MOTOR ASSY.
Price: 90,00 € : 90,00 €
-+
25
P/N (SKU): 0GQ0-174000-20000
Part Name: ECU
Specification: BOSCH MSE 6.0
Price: 174,00 € : 174,00 €
-+
26
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Specification: ST4.8×16
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 8010-151000
Part Name: FLASHER
Remarks: LOF
Price: 6,00 € : 6,00 €
-+
27
P/N (SKU): 9GQ1-150340
Part Name: FLASHER
Price: 20,00 € : 20,00 €
-+
28
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQA-001001
Part Name: INLET PIPE, STEPPER MOTOR SEAT
Price: 18,00 € : 18,00 €
-+
30
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY
Price: 4,50 € : 4,50 €
-+
31
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Price: 16,00 € : 16,00 €
-+
32
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Price: 41,00 € : 41,00 €
-+
33
P/N (SKU): 30006-060025810
Part Name: BOLT
Specification: M6X25
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Price: 11,00 € : 11,00 €
-+
35
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Price: 7,50 € : 7,50 €
-+
36
P/N (SKU): 7020-040412
Part Name: COVER,RELAY BOX
Alternative parts: 7020-040412-10000
Price: 6,50 € : 6,50 €
36
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Price: 5,00 € : 5,00 €
-+
37
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER,RELAY BOX COVER
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Price: 7,00 € : 7,00 €
-+
39
P/N (SKU): 30006-060016810
Part Name: BOLT
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 9GQ0-150120
Part Name: LINK CABLE, FOG LIGHT
Specification: LINK CABLE, FOG LIGHT
Price: 11,00 € : 11,00 €
-+
41
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 30006-080014810
Part Name: BOLT
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6×18
Specification: M6×18
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): 30006-060030810
Part Name: BOLT
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): 901F-150900
Part Name: FUEL PUMP
Alternative parts: 901F-150900-10000
Price: 199,00 € : 199,00 €
45
P/N (SKU): 901F-150900-10000
Part Name: FUEL PUMP
Price: 199,00 € : 199,00 €
-+
46
P/N (SKU): 30006-050014810
Part Name: BOLT
Specification: M5×14
Price: 1,50 € : 1,50 €
-+
