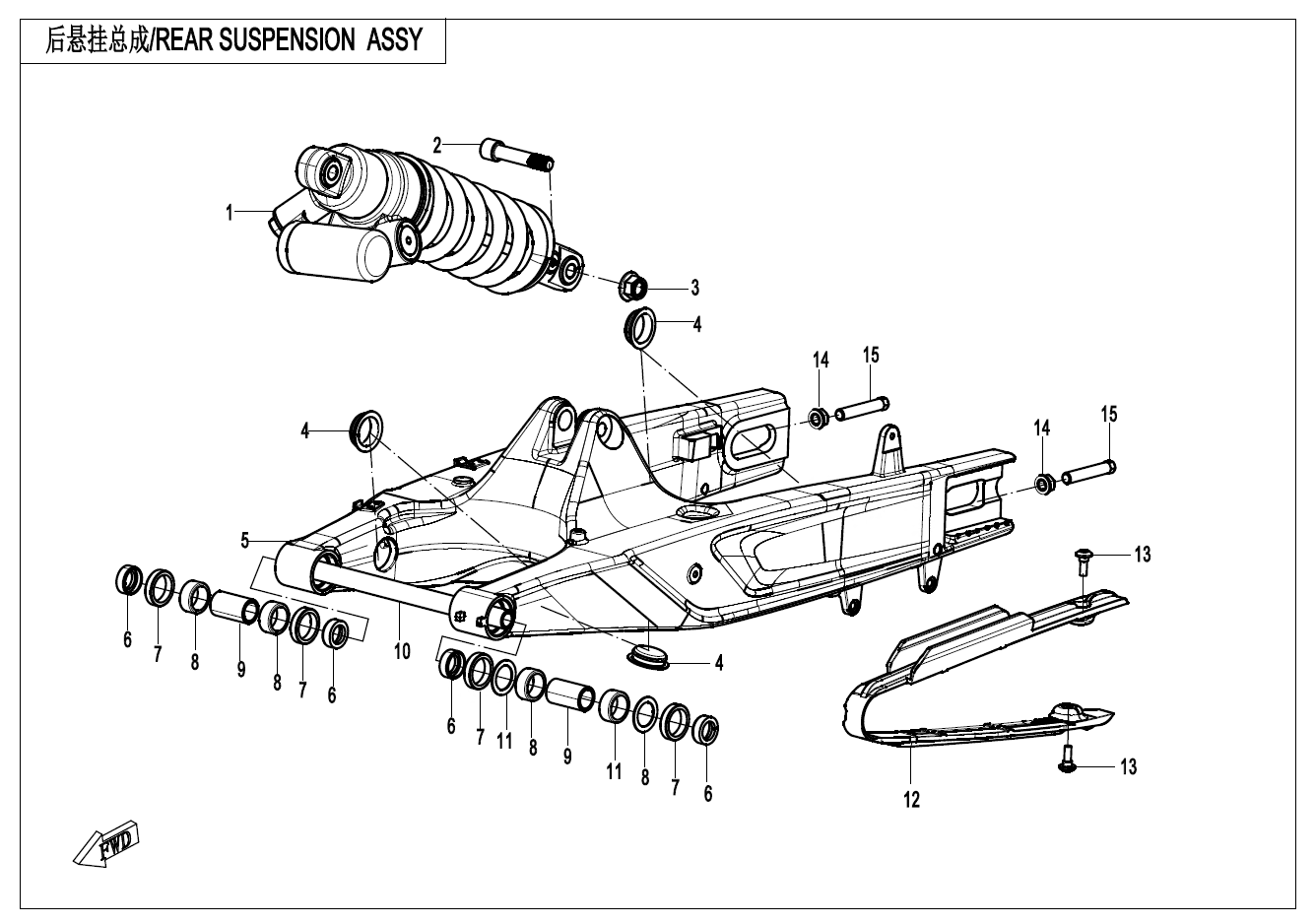

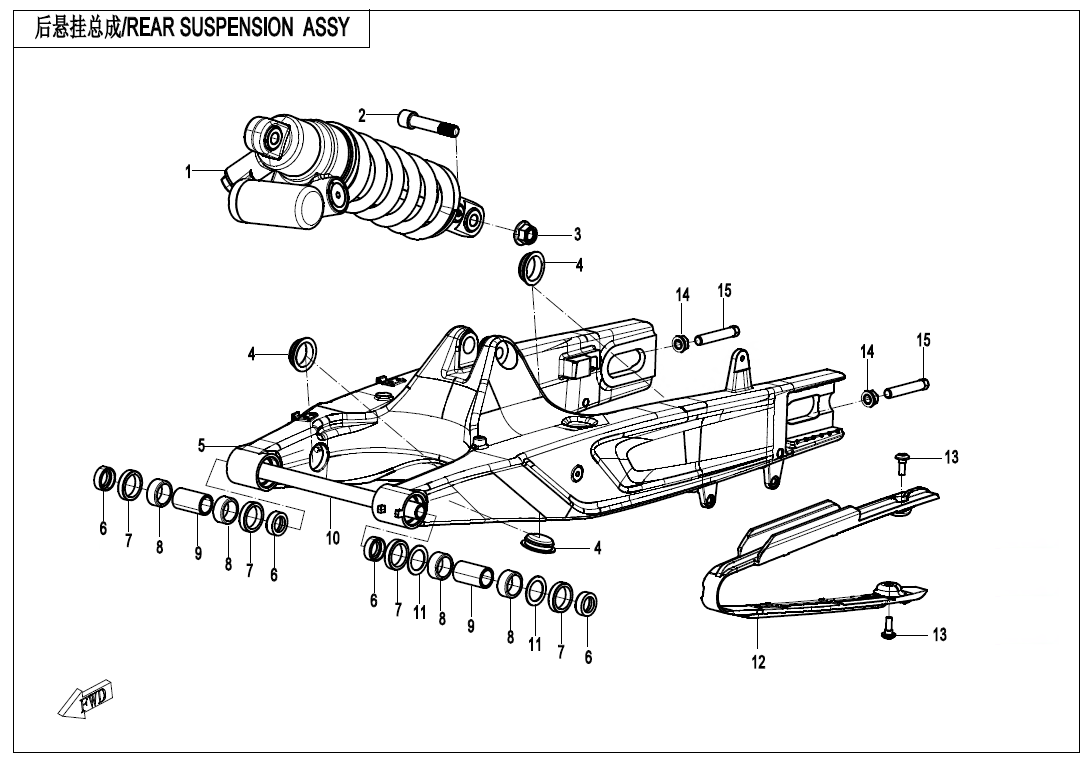

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

1
P/N (SKU): 6WWV-060100-8202-M1
Part Name: REAR SHOCK ABSORBER
Effective: 2025-11-25
Remarks: 870 elevated seat height
Price: 437,00 € : 437,00 €
-+
1
P/N (SKU): 6WWV-060200-8202-M1
Part Name: REAR SHOCK ABSORBER
Effective: 2025-11-25
Remarks: 830 standard seat height
Price: 437,00 € : 437,00 €
-+
2
P/N (SKU): 6NT1-060001
Part Name: REAR SHOCK ABSORBER BOLT
Effective: 2025-11-25
Price: 7,50 € : 7,50 €
-+
3
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-11-25
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 6NT1-060003
Part Name: DUST CAP, SMALL
Effective: 2025-11-25
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 6WWV-060301-8000
Part Name: REAR FORK
Effective: 2025-11-25
Alternative parts: 6WWV-060301-8000-10-0BP00
Price: 278,00 € : 278,00 €
5
P/N (SKU): 6WWV-060301-8000-10-0BP00
Part Name: REAR FORK
Effective: 2026-03-25
Specification: MAUD SPIRIT BLACK
Price: 303,75 € : 303,75 €
-+
6
P/N (SKU): 6WWV-060002-5000
Part Name: REAR SWING ARM BUSHING
Effective: 2025-11-25
Price: 5,00 € : 5,00 €
-+
7
P/N (SKU): 6WWV-060030-5000
Part Name: OIL SEAL
Effective: 2025-11-25
Alternative parts: 6WWV-060030-5000-10
Price: 4,50 € : 4,50 €
-+
8
P/N (SKU): 30403-02200
Part Name: NEEDLE ROLLER BEARING TYPE HK
Effective: 2025-11-25
Specification: 22×28×12
Price: 3,50 € : 3,50 €
-+
9
P/N (SKU): 6WWV-060003-5000
Part Name: LINER, REAR SWING ARM
Effective: 2025-11-25
Price: 8,00 € : 8,00 €
-+
10
P/N (SKU): 6WWV-060001-5001
Part Name: REAR SWING ARM SHAFT
Effective: 2025-11-25
Price: 32,00 € : 32,00 €
-+
11
P/N (SKU): 6WWV-060004-5000
Part Name: REAR SWING ARM WASHER
Effective: 2025-11-25
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 6WWV-060005-5003
Part Name: CHAIN SLIDING PROTECTION
Effective: 2025-11-25
Price: 23,00 € : 23,00 €
-+
13
P/N (SKU): 6WWV-046602-5000
Part Name: INNER HEX STEPPED SCREW M6x14
Effective: 2025-11-25
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6L30-060013
Part Name: CHAIN ADJUSTER LOCK NUT
Effective: 2025-11-25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6L30-060002
Part Name: CHAIN ADJUSTING BOLT
Effective: 2025-11-25
Alternative parts: 6KMV-060002-M500
Price: 4,50 € : 4,50 €
-+
