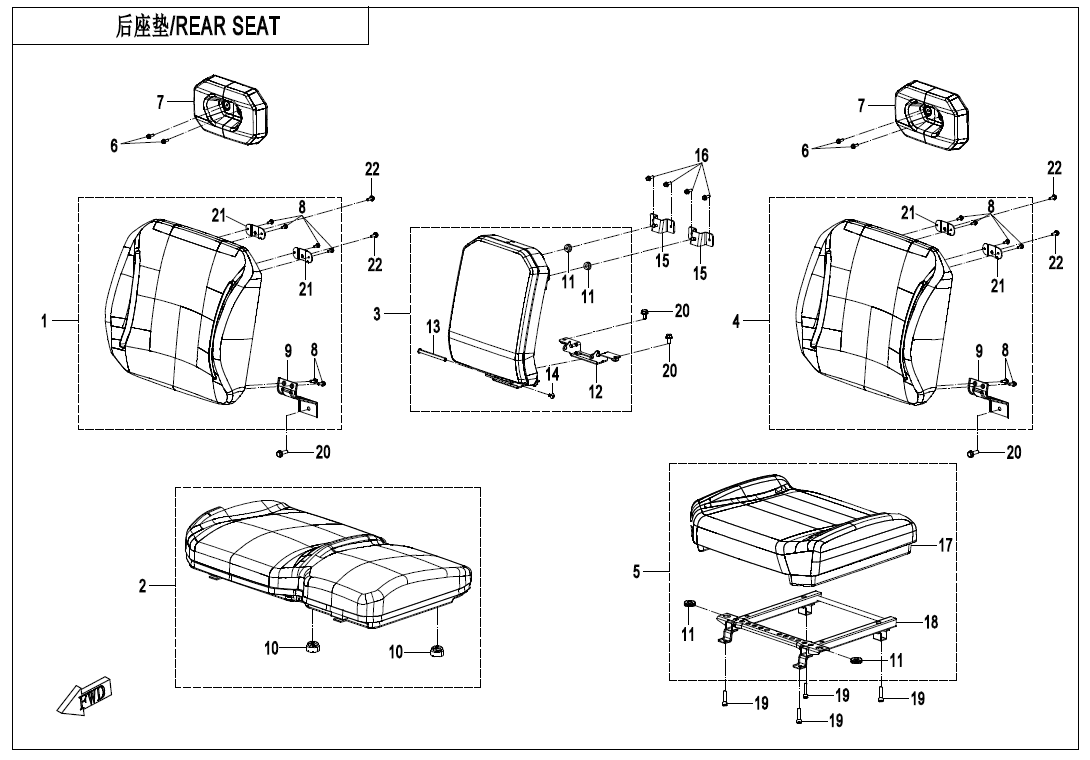

REAR SEAT - F13-2-V1

REAR SEAT - F13-2-V1

No.

1
P/N (SKU): 5SYV-139000-8001
Part Name: REAR RH BACKREST ASSY
Effective: 2024-09-04
Alternative parts:
Price: 76,00 € : 76,00 €
-+
2
P/N (SKU): 5HYV-132000-6000
Part Name: PASSENGER SEAT ASSY
Effective: 2024-09-04
Alternative parts:
Price: 105,00 € : 105,00 €
-+
3
P/N (SKU): 5HYV-134000-6001
Part Name: MIDDLE BACKREST ASSY
Effective: 2024-09-04
Alternative parts:
Price: 70,00 € : 70,00 €
-+
4
P/N (SKU): 5SYV-137000-8001
Part Name: REAR LH BACKREST ASSY
Effective: 2024-09-04
Alternative parts:
Price: 76,00 € : 76,00 €
-+
5
P/N (SKU): 5SYV-132000-8001
Part Name: SEAT PASSENGER
Effective: 2024-09-04
Alternative parts:
Price: 80,00 € : 80,00 €
-+
6
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2024-09-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 5ASV-134000-6000
Part Name: HEAD REST
Effective: 2024-09-04
Alternative parts:
Price: 66,00 € : 66,00 €
-+
8
P/N (SKU): 0010-023010
Part Name: HEX FLANGE BOLT
Effective: 2024-09-04
Alternative parts: 0010-023010-0010
Specification: M6x16
Price: 1,50 € : 1,50 €
9
P/N (SKU): 5SYV-133100-8000
Part Name: REAR BACKREST LOWER BRACKET
Effective: 2024-09-04
Alternative parts:
Price: 7,00 € : 7,00 €
-+
10
P/N (SKU): 7020-130001
Part Name: RUBBER SLEEVE, SEAT
Effective: 2024-09-04
Alternative parts:
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2024-09-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HYV-134100-6001
Part Name: MIDDLE BACKREST BRACKET
Effective: 2024-09-04
Alternative parts:
Price: 4,50 € : 4,50 €
-+
13
P/N (SKU): 5HYV-134000-6000-24
Part Name: PIN SHAFT
Effective: 2024-09-04
Alternative parts:
Price: 3,00 € : 3,00 €
-+
14
P/N (SKU): 5HYV-134000-6000-25
Part Name: TWIN SCREW ASSY
Effective: 2024-09-04
Alternative parts:
Specification: M6×104
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET
Effective: 2024-09-04
Alternative parts:
Price: 6,00 € : 6,00 €
-+
16
P/N (SKU): 30006-060016870
Part Name: BOLT
Effective: 2024-09-04
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5HYV-131200-6001
Part Name: MAIN SEAT ASSY
Effective: 2024-09-04
Alternative parts:
Price: 90,00 € : 90,00 €
-+
18
P/N (SKU): 5SYV-132100-8001
Part Name: REAR SEAT FRAME ASSY
Effective: 2024-09-04
Alternative parts:
Price: 33,00 € : 33,00 €
-+
19
P/N (SKU): 30102-080025810
Part Name: SCREW
Effective: 2024-09-04
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2024-09-04
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 5SYV-131000-8001-20
Part Name: REAR BACKREST UPPER BRACKET
Effective: 2024-09-04
Alternative parts:
Price: 8,00 € : 8,00 €
-+
22
P/N (SKU): 30102-060025870
Part Name: SCREW
Effective: 2024-09-04
Alternative parts:
Specification: M6x25@BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
