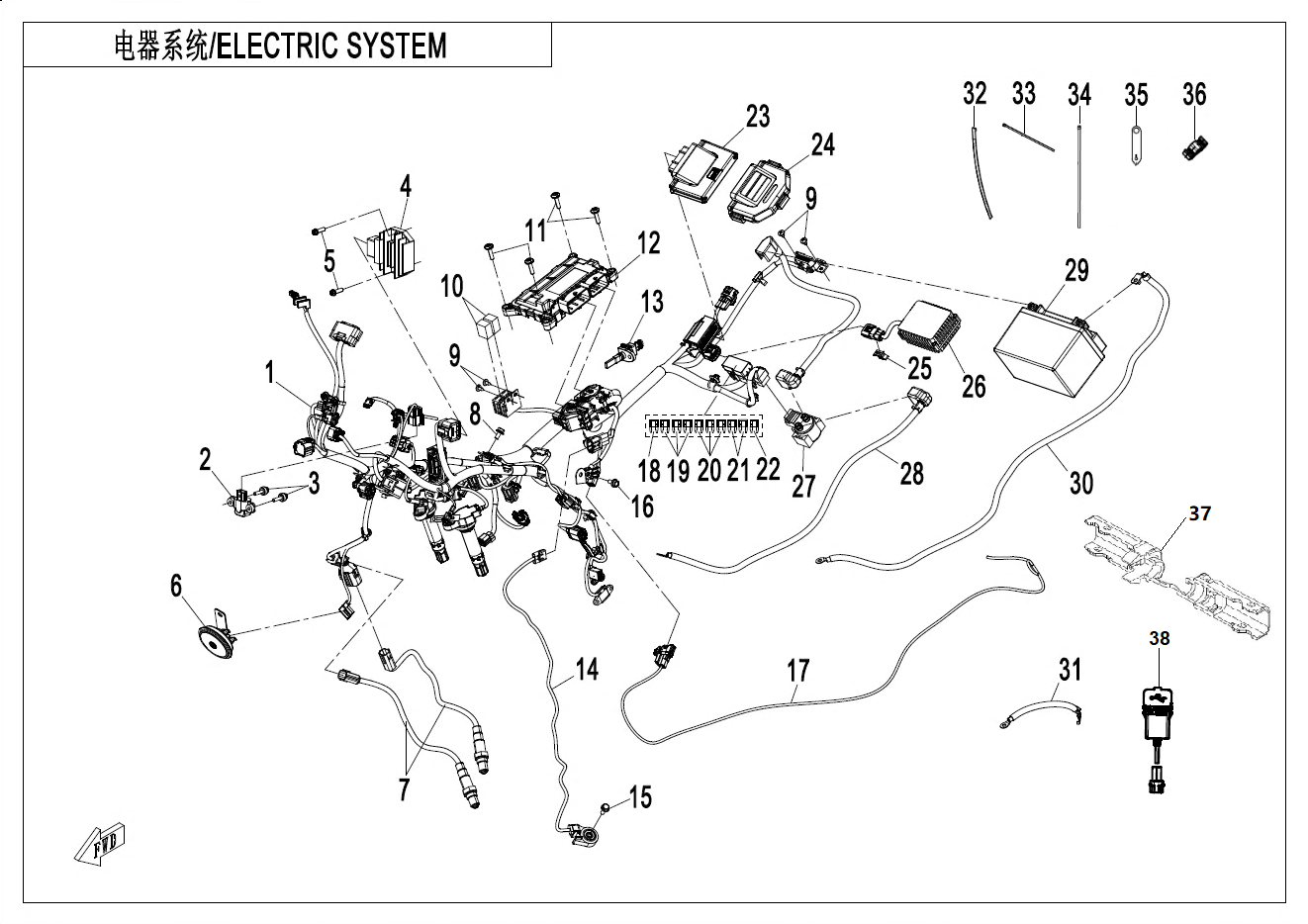

ELECTRIC SYSTEM - F15-A

ELECTRIC SYSTEM - F15-A

No.

01
P/N (SKU): 6KWV-150100-1900-10
Part Name: MAIN CABLE
Effective: 2024-09-14
Price: 354,00 € : 354,00 €
-+
02
P/N (SKU): 6L30-080040
Part Name: 6D SENSOR
Effective: 2024-09-14
Price: 333,00 € : 333,00 €
-+
03
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-09-14
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6WWV-177000-5000-M1
Part Name: REGULATOR
Effective: 2024-09-14
Alternative parts: 6WWV-151000-5A00
Price: 129,00 € : 129,00 €
-+
04
P/N (SKU): 6WWV-151000-5A00
Part Name: REGULATOR
Effective: 2025-11-08
Price: 61,19 € : 61,19 €
-+
05
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-09-14
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
06
P/N (SKU): 6KWV-150600-1000
Part Name: HORN
Effective: 2024-09-14
Alternative parts: 6FIV-150600-7000
Price: 11,00 € : 11,00 €
-+
07
P/N (SKU): 6KMV-004100-M300
Part Name: OXYGEN SENSOR
Effective: 2024-09-14
Specification: 500mm
Price: 71,00 € : 71,00 €
-+
08
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-09-14
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30118-480130010
Part Name: CROSS-RECESSED PAN HEAD TAPPING SCREWS
Effective: 2024-09-14
Specification: ST4.8x13@TR
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): CFCV-150524-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2024-09-14
Price: 4,50 € : 4,50 €
-+
11
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-09-14
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6KWV-001000-1900-12
Part Name: ECM ASSY
Effective: 2024-09-14
Remarks: A2
Specification: UP6.0
Price: 235,00 € : 235,00 €
-+
12
P/N (SKU): 6KWV-001000-1900-11
Part Name: ECM ASSY
Effective: 2024-09-14
Remarks: A3
Specification: UP6.0
Price: 235,00 € : 235,00 €
-+
13
P/N (SKU): 0PW0-173100
Part Name: AIR INTAKE TEMP. SENSOR
Effective: 2024-09-14
Price: 38,00 € : 38,00 €
-+
14
P/N (SKU): 6KWV-151200-1000
Part Name: SIDE STAND SWITCH
Effective: 2024-09-14
Price: 18,00 € : 18,00 €
-+
15
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2024-09-14
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-09-14
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
17
P/N (SKU): 6KWV-150440-1001
Part Name: LICENSE LIGHT AUXILIARY CABLE
Effective: 2024-09-14
Price: 23,00 € : 23,00 €
-+
18
P/N (SKU): 8010-151301
Part Name: 5A FUSE
Effective: 2024-09-14
Specification: 5A
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 806A-151302
Part Name: 10A FUSE
Effective: 2024-09-14
Specification: 10A
Price: 2,50 € : 2,50 €
-+
20
P/N (SKU): 806A-151305
Part Name: 15A FUSE
Effective: 2024-09-14
Specification: 15A
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 806A-151301
Part Name: 7.5A FUSE
Effective: 2024-09-14
Specification: 7.5A
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2024-09-14
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 6KWV-151900-1000
Part Name: VEHICLE CONTROL UNIT
Effective: 2024-09-14
Alternative parts: 6ARV-151900-1000
Price: 201,00 € : 201,00 €
23
P/N (SKU): 6ARV-151900-1000
Part Name: BCM
Effective: 2025-08-08
Specification: IMPORTED BCM
Price: 110,10 € : 110,10 €
-+
23
P/N (SKU): 6WWV-150410-5000-10
Part Name: VEHICLE CONTROL UNIT
Effective: 2025-08-12
Alternative parts: 6ARV-151900-1000
Specification: DOMESTIC BCM
Price: 199,00 € : 199,00 €
-+
24
P/N (SKU): 6WWV-150420-5000-10
Part Name: VEHICLE CONTROL UNIT BUSHING
Effective: 2024-09-14
Price: 6,50 € : 6,50 €
-+
25
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-09-14
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-09-14
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
26
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2024-09-14
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
26
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2024-09-14
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
26
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-09-14
Remarks: TURKEY
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
26
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2024-09-14
Remarks: BRAZIL
Specification: Brazil
Price: 420,00 € : 420,00 €
-+
27
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2024-09-14
Price: 25,00 € : 25,00 €
-+
28
P/N (SKU): 6KWV-150310-1001
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2024-09-14
Price: 17,00 € : 17,00 €
-+
29
P/N (SKU): 31021100
Part Name: BATTERY
Effective: 2024-09-14
Alternative parts: 6GUV-151600-5600-M1
Price: 105,00 € : 105,00 €
30
P/N (SKU): 6KWV-150420-1001
Part Name: BATTERY NEGATIVE CABLE
Effective: 2024-09-14
Price: 22,00 € : 22,00 €
-+
31
P/N (SKU): 6KWV-150430-1000
Part Name: FRAME GROUND CABLE
Effective: 2024-09-14
Price: 10,00 € : 10,00 €
-+
32
P/N (SKU): 0000-000014
Part Name: TIE BAND
Effective: 2024-09-14
Specification: BLACK
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-09-14
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2024-09-14
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2024-09-14
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 6L30-080006
Part Name: WIRE CLIP 2, BRAKE FLUID HOSE
Effective: 2024-09-14
Price: 2,00 € : 2,00 €
-+
37
P/N (SKU): CFCV-156001-2000-M1
Part Name: CABLE PROTECTOR
Effective: 2024-09-14
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): 6KWV-151500-1000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2024-09-14
Remarks: use with 6KWV-040602-1002
Price: 30,00 € : 30,00 €
-+
39
P/N (SKU): 6WWV-150101-5000
Part Name: AMBIENT TEMPERATURE SENSOR
Effective: 2024-10-08
Price: 16,00 € : 16,00 €
-+
