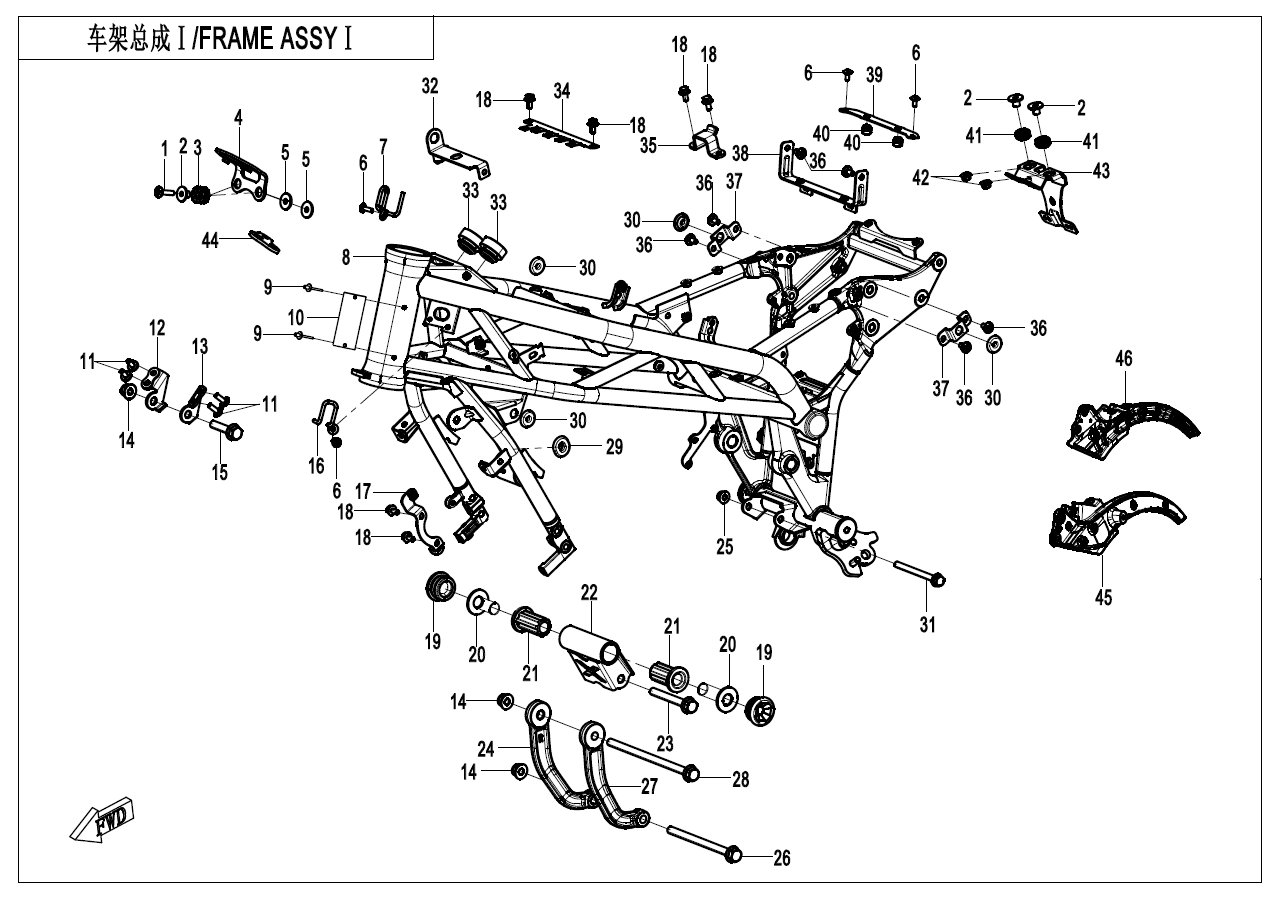

FRAME 1 - F03-1

FRAME 1 - F03-1

No.

1
P/N (SKU): 6WWV-047002-5000
Part Name: INNER HEX SCREW M6x25
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
2
P/N (SKU): 9060-180029
Part Name: RADIATOR SLEEVE TUBE
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2024-12-18
Price: 2,00 € : 2,00 €
-+
4
P/N (SKU): 6KMV-030270-M300
Part Name: DASHBOARD BRACKET
Effective: 2024-12-18
Price: 2,80 € : 2,80 €
-+
5
P/N (SKU): 30306-060142
Part Name: WASHER
Effective: 2024-12-18
Specification: 6
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 6WWV-047102-5000
Part Name: INNER HEX SCREW M5x14
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 6KMV-030008-M300
Part Name: FRAME RH WIRE CLIP
Effective: 2024-12-18
Price: 1,80 € : 1,80 €
-+
8
P/N (SKU): 6KMV-031000-M301-01-0BP00
Part Name: FRONT FRAME ASSEMBLY
Effective: 2024-12-18
Specification: MAUD SPIRIT BLACK
Price: 248,74 € : 248,74 €
-+
9
P/N (SKU): 30902-0420820
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2024-12-18
Alternative parts: 30902-0401320
Specification: 4.2x8
Price: 1,50 € : 1,50 €
10
P/N (SKU): 6KMV-190011-2800-10
Part Name: VIN PLATE
Effective: 2024-12-18
Remarks: TURKEY
Price: 1,80 € : 1,80 €
-+
10
P/N (SKU): 6KMV-190011-2800
Part Name: VIN PLATE
Effective: 2024-12-18
Price: 1,80 € : 1,80 €
-+
11
P/N (SKU): 6WWV-046802-5000
Part Name: INNER HEX SCREW M6x16
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6KMV-030220-M300
Part Name: HEADLIGHT RH BRACKET
Effective: 2024-12-18
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 6KMV-030210-M300
Part Name: HEADLIGHT LH BRACKET
Effective: 2024-12-18
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-12-18
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30006-102045810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-18
Alternative parts: F03V-100001-1000
Specification: M10×1.25×45
Price: 2,00 € : 2,00 €
16
P/N (SKU): 6KMV-030007-M300
Part Name: FRAME LH WIRE CLIP
Effective: 2024-12-18
Price: 1,80 € : 1,80 €
-+
17
P/N (SKU): 6KMV-030014-M300
Part Name: RADIATOR RH GUARD LOWER BRACKET
Effective: 2024-12-18
Price: 2,70 € : 2,70 €
-+
18
P/N (SKU): 30006-060012870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-18
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6GU#-140097-6000
Part Name: FRAME FRONT DECO CLASP
Effective: 2024-12-18
Price: 2,50 € : 2,50 €
-+
20
P/N (SKU): 6KMV-030030-2000
Part Name: T-TYPE BUSHING ASSY
Effective: 2024-12-18
Price: 5,50 € : 5,50 €
-+
21
P/N (SKU): 6KMV-030003-2000
Part Name: FRONT DAMPING RUBBER, ENGINE
Effective: 2024-12-18
Price: 7,50 € : 7,50 €
-+
22
P/N (SKU): 6KMV-030010-2000
Part Name: FRONT CONNECTING BRACKET, ENGINE
Effective: 2024-12-18
Price: 11,00 € : 11,00 €
-+
23
P/N (SKU): 30006-102080810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-18
Specification: M10x1.25x80
Price: 2,50 € : 2,50 €
-+
24
P/N (SKU): 6KMV-030002-2001
Part Name: RH BRACKET, ENGINE
Effective: 2024-12-18
Price: 22,00 € : 22,00 €
-+
25
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-12-18
Specification: M8
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30006-102140810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-18
Specification: M10×1.25×140
Price: 3,00 € : 3,00 €
-+
27
P/N (SKU): 6KMV-030001-2001
Part Name: LH BRACKET, ENGINE
Effective: 2024-12-18
Price: 22,00 € : 22,00 €
-+
28
P/N (SKU): 30006-102180810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-18
Specification: M10x1.25x180
Price: 5,00 € : 5,00 €
-+
29
P/N (SKU): 6KWV-041114-1000
Part Name: RUBBER HEAD
Effective: 2024-12-18
Price: 2,00 € : 2,00 €
-+
30
P/N (SKU): 6KMV-041112-3000
Part Name: M6 RUBBER SLEEVE
Effective: 2024-12-18
Price: 3,50 € : 3,50 €
-+
31
P/N (SKU): 30006-080090810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-18
Specification: M8×90
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 6KMV-030250-M301
Part Name: ABS BRACKET
Effective: 2024-12-18
Price: 4,80 € : 4,80 €
-+
33
P/N (SKU): 6AQV-120002-7100
Part Name: RUBBER DAMPER
Effective: 2024-12-18
Price: 2,00 € : 2,00 €
-+
34
P/N (SKU): 6KMV-030011-M300
Part Name: CABLE CONNECTOR BRACKET
Effective: 2024-12-18
Price: 2,70 € : 2,70 €
-+
35
P/N (SKU): 6KMV-030010-M300
Part Name: FRONT SEAT LIMIT PLATE
Effective: 2024-12-18
Price: 2,70 € : 2,70 €
-+
36
P/N (SKU): 6KM#-040702-8000
Part Name: SCREW
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 6KMV-030006-M300
Part Name: SIDE COVER REAR BRACKET
Effective: 2024-12-18
Price: 1,80 € : 1,80 €
-+
38
P/N (SKU): 6KMV-030360-M300
Part Name: BATTERY LOWER BRACKET
Effective: 2024-12-18
Price: 4,20 € : 4,20 €
-+
39
P/N (SKU): 6KMV-030009-M300
Part Name: BATTERY PRESS PLATE
Effective: 2024-12-18
Price: 3,50 € : 3,50 €
-+
40
P/N (SKU): 6WWV-045801-5000
Part Name: RUBBER
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 6WWV-030019-5000
Part Name: RUBBER BUSHING
Effective: 2024-12-18
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-12-18
Specification: M6
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 6AQV-030370-7100
Part Name: TAIL LIGHT BRACKET
Effective: 2024-12-18
Alternative parts: 6AQV-030370-7101
Price: 9,00 € : 9,00 €
44
P/N (SKU): 6AQV-033098-7100
Part Name: DEAD BOLT PLATE
Effective: 2024-12-18
Price: 2,00 € : 2,00 €
-+
45
P/N (SKU): 6KMV-035000-M300
Part Name: REAR LH FENDER BRACKET
Effective: 2024-12-18
Price: 83,40 € : 83,40 €
-+
46
P/N (SKU): 6KMV-036000-M300
Part Name: REAR RH FENDER BRACKET
Effective: 2024-12-18
Price: 83,40 € : 83,40 €
-+
