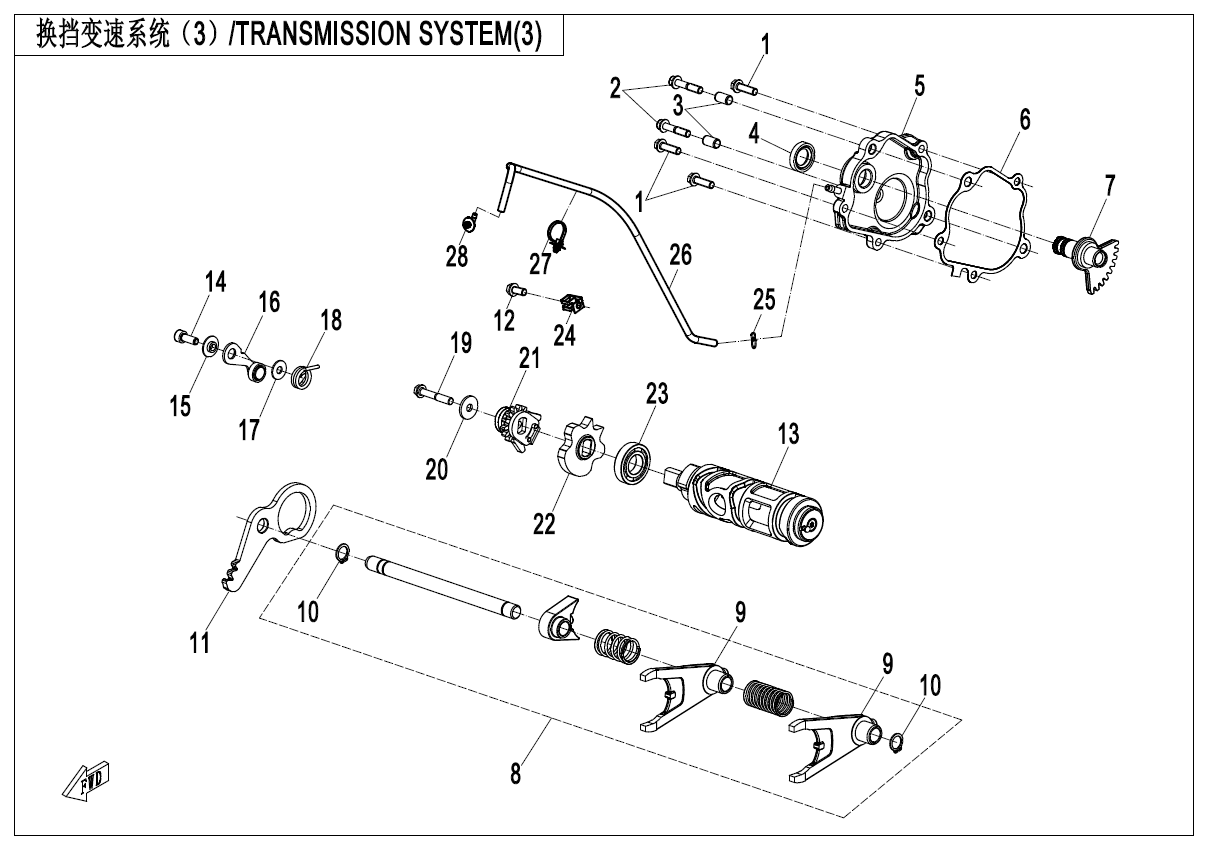

TRANSMISSION SYSTEM(3) - E06-3-V2

TRANSMISSION SYSTEM(3) - E06-3-V2

No.

01
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2024-06-04
Alternative parts: 0JWV-011107-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0010-070003-00002
Part Name: BOLT
Effective: 2024-06-04
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2024-06-04
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0180-065002
Part Name: OIL SEAL
Effective: 2024-06-04
Specification: SD15x25x5
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0JWV-065100-3000
Part Name: GEARSHIFT COVER ASSY
Effective: 2024-06-04
Price: 21,00 € : 21,00 €
-+
06
P/N (SKU): 0JWV-065003-3000
Part Name: GEARSHIFT SECTOR GEAR HOUSING GASKET
Effective: 2024-06-04
Price: 3,00 € : 3,00 €
-+
07
P/N (SKU): 0GR0-065100
Part Name: GEARSHIFT DRIVE SECTOR GEAR ASSY
Effective: 2024-06-04
Price: 24,00 € : 24,00 €
-+
08
P/N (SKU): 0JWV-063000-3000
Part Name: GEARSHIFT FORK ASSY
Effective: 2024-06-04
Price: 38,00 € : 38,00 €
-+
09
P/N (SKU): 0800-063004
Part Name: SHIFT FORK, RH
Effective: 2024-06-04
Price: 13,00 € : 13,00 €
-+
10
P/N (SKU): 30801-01205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2024-06-04
Specification: 12
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0JWV-063001-3000
Part Name: PARKING SWING ARM
Effective: 2024-06-04
Alternative parts: 0JWV-063001-3001
Price: 12,00 € : 12,00 €
-+
12
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2024-06-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0JWV-064000-3001
Part Name: SHIFT DRUM ASSY
Effective: 2024-06-04
Alternative parts: 0JWV-064000-3002
Price: 32,00 € : 32,00 €
-+
13
P/N (SKU): 0JWV-064000-3002
Part Name: SHIFT HUB ASSY
Effective: 2025-11-05
Price: 26,40 € : 26,40 €
-+
14
P/N (SKU): 30102-060016810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2024-06-04
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0700-064003-00001
Part Name: GEARSHIFT SWING ARM SLEEVE
Effective: 2024-06-04
Price: 4,50 € : 4,50 €
-+
16
P/N (SKU): 0JWV-068100-3000
Part Name: POSITIONING SWING ARM ASSY
Effective: 2024-06-04
Price: 12,00 € : 12,00 €
-+
17
P/N (SKU): 0700-064001
Part Name: WASHER
Effective: 2024-06-04
Specification: 6.3x16.3x1.2
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 0JWV-068001-3000
Part Name: LOCATING SPRING
Effective: 2024-06-04
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0010-013008-0010
Part Name: BOLT M6x35
Effective: 2024-06-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0180-065206-00001
Part Name: GASKET
Effective: 2024-06-04
Specification: 6.2x22x2
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 0GR0-065200
Part Name: DRIVEN SECTOR GEAR ASSY
Effective: 2024-06-04
Price: 29,00 € : 29,00 €
-+
22
P/N (SKU): 0JWV-060005-3000
Part Name: GEARSHIFT DRUM CAM
Effective: 2024-06-04
Price: 7,50 € : 7,50 €
-+
23
P/N (SKU): 30400-01707
Part Name: ROLLING BEARING
Effective: 2024-06-04
Price: 4,50 € : 4,50 €
-+
24
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2024-06-04
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 30601-108010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2024-06-04
Specification: A8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9AYV-310001-8500
Part Name: FRONT GEAR CASE BREATHER HOSE
Effective: 2024-06-04
Remarks: ONLY FOR MUD WITHOUT ABS
Price: 4,00 € : 4,00 €
-+
26
P/N (SKU): 9010-310001
Part Name: FRONT GEAR CASE BREATHER HOSE
Effective: 2024-11-27
Alternative parts: 9010-310001-1000
Price: 5,00 € : 5,00 €
-+
27
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2024-06-04
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 9AWV-315001-8000
Part Name: BREATHER HOSE CONNECTOR
Effective: 2024-06-04
Price: 2,00 € : 2,00 €
-+
