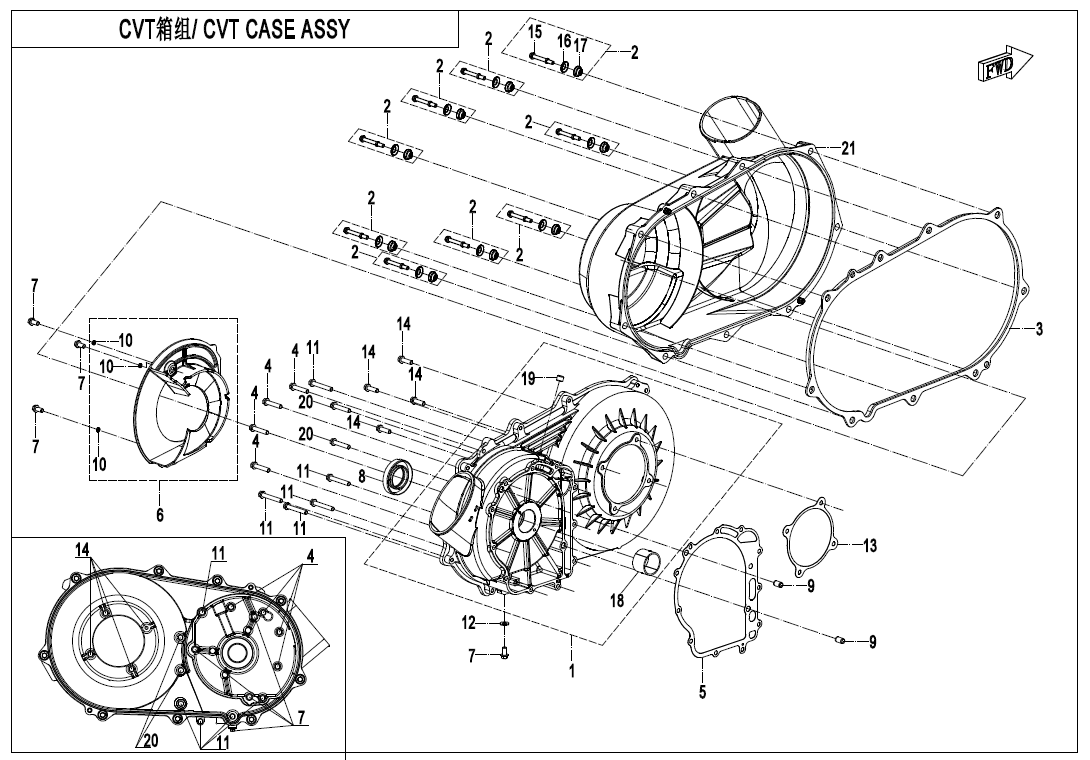

CVT CASE ASSY. - E01-3-V2

CVT CASE ASSY. - E01-3-V2

No.

01
P/N (SKU): 0GS0-013100-20021
Part Name: CVT CASE
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: MARK B
Price: 134,00 € : 134,00 €
01
P/N (SKU): 0GS0-013100-20011
Part Name: CVT CASE
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: MARK A
Price: 134,00 € : 134,00 €
02
P/N (SKU): 0GSV-0130A0
Part Name: CVT COVER BOLT ASSY
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
03
P/N (SKU): 0GR0-013003-10000
Part Name: GASKET, CVT COVER
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
04
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0GR0-013001-20000
Part Name: CVT CASE STEEL GASKET
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
-+
06
P/N (SKU): 0GS0-013010
Part Name: WINDSHIELD ASSY
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Price: 12,00 € : 12,00 €
07
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL
Effective: 2024-04-25
Remarks: null
Alternative parts: 0JYV-013103-5000-M1
Specification: 32X55X10
Price: 8,50 € : 8,50 €
-+
09
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0GR0-013012
Part Name: BUSHING
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
11
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0010-060009
Part Name: WASHER 6
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: 6
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 0800-012002-10000
Part Name: CVT CASE GASKET_2
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
14
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2024-04-25
Remarks: null
Alternative parts: 0JWV-011107-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
15
P/N (SKU): 0GSV-013004-3000
Part Name: CVT COVER BOLT 1
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 0800-021102-10000
Part Name: RUBBER WASHER
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0800-021103
Part Name: RUBBER WASHER CAP
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 0JY0-013102-00011
Part Name: PLAIN BEARING, CVT
Effective: 2024-04-25
Remarks: null
Alternative parts: 0JY0-013102-00012
Specification: RED
Price: 9,50 € : 9,50 €
-+
18
P/N (SKU): 0JY0-013102-00021
Part Name: PLAIN BEARING, CVT
Effective: 2024-04-25
Remarks: null
Alternative parts: 0JY0-013102-00022
Specification: BLUE
Price: 9,50 € : 9,50 €
19
P/N (SKU): 01A0-012010-00001
Part Name: SCREW
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0010-080012-0010
Part Name: BOLT M6x32
Effective: 2024-04-25
Remarks: null
Alternative parts: null
Specification: M6x32
Price: 1,50 € : 1,50 €
21
P/N (SKU): 0GRV-013202-6001
Part Name: CVT CASE COVER
Effective: 2024-04-25
Alternative parts: 0GRV-013202-6002
Specification: null
Price: 82,00 € : 82,00 €
21
P/N (SKU): 0GRV-013202-6002
Part Name: CVT COVER
Effective: 2025-08-12
Remarks: null
Alternative parts: null
Specification: null
Price: 33,19 € : 33,19 €
