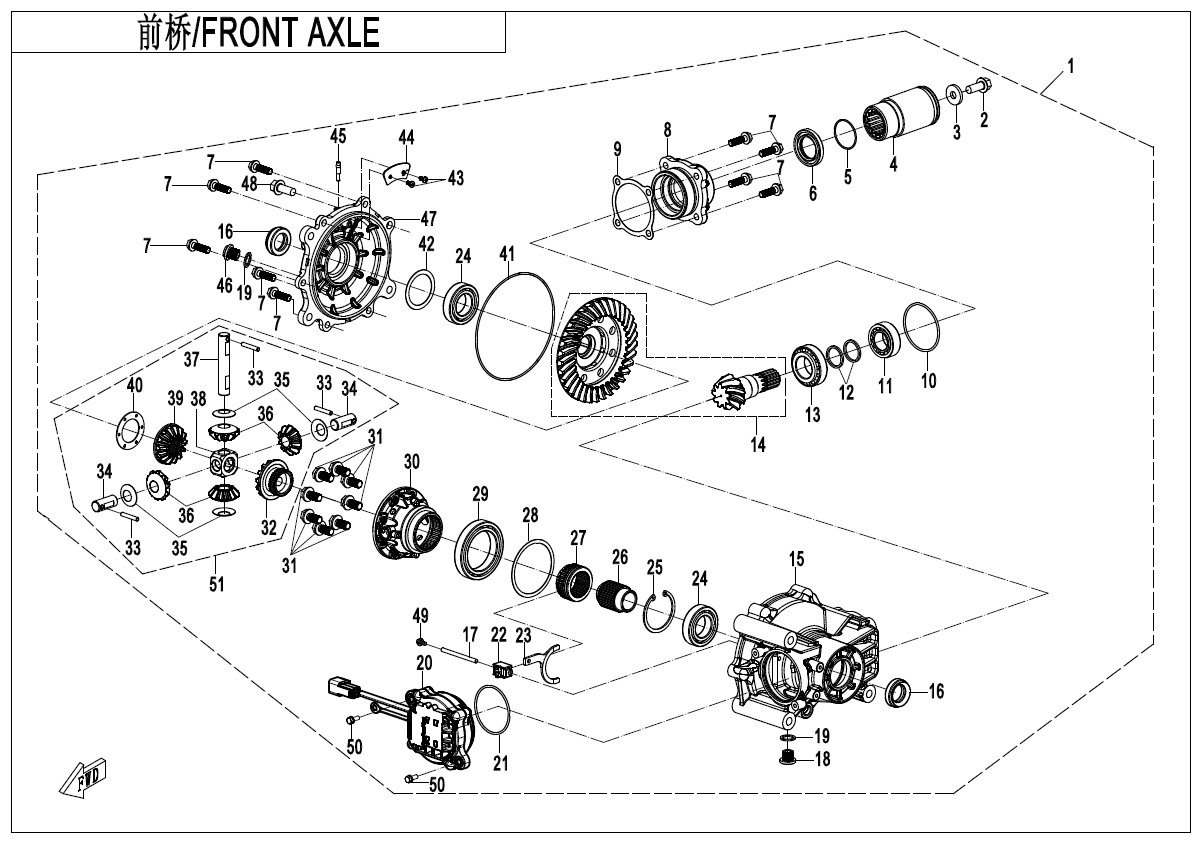

FRONT AXLE - F31 | 2025, ATV, CF1000ATR-2(WITH ABS) |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

1

P/N (SKU): Q890-310000-30000

Part Name: FRONT GEAR CASE ASSY

Effective: 2024-11-12

Alternative parts: Q890-310000-30001

Price: 698,00 € : 698,00 €

1

P/N (SKU): Q890-310000-30001

Part Name: FRONT GEAR CASE ASSY

Effective: 2024-11-12

Alternative parts:

Price: 429,00 € : 429,00 €

2

P/N (SKU): 0GR0-062203

Part Name: BOLT

Effective: 2024-11-12

Alternative parts:

Specification: M10Ã1.25Ã20

Price: 2,00 € : 2,00 €

3

P/N (SKU): 0GR0-062204

Part Name: WASHER

Effective: 2024-11-12

Alternative parts:

Specification: 10x27.5x4

Price: 2,50 € : 2,50 €

4

P/N (SKU): 9CR6-300201-10000

Part Name: DRIVE SLEEVE, ENGINE

Effective: 2024-11-12

Alternative parts: 0GRV-331002-5000

Price: 29,00 € : 29,00 €

5

P/N (SKU): 0800-062205

Part Name: O-RING

Effective: 2024-11-12

Alternative parts:

Specification: 25x2

Price: 2,00 € : 2,00 €

6

P/N (SKU): 0800-062204

Part Name: OIL SEAL

Effective: 2024-11-12

Alternative parts:

Specification: 35x50x7

Price: 6,50 € : 6,50 €

7

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8Ã28

Effective: 2024-11-12

Alternative parts: 0JYA-062104

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

8

P/N (SKU): Q830-311002-00001

Part Name: BEARING SEAT

Effective: 2024-11-12

Alternative parts:

Price: 21,00 € : 21,00 €

9

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER

Effective: 2024-11-12

Alternative parts:

Specification: T=0.20

Price: 2,00 € : 2,00 €

9

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER

Effective: 2024-11-12

Alternative parts:

Specification: T=0.30

Price: 2,00 € : 2,00 €

10

P/N (SKU): Q830-310006-10000

Part Name: O-RING

Effective: 2024-11-12

Alternative parts:

Specification: 55Ã2.5

Price: 3,00 € : 3,00 €

11

P/N (SKU): 30409-02500

Part Name: TAPERED ROLLER BEARING

Effective: 2024-11-12

Alternative parts:

Specification: GB/T297 33005_25Ã47Ã17

Price: 19,00 € : 19,00 €

12

P/N (SKU): Q830-311003-00100

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.10

Price: 1,50 € : 1,50 €

12

P/N (SKU): Q830-311003-00200

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.20

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00300

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.30

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00400

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.40

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00500

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts: Q830-311003-00001-00500

Specification: T=2.42

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00600

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.44

Price: 1,50 € : 1,50 €

12

P/N (SKU): Q830-311003-00700

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts: Q830-311003-00001-00700

Specification: T=2.46

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00800

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.48

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00900

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.50

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01000

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.60

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01100

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.70

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01200

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.80

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01300

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=2.90

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01400

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-11-12

Alternative parts:

Specification: T=3.00

Price: 2,00 € : 2,00 €

13

P/N (SKU): 30409-03000

Part Name: TAPERED ROLLER BEARING

Effective: 2024-11-12

Alternative parts:

Specification: GB/T297 32006_30Ã55Ã17

Price: 17,00 € : 17,00 €

14

P/N (SKU): Q890-3130A0

Part Name: BEVEL GEAR, FRONT GEAR CASE

Effective: 2024-11-12

Alternative parts: Q890-3100A0

Price: 152,00 € : 152,00 €

15

P/N (SKU): Q890-310001

Part Name: FRONT GEAR CASE

Effective: 2024-11-12

Alternative parts: Q890-310001-00001

Price: 80,00 € : 80,00 €

15

P/N (SKU): Q890-310001-00001

Part Name: FRONT GEAR CASE

Effective: 2024-11-12

Alternative parts:

Price: 69,00 € : 69,00 €

16

P/N (SKU): 0180-311001

Part Name: OIL SEAL

Effective: 2024-11-12

Alternative parts:

Specification: 24x38x8

Price: 4,50 € : 4,50 €

17

P/N (SKU): Q830-310003

Part Name: PIN SHAFT

Effective: 2024-11-12

Alternative parts:

Price: 3,50 € : 3,50 €

18

P/N (SKU): 0180-332100

Part Name: MAGNETIC DRAIN BOLT M14Ã1.25Ã12

Effective: 2024-11-12

Alternative parts:

Specification: M14x1.25x12

Price: 5,50 € : 5,50 €

19

P/N (SKU): 0180-011006

Part Name: GASKET 14

Effective: 2024-11-12

Alternative parts:

Specification: 14

Price: 1,50 € : 1,50 €

20

P/N (SKU): 9AWV-152900-8000

Part Name: ELECTRICAL FRONT GEAR CASE MOTOR

Effective: 2024-11-12

Alternative parts:

Price: 178,00 € : 178,00 €

21

P/N (SKU): Q830-310012-10000

Part Name: O-SEAL RING 67.5Ã2

Effective: 2024-11-12

Alternative parts:

Specification: 67.5x2

Price: 2,50 € : 2,50 €

22

P/N (SKU): Q890-310010

Part Name: BLOCK ASSY

Effective: 2024-11-12

Alternative parts:

Price: 24,00 € : 24,00 €

23

P/N (SKU): Q890-310003

Part Name: SHIFT FORK

Effective: 2024-11-12

Alternative parts:

Price: 3,00 € : 3,00 €

24

P/N (SKU): 30400-03001

Part Name: ROLLER BEARING

Effective: 2024-11-12

Alternative parts:

Specification: 30Ã55Ã13

Price: 10,00 € : 10,00 €

25

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE

Effective: 2024-11-12

Alternative parts:

Specification: BLACK

Price: 2,50 € : 2,50 €

26

P/N (SKU): Q830-310014

Part Name: SPLINE SLEEVE

Effective: 2024-11-12

Alternative parts:

Price: 19,00 € : 19,00 €

27

P/N (SKU): Q830-310013

Part Name: SPLINE BUSHING

Effective: 2024-11-12

Alternative parts:

Price: 16,00 € : 16,00 €

28

P/N (SKU): Q830-310015-00100

Part Name: ADJUSTING WASHER 79.5x68

Effective: 2024-11-12

Alternative parts:

Specification: T=0.10

Price: 2,00 € : 2,00 €

28

P/N (SKU): Q830-310015-00200

Part Name: ADJUSTING WASHER 79.5x68

Effective: 2024-11-12

Alternative parts:

Specification: T=0.20

Price: 2,00 € : 2,00 €

28

P/N (SKU): Q830-310015-00300

Part Name: ADJUSTING WASHER 79.5x68

Effective: 2024-11-12

Alternative parts:

Specification: T=0.30

Price: 2,00 € : 2,00 €

28

P/N (SKU): Q830-310015-00400

Part Name: ADJUSTING WASHER 79.5x68

Effective: 2024-11-12

Alternative parts:

Specification: T=0.40

Price: 2,00 € : 2,00 €

28

P/N (SKU): Q830-310015-00500

Part Name: ADJUSTING WASHER 79.5x68

Effective: 2024-11-12

Alternative parts:

Specification: T=0.50

Price: 2,00 € : 2,00 €

28

P/N (SKU): Q830-310015-00600

Part Name: ADJUSTING WASHER 79.5x68

Effective: 2024-11-12

Alternative parts:

Specification: T=1.00

Price: 2,00 € : 2,00 €

29

P/N (SKU): 30400-05500

Part Name: ROLLER BEARING

Effective: 2024-11-12

Alternative parts:

Specification: 61911

Price: 24,00 € : 24,00 €

30

P/N (SKU): Q890-313002

Part Name: DIFFERENTIAL HOUSING

Effective: 2024-11-12

Alternative parts:

Price: 54,00 € : 54,00 €

31

P/N (SKU): 0181-313100

Part Name: BOLT M10x1.25x22

Effective: 2024-11-12

Alternative parts: 0181-313100-0010

Price: 2,00 € : 2,00 €

32

P/N (SKU): Q830-313004

Part Name: CV SHAFT GEAR

Effective: 2024-11-12

Alternative parts:

Price: 47,00 € : 47,00 €

33

P/N (SKU): 30906-0503000

Part Name: PIN 5Ã30

Effective: 2024-11-12

Alternative parts:

Specification: 5x30

Price: 1,50 € : 1,50 €

34

P/N (SKU): Q820-333005

Part Name: SHORT PLANET GEAR SHAFT

Effective: 2024-11-12

Alternative parts:

Price: 3,50 € : 3,50 €

35

P/N (SKU): 0181-313011

Part Name: WEARING PAD

Effective: 2024-11-12

Alternative parts:

Price: 2,00 € : 2,00 €

36

P/N (SKU): 0180-313003-00004

Part Name: DIFFERENTIAL CENTER GEAR

Effective: 2024-11-12

Alternative parts:

Specification: SURFACE PEENING TREATMENT, THE INNER HOLE TOLERANCE INCREASING

Price: 12,00 € : 12,00 €

37

P/N (SKU): Q820-333006

Part Name: PLANET GEAR SHAFT

Effective: 2024-11-12

Alternative parts:

Price: 7,50 € : 7,50 €

38

P/N (SKU): Q820-333008

Part Name: CROSS BUSHING

Effective: 2024-11-12

Alternative parts:

Price: 11,00 € : 11,00 €

39

P/N (SKU): 0180-313006-00001

Part Name: DIFFERENTIAL DRIVEN GEAR

Effective: 2024-11-12

Alternative parts:

Price: 24,00 € : 24,00 €

40

P/N (SKU): Q800-313005-00100

Part Name: GEAR WASHER 33.5Ã51.5

Effective: 2024-11-12

Alternative parts:

Specification: T=1.00

Price: 2,00 € : 2,00 €

40

P/N (SKU): Q800-313005-00200

Part Name: GEAR WASHER 33.5Ã51.5

Effective: 2024-11-12

Alternative parts:

Specification: T=1.20

Price: 2,00 € : 2,00 €

41

P/N (SKU): 0180-310005

Part Name: O-RING

Effective: 2024-11-12

Alternative parts:

Specification: 141Ã2.4

Price: 2,00 € : 2,00 €

42

P/N (SKU): Q830-310009-00100

Part Name: ADJUSTING WASHER 54.5x43 T=0.10

Effective: 2024-11-12

Alternative parts:

Specification: T=0.10

Price: 1,50 € : 1,50 €

42

P/N (SKU): Q830-310009-00200

Part Name: ADJUSTING WASHER 54.5x43 T=0.20

Effective: 2024-11-12

Alternative parts:

Specification: T=0.20

Price: 1,50 € : 1,50 €

42

P/N (SKU): Q830-310009-00300

Part Name: ADJUSTING WASHER 54.5x43 T=0.30

Effective: 2024-11-12

Alternative parts:

Specification: T=0.30

Price: 1,50 € : 1,50 €

42

P/N (SKU): Q830-310009-00400

Part Name: ADJUSTING WASHER 54.5x43 T=0.40

Effective: 2024-11-12

Alternative parts:

Specification: T=0.40

Price: 1,50 € : 1,50 €

42

P/N (SKU): Q830-310009-00500

Part Name: ADJUSTING WASHER 54.5x43 T=0.50

Effective: 2024-11-12

Alternative parts:

Specification: T=0.50

Price: 1,50 € : 1,50 €

42

P/N (SKU): Q830-310009-00600

Part Name: ADJUSTING WASHER 54.5x43 T=1.00

Effective: 2024-11-12

Alternative parts:

Specification: T=1.00

Price: 1,50 € : 1,50 €

43

P/N (SKU): 30105-040008410

Part Name: SCREW M4Ã8

Effective: 2024-11-12

Alternative parts:

Specification: M4x8@TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

44

P/N (SKU): Q820-330007-10000

Part Name: OIL BAFFLE

Effective: 2024-11-12

Alternative parts:

Price: 2,00 € : 2,00 €

45

P/N (SKU): 0180-311004-0020

Part Name: BREATHER HOSE JOINT

Effective: 2024-11-12

Alternative parts:

Price: 1,50 € : 1,50 €

46

P/N (SKU): 0180-021008-00001

Part Name: BOLT

Effective: 2024-11-12

Alternative parts:

Specification: M14Ã1.25Ã12

Price: 2,00 € : 2,00 €

47

P/N (SKU): Q890-310002

Part Name: FRONT GEAR CASE COVER

Effective: 2024-11-12

Alternative parts:

Price: 25,00 € : 25,00 €

48

P/N (SKU): 0180-330004-0010

Part Name: BOLT M10x1.25x25

Effective: 2024-11-12

Alternative parts: 30001-102025810

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

49

P/N (SKU): 30130-080010810

Part Name: SCREW

Effective: 2024-11-12

Alternative parts:

Specification: M8x10@TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

50

P/N (SKU): 0010-023008-0010

Part Name: BOLT M6x18

Effective: 2024-11-12

Alternative parts: 0010-023008-00001

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

51

P/N (SKU): Q830-3130A0

Part Name: DIFFERENTIAL ASSY

Effective: 2024-11-12

Alternative parts:

Price: 83,00 € : 83,00 €
