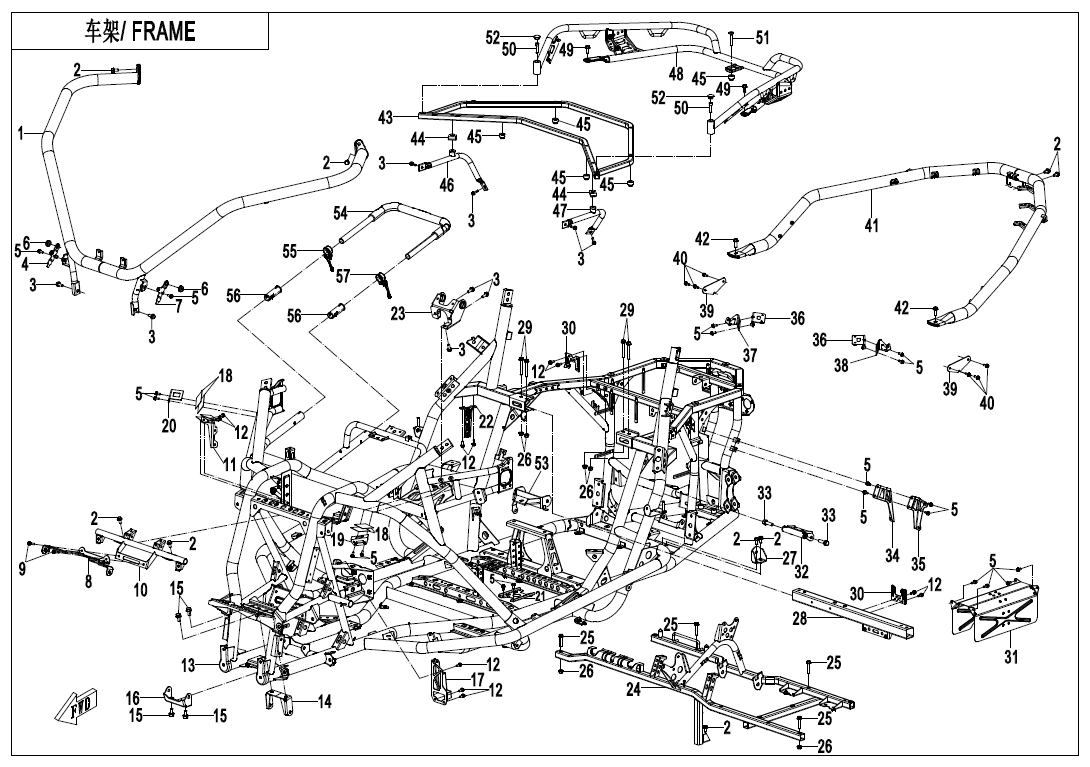

FRAME - F03-V2

FRAME - F03-V2

No.

1
P/N (SKU): 5BY0-030300-0B000
Part Name: FRONT BUMPER ASSY
Effective: 2024-03-30
Alternative parts:
Specification: MATTE BLACK
Price: 212,00 € : 212,00 €
-+
2
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 5BY0-030940
Part Name: BRACKET, FRONT RH REFLECTOR
Effective: 2024-03-30
Alternative parts:
Price: 3,50 € : 3,50 €
-+
5
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
6
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2024-03-30
Alternative parts:
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 5BY0-030930
Part Name: BRACKET, FRONT LH REFLECTOR
Effective: 2024-03-30
Alternative parts:
Price: 3,50 € : 3,50 €
-+
8
P/N (SKU): 5BY0-030090
Part Name: FRONT INNER PLATIC LOCK PANEL MOUNTING BRACKET
Effective: 2024-03-30
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 12,00 € : 12,00 €
-+
9
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5BY0-030400
Part Name: HEADLIGHT BRACKET ASSY
Effective: 2024-03-30
Alternative parts:
Specification: BLACK
Price: 33,00 € : 33,00 €
-+
11
P/N (SKU): 5BY0-030060
Part Name: SECONDARY BOTTLE BRACKET
Effective: 2024-03-30
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 7,50 € : 7,50 €
-+
12
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 5BYV-031000-A103
Part Name: FRAME ASSY.
Effective: 2024-03-30
Alternative parts: 5BYV-031000-A104
Price: 2 049,00 € : 2 049,00 €
14
P/N (SKU): 5BWV-030050-5000
Part Name: UPPER ADAPTER BRACKET, FRONT GEAR CASE
Effective: 2024-03-30
Alternative parts:
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2024-03-30
Alternative parts:
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 5BYV-030050-A100
Part Name: FRONT LOWER BRACKET, FRONT GEAR CASE
Effective: 2024-03-30
Alternative parts:
Price: 8,00 € : 8,00 €
-+
17
P/N (SKU): 5BY0-030660
Part Name: BRACKET, THROTTLE PEDAL
Effective: 2024-03-30
Alternative parts:
Price: 13,00 € : 13,00 €
-+
18
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2024-03-30
Alternative parts:
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 5BY0-030622
Part Name: FRONT INNER LOCK PANEL LH BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 4,50 € : 4,50 €
-+
20
P/N (SKU): 5BY0-030623
Part Name: FRONT INNER LOCK PANEL RH BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 4,50 € : 4,50 €
-+
21
P/N (SKU): 5BY0-030070
Part Name: MOUNTING BRACKET, BRAKE HOSE CASE
Effective: 2024-03-30
Alternative parts:
Price: 6,00 € : 6,00 €
-+
22
P/N (SKU): 5HY0-030410
Part Name: MOUNT SEAT, REGULATOR
Effective: 2024-03-30
Alternative parts:
Price: 11,00 € : 11,00 €
-+
23
P/N (SKU): 5BY0-030020
Part Name: STEERING WHEEL CONVERTING BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 18,00 € : 18,00 €
-+
24
P/N (SKU): 5BYV-030100-A101
Part Name: SEAT BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 133,00 € : 133,00 €
-+
25
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2024-03-30
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 7000-031802
Part Name: LH MOVING BRACKET, ENGINE
Effective: 2024-03-30
Alternative parts:
Price: 4,50 € : 4,50 €
-+
28
P/N (SKU): 5BY0-030200
Part Name: ENGINE UPPER PIPE ASSY
Effective: 2024-03-30
Alternative parts:
Specification: BLACK
Price: 37,00 € : 37,00 €
-+
29
P/N (SKU): 30006-080060810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8x60
Price: 2,50 € : 2,50 €
-+
30
P/N (SKU): 5HY0-030060
Part Name: HIGH-VOLTAGE PACK BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 6,50 € : 6,50 €
-+
31
P/N (SKU): 7000-020020-10000
Part Name: HEAT INSULATOR PLATE ASSY
Effective: 2024-03-30
Alternative parts:
Price: 37,00 € : 37,00 €
-+
32
P/N (SKU): 5BY0-030030
Part Name: FRONT UPPER BRACKET, REAR GEAR CASE
Effective: 2024-03-30
Alternative parts:
Price: 12,00 € : 12,00 €
-+
33
P/N (SKU): 30006-102035810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M10×1.25×35
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5BY0-030906
Part Name: TAIL GUARD LOWER RH BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 4,50 € : 4,50 €
-+
35
P/N (SKU): 5BY0-030905
Part Name: TAIL GUARD LOWER LH BRACKET
Effective: 2024-03-30
Alternative parts:
Price: 4,50 € : 4,50 €
-+
36
P/N (SKU): 5BYA-030020-10000
Part Name: FENDER REAR FIXING SEAT
Effective: 2024-03-30
Alternative parts:
Price: 9,00 € : 9,00 €
-+
37
P/N (SKU): 5BY0-030920
Part Name: REAR FENDER RH BRACKET
Effective: 2024-03-30
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 5,00 € : 5,00 €
-+
38
P/N (SKU): 5BY0-030910
Part Name: REAR FENDER LH BRACKET
Effective: 2024-03-30
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 5,00 € : 5,00 €
-+
39
P/N (SKU): 5BY0-030951
Part Name: REAR FENDER BRACKET
Effective: 2024-03-30
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 3,50 € : 3,50 €
-+
40
P/N (SKU): 30006-060016870
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 5BYA-030500-0B000
Part Name: REAR BUMPER ASSY
Effective: 2024-03-30
Alternative parts: 5BYA-030500-0BP00
Specification: MATTE BLACK
Price: 130,00 € : 130,00 €
41
P/N (SKU): 5BYV-030500-B100-0B000
Part Name: REAR BUMPER ASSY
Effective: 2024-03-30
Alternative parts: 5BYV-030500-B100-0BP00
Specification: ELECTROPHORESIS BLACK
Price: 98,00 € : 98,00 €
42
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 5BYA-030010
Part Name: RACK ASSY
Effective: 2024-03-30
Alternative parts:
Specification: BLACK
Price: 51,00 € : 51,00 €
-+
44
P/N (SKU): 5190-001003
Part Name: MAIN BRACKET RUBBER DAMPER
Effective: 2024-03-30
Alternative parts:
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): 5BY0-030621
Part Name: REAR CARGO BOX SLEEVE
Effective: 2024-03-30
Alternative parts:
Price: 3,00 € : 3,00 €
-+
46
P/N (SKU): 5BYA-030400
Part Name: RACK RH SUPPORT ASSY
Effective: 2024-03-30
Alternative parts:
Specification: BLACK
Price: 25,00 € : 25,00 €
-+
47
P/N (SKU): 5BYA-030300
Part Name: RACK LH SUPPORT ASSY
Effective: 2024-03-30
Alternative parts:
Specification: BLACK
Price: 25,00 € : 25,00 €
-+
48
P/N (SKU): 5BYA-030600-0B000
Part Name: REAR RACK ASSY
Effective: 2024-03-30
Alternative parts: 5BYA-030600-0BP00
Specification: MATTE BLACK
Price: 106,00 € : 106,00 €
49
P/N (SKU): 30006-080020870
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8x20
Price: 1,50 € : 1,50 €
-+
50
P/N (SKU): 30102-080030860
Part Name: SCREW
Effective: 2024-03-30
Alternative parts:
Specification: M8x30@DACROMET
Price: 1,50 € : 1,50 €
-+
51
P/N (SKU): 5BY0-000306
Part Name: BOLT
Effective: 2024-03-30
Alternative parts:
Specification: M8x52
Price: 3,00 € : 3,00 €
-+
52
P/N (SKU): 6NQ3-250022-00001
Part Name: PLUG 25-16
Effective: 2024-03-30
Alternative parts:
Price: 2,00 € : 2,00 €
-+
53
P/N (SKU): 5BWV-030080-5000
Part Name: FRONT BRACKET, ENGINE
Effective: 2024-03-30
Alternative parts:
Price: 15,00 € : 15,00 €
-+
54
P/N (SKU): 5BWV-100100-5000
Part Name: ARMREST RAIL ASSY
Effective: 2024-03-30
Alternative parts:
Price: 59,00 € : 59,00 €
-+
55
P/N (SKU): 5BYV-109400-6000
Part Name: RH ARMREST RAIL CLAMP ASSY
Effective: 2024-03-30
Alternative parts:
Price: 17,00 € : 17,00 €
-+
56
P/N (SKU): 5BWV-107400-5000
Part Name: ARMREST RAIL BUSHING
Effective: 2024-03-30
Alternative parts: 5BWV-107400-5001
Price: 3,00 € : 3,00 €
57
P/N (SKU): 5BYV-109300-6000
Part Name: ARMREST RAIL CLAMP ASSY, LH
Effective: 2024-03-30
Alternative parts:
Price: 17,00 € : 17,00 €
-+
