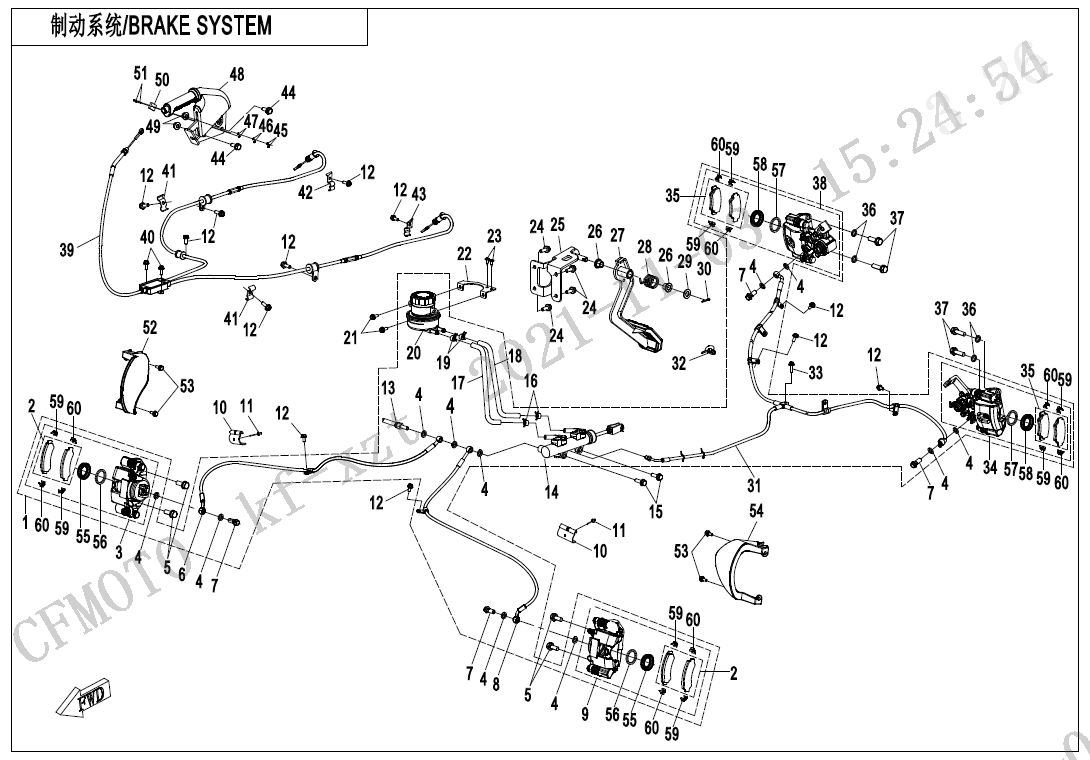

BRAKE SYSTEM - F08

BRAKE SYSTEM - F08

No.

01
P/N (SKU): 5BYV-081000-A100
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2023-05-05
Alternative parts:
Price: 972,00 € : 972,00 €
-+
02
P/N (SKU): 9AWA-0811A0
Part Name: BRAKE PAD ASSY
Effective: 2023-05-05
Alternative parts: 5HYV-0811A0
Price: 46,00 € : 46,00 €
-+
03
P/N (SKU): 9AWA-081200
Part Name: FRONT BRAKE CALIPER, RH
Effective: 2023-05-05
Alternative parts: 9AWV-081200-4000
Price: 98,00 € : 98,00 €
-+
04
P/N (SKU): 901B-080102
Part Name: WASHER
Effective: 2023-05-05
Alternative parts: 0010-060010
Specification: 80
Price: 1,50 € : 1,50 €
05
P/N (SKU): 30006-102025810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M10×1.25×25
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 5BY0-081030
Part Name: RH FRONT BRAKE FLUID HOSE
Effective: 2023-05-05
Alternative parts:
Price: 36,00 € : 36,00 €
-+
07
P/N (SKU): 7020-081004
Part Name: BANJO BOLT
Effective: 2023-05-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
08
P/N (SKU): 5BY0-081010
Part Name: LH FRONT BRAKE FLUID HOSE
Effective: 2023-05-05
Alternative parts:
Price: 31,00 € : 31,00 €
-+
09
P/N (SKU): 9AWA-081100
Part Name: FRONT BRAKE CALIPER, LH
Effective: 2023-05-05
Alternative parts: 9AWV-081100-4000
Price: 98,00 € : 98,00 €
-+
10
P/N (SKU): 5BY0-080002
Part Name: PLASTIC CLASP
Effective: 2023-05-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 30902-0400820
Part Name: RIVET
Effective: 2023-05-05
Alternative parts: 30902-0401320
Specification: φ4×8
Price: 1,50 € : 1,50 €
12
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
13
P/N (SKU): 5HY0-080010-20000
Part Name: HYDRAULIC INDUCTION SWITCH
Effective: 2023-05-05
Alternative parts:
Price: 18,00 € : 18,00 €
-+
14
P/N (SKU): 5BWB-081100
Part Name: MASTER CYLINDER ASSY
Effective: 2023-05-05
Alternative parts: 5BWB-081100-00002
Price: 77,00 € : 77,00 €
15
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 7020-081002
Part Name: PIPE CLIP, MASTER CYLINDER
Effective: 2023-05-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5BY0-081001
Part Name: FLUID RESERVOIR HOSE 1
Effective: 2023-05-05
Alternative parts:
Price: 19,00 € : 19,00 €
-+
18
P/N (SKU): 5BY0-081002
Part Name: FLUID RESERVOIR HOSE 2
Effective: 2023-05-05
Alternative parts:
Price: 19,00 € : 19,00 €
-+
19
P/N (SKU): 9010-080405
Part Name: CLAMP
Effective: 2023-05-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 5BW1-080150-20000
Part Name: RESERVOIR ASSY
Effective: 2023-05-05
Alternative parts:
Price: 39,00 € : 39,00 €
-+
21
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts: 30006-060016870
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5UWB-030110
Part Name: BRACKET, OIL CUP
Effective: 2023-05-05
Alternative parts:
Price: 15,00 € : 15,00 €
-+
23
P/N (SKU): 30110-480130010
Part Name: SELF-TAPPING SCREW
Effective: 2023-05-05
Alternative parts: 30110-481130010
Specification: ST4.8×13
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 30006-080025870
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 5BY0-080010
Part Name: FIXED BRACKET, FOOT PEDAL
Effective: 2023-05-05
Alternative parts:
Price: 23,00 € : 23,00 €
-+
26
P/N (SKU): 9060-105002
Part Name: BUSHING
Effective: 2023-05-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 5HYV-082000-1201
Part Name: BRAKE PEDAL ASSY
Effective: 2023-05-05
Alternative parts:
Price: 17,00 € : 17,00 €
-+
28
P/N (SKU): 9060-080003
Part Name: RETURN SPRING
Effective: 2023-05-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
29
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2023-05-05
Alternative parts:
Specification: φ12
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2023-05-05
Alternative parts:
Specification: φ3.2×22
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 5BY0-081020
Part Name: REAR BRAKE FLUID HOSE
Effective: 2023-05-05
Alternative parts:
Price: 108,00 € : 108,00 €
-+
32
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-05-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
34
P/N (SKU): 5BYD-081060-A100
Part Name: REAR LH BRAKE CALIPER ASSY
Effective: 2023-05-05
Alternative parts:
Price: 211,00 € : 211,00 €
-+
35
P/N (SKU): 7020-0810A0
Part Name: REAR BRAKE PAD ASSY
Effective: 2023-05-05
Alternative parts: 5ASV-0813A0
Price: 29,00 € : 29,00 €
36
P/N (SKU): 30300-100112
Part Name: WASHER
Effective: 2023-05-05
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30006-102035810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M10×1.25×35
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 5BYD-081050-A100
Part Name: REAR RH BRAKE CALIPER ASSY
Effective: 2023-05-05
Alternative parts:
Price: 211,00 € : 211,00 €
-+
39
P/N (SKU): 5BY0-083100
Part Name: PARKING CABLE
Effective: 2023-05-05
Alternative parts:
Price: 41,00 € : 41,00 €
-+
40
P/N (SKU): 30006-050016810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M5×16
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 5BY0-080001
Part Name: CLIP I, LH OIL HOSE
Effective: 2023-05-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
42
P/N (SKU): 5BY0-080006
Part Name: CLIP III, RH OIL HOSE
Effective: 2023-05-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
43
P/N (SKU): 5BY0-080005
Part Name: CLIP III, LH OIL HOSE
Effective: 2023-05-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
44
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): 30200-020500
Part Name: NUT M2
Effective: 2023-05-05
Alternative parts:
Specification: M2
Price: 1,50 € : 1,50 €
-+
46
P/N (SKU): 30303-020900
Part Name: WASHER
Effective: 2023-05-05
Alternative parts:
Specification: 2
Price: 1,50 € : 1,50 €
-+
47
P/N (SKU): 30306-020800
Part Name: WASHER
Effective: 2023-05-05
Alternative parts:
Specification: 2
Price: 1,50 € : 1,50 €
-+
48
P/N (SKU): 5BYV-083200-B000
Part Name: HAND BRAKE
Effective: 2023-05-05
Alternative parts:
Price: 57,00 € : 57,00 €
-+
49
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2023-05-05
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
50
P/N (SKU): 7000-082210-20000
Part Name: MICRO SWITCH
Effective: 2023-05-05
Alternative parts:
Price: 15,00 € : 15,00 €
-+
51
P/N (SKU): 30105-020016700
Part Name: SCREW M2x16
Effective: 2023-05-05
Alternative parts:
Specification: M2x16
Price: 1,50 € : 1,50 €
-+
52
P/N (SKU): 5BY0-080008
Part Name: GUARD, FRONT RH BRAKE CALIPER
Effective: 2023-05-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
53
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2023-05-05
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
54
P/N (SKU): 5BY0-080007
Part Name: GUARD, FRONT LH BRAKE CALIPER
Effective: 2023-05-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
55
P/N (SKU): 5HYV-081100-1B00-20
Part Name: DUST SEAL, PISTON
Effective: 2023-05-05
Alternative parts:
Price: 2,50 € : 2,50 €
-+
56
P/N (SKU): 5HYV-081100-1B00-21
Part Name: DUST SEAL, PISTON
Effective: 2023-05-05
Alternative parts:
Price: 2,50 € : 2,50 €
-+
57
P/N (SKU): 5BYV-081300-1300-21
Part Name: DUST SEAL, PISTON
Effective: 2023-05-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
58
P/N (SKU): 5BYV-081300-1300-20
Part Name: DUST SEAL, PISTON
Effective: 2023-05-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
59
P/N (SKU): 5HYV-081100-1B00-22
Part Name: BRACKET 1
Effective: 2023-05-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
60
P/N (SKU): 5HYV-081100-1B00-23
Part Name: BRACKET 2
Effective: 2023-05-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
61
P/N (SKU): 30903-0162010
Part Name: COTTER PIN
Effective: 2023-05-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
62
P/N (SKU): 30904-0602010
Part Name: PIN SHAFT
Effective: 2023-05-05
Alternative parts:
Specification: 6x20 TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
63
P/N (SKU): 9010-080104
Part Name: CIRCLIP
Effective: 2023-05-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
