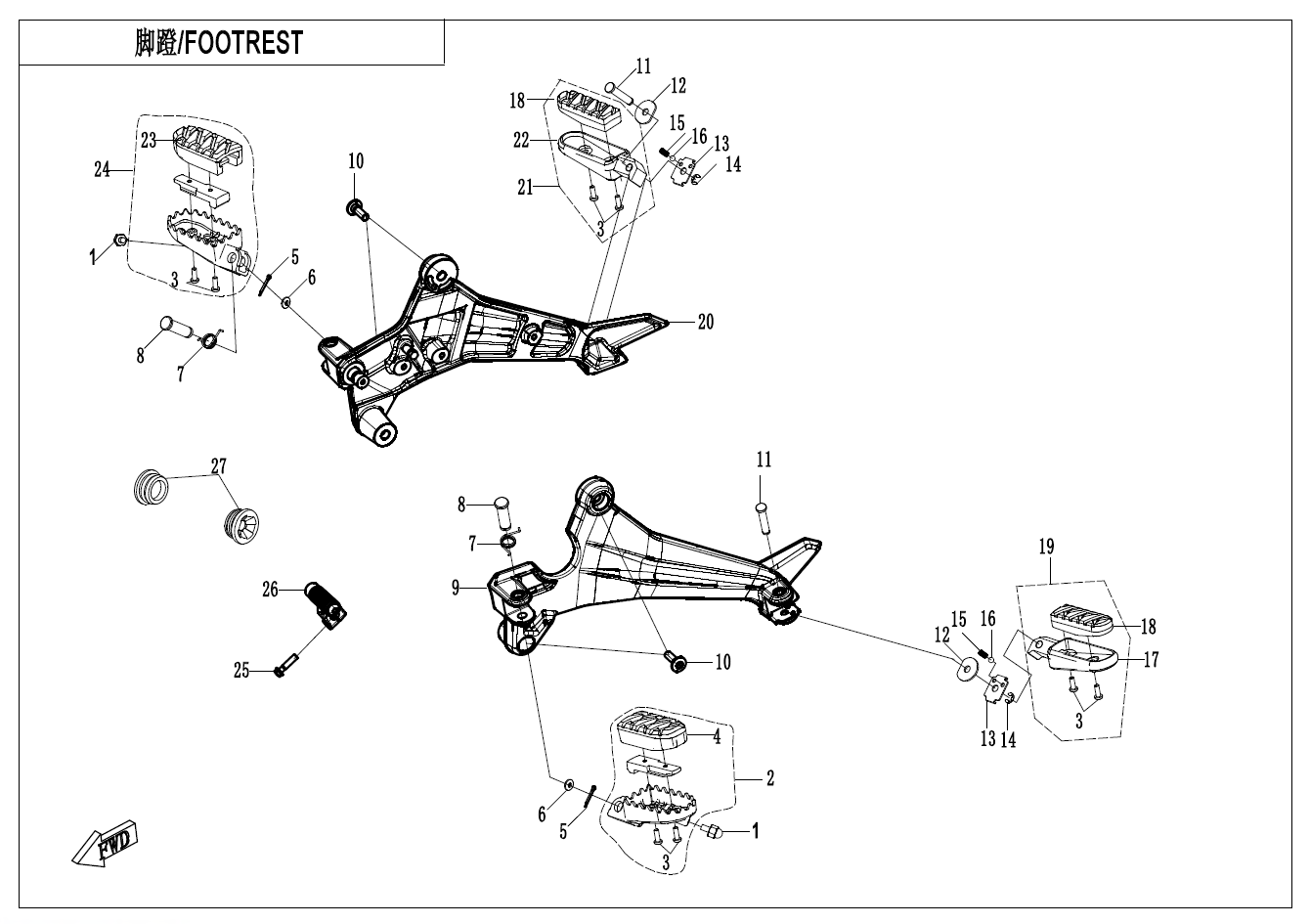

FOOTREST - F14

FOOTREST - F14

No.

01
P/N (SKU): 6GU#-140202-6000
Part Name: LIMIT BOLT
Effective: 2023-11-13
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 6GUV-140220-6003-0BY00
Part Name: FRONT FOOTREST SEAT, LH
Effective: 2023-11-13
Specification: NANO BLACK
Price: 28,00 € : 28,00 €
-+
03
P/N (SKU): 30105-050014470
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2023-11-13
Specification: M5×14
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6GU#-140205-6000
Part Name: LH FRONT FOOTREST RUBBER
Effective: 2023-11-13
Price: 4,50 € : 4,50 €
-+
05
P/N (SKU): 30903-0322210
Part Name: SPLIT PINS
Effective: 2023-11-13
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 30300-100112
Part Name: SMALL WASHERS
Effective: 2023-11-13
Specification: φ10
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): A000-140103-20000
Part Name: SPRING
Effective: 2023-11-13
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 6WWV-140141-5000
Part Name: PIN SHAFT
Effective: 2023-11-13
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 6KMV-140600-C000
Part Name: LH FOOTREST BRACKET
Effective: 2023-11-13
Price: 154,00 € : 154,00 €
-+
10
P/N (SKU): 6GU#-140201-6000
Part Name: BOLT M8x25
Effective: 2023-11-13
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2023-11-13
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2023-11-13
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2023-11-13
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30802-00603
Part Name: E RINGS
Effective: 2023-11-13
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2023-11-13
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2023-11-13
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 6GU#-140041-6000-0BP00
Part Name: REAR LH FOOTREST SEAT
Effective: 2023-11-13
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
18
P/N (SKU): 6GU#-140080-6000
Part Name: REAR FOOTREST RUBBER ASSY
Effective: 2023-11-13
Price: 7,50 € : 7,50 €
-+
19
P/N (SKU): 6GU#-1400A0-6000-0BP00
Part Name: RUBBER, LH REAR FOOTREST BOARD
Effective: 2023-11-13
Specification: MAUD SPIRIT BLACK
Price: 26,00 € : 26,00 €
-+
20
P/N (SKU): 6KMV-140700-C000
Part Name: RH FOOTREST BRACKET ASSY
Effective: 2023-11-13
Price: 163,00 € : 163,00 €
-+
21
P/N (SKU): 6GU#-1400B0-6000-0BP00
Part Name: RUBBER, RH REAR FOOTREST BOARD
Effective: 2023-11-13
Specification: MAUD SPIRIT BLACK
Price: 26,00 € : 26,00 €
-+
22
P/N (SKU): 6GU#-140051-6000-0BP00
Part Name: REAR RH FOOTREST SEAT
Effective: 2023-11-13
Specification: MAUD SPIRIT BLACK
Price: 16,00 € : 16,00 €
-+
23
P/N (SKU): 6GU#-140206-6000
Part Name: RH FRONT FOOTREST RUBBER
Effective: 2023-11-13
Price: 4,50 € : 4,50 €
-+
24
P/N (SKU): 6GUV-140230-6003-0BP00
Part Name: FRONT RH FOOTREST SEAT ASSY
Effective: 2023-11-13
Specification: MAUD SPIRIT BLACK
Price: 29,00 € : 29,00 €
-+
25
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2023-11-13
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 6KMV-141000-C001
Part Name: GEARSHIFT ASSY
Effective: 2023-11-13
Price: 26,00 € : 26,00 €
-+
27
P/N (SKU): 6GU#-140097-6000
Part Name: FRAME FRONT DECO CLASP
Effective: 2023-11-13
Price: 2,50 € : 2,50 €
-+
