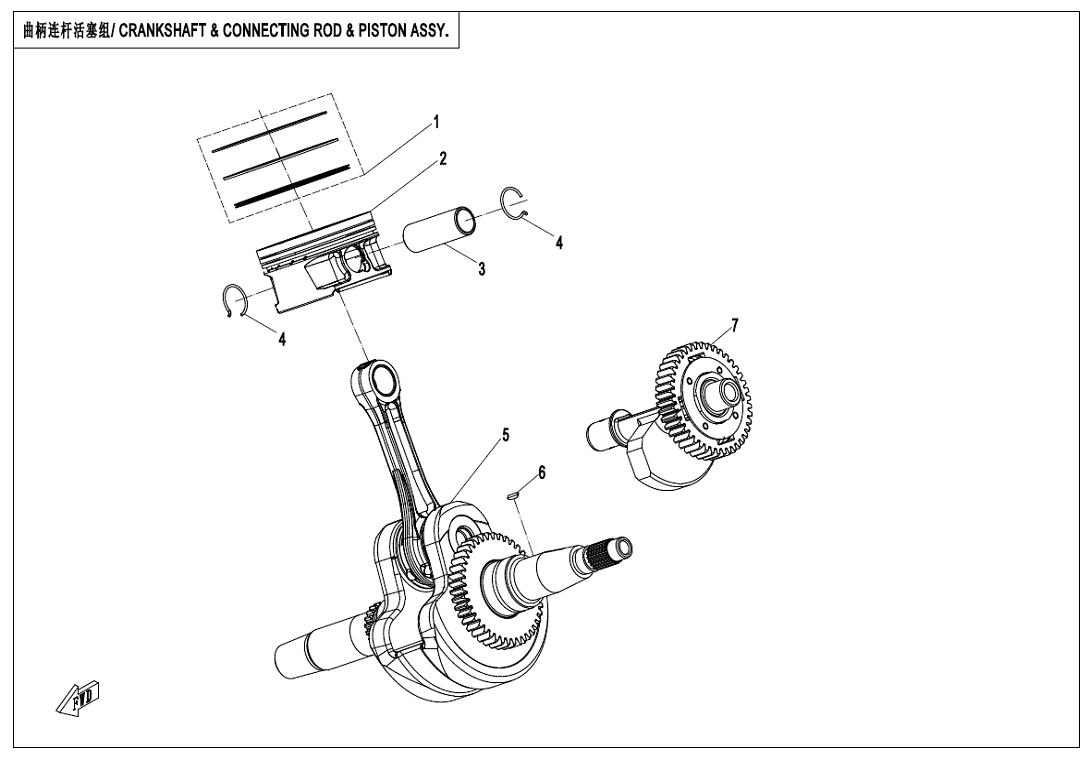

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2023-06-21
Remarks: null
Alternative parts: 0800-0400A0
Specification: SUPPLIER 2
Price: 24,00 € : 24,00 €
01
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2023-06-21
Remarks: null
Alternative parts: null
Specification: SUPPLIER 1
Price: 45,00 € : 45,00 €
-+
02
P/N (SKU): 0GS0-040001-00012
Part Name: PISTON
Effective: 2023-06-21
Remarks: null
Alternative parts: null
Specification: MARK1
Price: 38,00 € : 38,00 €
-+
02
P/N (SKU): 0GS0-040001-00022
Part Name: PISTON
Effective: 2023-06-21
Remarks: null
Alternative parts: null
Specification: MARK 2
Price: 38,00 € : 38,00 €
-+
03
P/N (SKU): 0800-040002-00001
Part Name: PISTON PIN
Effective: 2023-06-21
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2023-06-21
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 0GS0-041000-30014
Part Name: COPPER BEARING
Effective: 2023-06-21
Remarks: null
Alternative parts: 0GS0-041000-30017
Specification: MARK A@WITH OIL HOLE@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 310,00 € : 310,00 €
06
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2023-06-21
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
-+
07
P/N (SKU): 0GS0-160000-00021
Part Name: BALANCE SHAFT ASSY
Effective: 2023-06-21
Remarks: B GROUP, MATCHED WITH 0GR0-041000-30011
Alternative parts: null
Specification: MARK B@MATCHED WITH MARK A CRANK CONNECTING ROD SUB ASSY
Price: 133,00 € : 133,00 €
