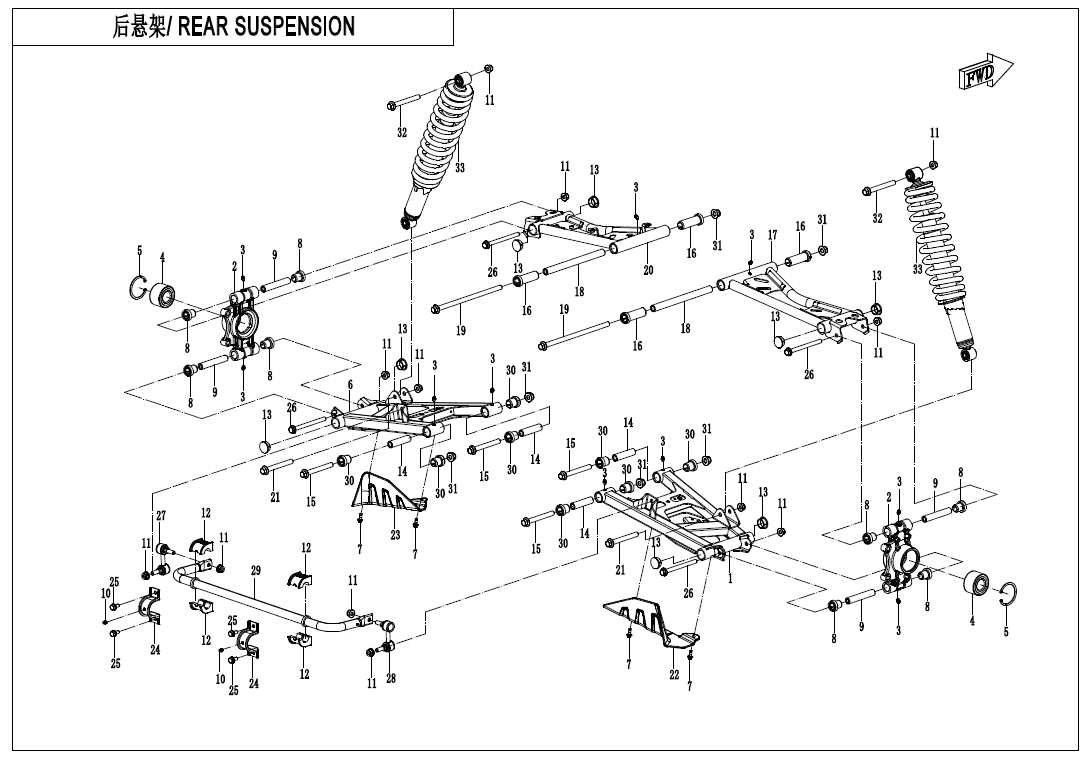

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

01
P/N (SKU): 5SYV-060210-6001
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2022-07-16
Alternative parts: 5SYV-060210-6003-0BP00
Price: 100,00 € : 100,00 €
-+
02
P/N (SKU): 5HY0-060703
Part Name: REAR BEARING CARRIER
Effective: 2022-07-16
Alternative parts:
Price: 75,00 € : 75,00 €
-+
03
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2022-07-16
Alternative parts: 30411-03081
Price: 43,00 € : 43,00 €
04
P/N (SKU): 30411-03081
Part Name: HUB BEARING
Effective: 2023-07-21
Alternative parts:
Specification: 30×60×37
Price: 37,00 € : 37,00 €
-+
05
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2022-07-16
Alternative parts:
Specification: 60
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 5SYV-060410-6001
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2022-07-16
Alternative parts: 5SYV-060410-6002-0BP00
Price: 100,00 € : 100,00 €
-+
07
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2022-07-16
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 5ASV-050002-6000
Part Name: SHORT BUSHING
Effective: 2022-07-16
Alternative parts: 5ASV-050002-6001
Price: 5,00 € : 5,00 €
08
P/N (SKU): 5ASV-050002-6001
Part Name: SLEEVE
Effective: 2022-10-07
Alternative parts:
Price: 4,50 € : 4,50 €
-+
09
P/N (SKU): 5HY0-060701-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE SPACER
Effective: 2022-07-16
Alternative parts:
Price: 5,00 € : 5,00 €
-+
10
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2022-07-16
Alternative parts:
Specification: 90 DEGREE
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2022-07-16
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 7000-060003
Part Name: SWAY BAR SEAT
Effective: 2022-07-16
Alternative parts:
Price: 3,50 € : 3,50 €
-+
13
P/N (SKU): 9060-060002
Part Name: REAR SUSPENSION PLUG
Effective: 2022-07-16
Alternative parts:
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 5SYV-060201-6000
Part Name: SHORT MIDDLE SPACER, SWING ARM
Effective: 2022-07-16
Alternative parts:
Price: 5,50 € : 5,50 €
-+
15
P/N (SKU): 30024-122100110
Part Name: BOLT
Effective: 2022-07-16
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 3,50 € : 3,50 €
-+
16
P/N (SKU): 5BY0-050102
Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM
Effective: 2022-07-16
Alternative parts:
Price: 3,00 € : 3,00 €
-+
17
P/N (SKU): 5SYV-060110-6001
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2022-07-16
Alternative parts:
Price: 61,00 € : 61,00 €
-+
18
P/N (SKU): 5SYV-050101-6000
Part Name: MIDDLE SPACER, SWING ARM
Effective: 2022-07-16
Alternative parts:
Price: 11,00 € : 11,00 €
-+
19
P/N (SKU): 5SYV-050103-6000
Part Name: SWING ARM SHAFT
Effective: 2022-07-16
Alternative parts:
Price: 10,00 € : 10,00 €
-+
20
P/N (SKU): 5SYV-060310-6001
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2022-07-16
Alternative parts:
Price: 61,00 € : 61,00 €
-+
21
P/N (SKU): 30006-102055110
Part Name: BOLT
Effective: 2022-07-16
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5HYV-060201-1000
Part Name: REAR LH SWINGARM GUARD
Effective: 2022-07-16
Alternative parts:
Price: 6,00 € : 6,00 €
-+
23
P/N (SKU): 5HYV-060401-1000
Part Name: GUARD, REAR RH SWING ARM
Effective: 2022-07-16
Alternative parts:
Price: 6,00 € : 6,00 €
-+
24
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2022-07-16
Alternative parts:
Price: 5,00 € : 5,00 €
-+
25
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2022-07-16
Alternative parts: 30006-080020810
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
26
P/N (SKU): 30001-102120110
Part Name: BOLT M10x1.25x120
Effective: 2022-07-16
Alternative parts: 30006-102120810
Specification: M10x1.25x120
Price: 3,00 € : 3,00 €
-+
27
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2022-07-16
Remarks: CCVI
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
28
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2022-07-16
Remarks: CCVI
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
29
P/N (SKU): 5SYV-060610-6000
Part Name: REAR SWAY BAR ASSY
Effective: 2022-07-16
Alternative parts:
Price: 66,00 € : 66,00 €
-+
30
P/N (SKU): 5SYV-060202-6000
Part Name: SHORT BUSHING, SWING ARM
Effective: 2022-07-16
Alternative parts:
Price: 7,00 € : 7,00 €
-+
31
P/N (SKU): 30204-122910
Part Name: NUT
Effective: 2022-07-16
Alternative parts:
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 30006-102060110
Part Name: BOLT
Effective: 2022-07-16
Alternative parts:
Price: 2,00 € : 2,00 €
-+
33
P/N (SKU): 5SYV-060500-6001
Part Name: REAR SHOCK ABSORBER
Effective: 2022-07-16
Alternative parts:
Price: 215,00 € : 215,00 €
-+
