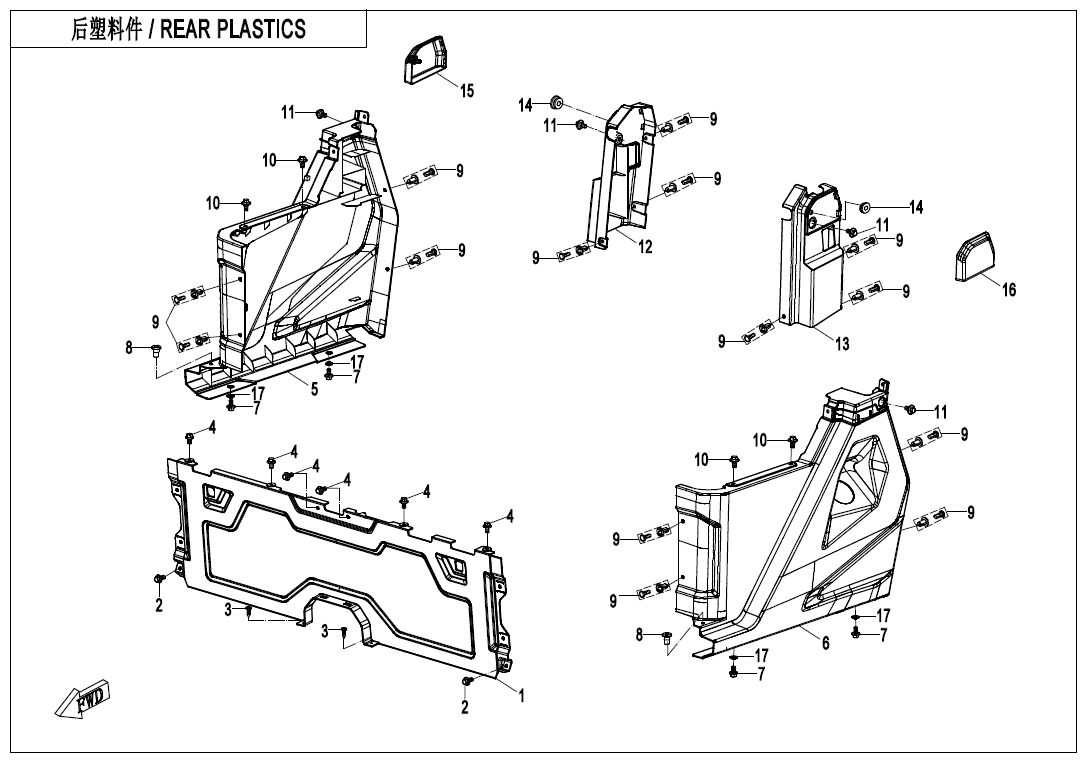

REAR PLASTICS - F04-5-V3

REAR PLASTICS - F04-5-V3

No.

1
P/N (SKU): 5HY#-043061-1000-11
Part Name: FRONT LOWER BAFFLE, SEAT
Effective: 2022-12-03
Price: 46,00 € : 46,00 €
-+
2
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-03
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 30110-480160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2022-12-03
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2022-12-03
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 5HY0-042024
Part Name: REAR RH SIDE PANEL
Effective: 2022-12-03
Alternative parts: 5HYV-042024-1C00
Price: 53,00 € : 53,00 €
5
P/N (SKU): 5HYV-042024-1C00
Part Name: REAR RH PANEL
Effective: 2022-12-03
Price: 60,00 € : 60,00 €
-+
6
P/N (SKU): 5HY0-042023
Part Name: REAR LH PANEL
Effective: 2022-12-03
Alternative parts: 5HYV-042023-1C00
Price: 55,00 € : 55,00 €
6
P/N (SKU): 5HYV-042023-1C00
Part Name: REAR LH PANEL
Effective: 2022-12-03
Price: 63,00 € : 63,00 €
-+
7
P/N (SKU): 5HY0-220113
Part Name: BOLT M8x20
Effective: 2022-12-03
Specification: M8x20
Price: 2,00 € : 2,00 €
-+
8
P/N (SKU): 6NQ#-000202-6001
Part Name: CONVEX BOLT
Effective: 2022-12-03
Price: 2,00 € : 2,00 €
-+
9
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2022-12-03
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 6NQ#-000203-6001
Part Name: INNER HEX SCREW M6x20
Effective: 2022-12-03
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2022-12-03
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HY#-042022-6000-10
Part Name: REAR RH UPPER SIDE PANEL
Effective: 2022-12-03
Alternative parts: 5HYV-042022-1D00
Price: 13,00 € : 13,00 €
12
P/N (SKU): 5HYV-042022-1D00
Part Name: REAR RH UPPER PANEL
Effective: 2023-07-12
Price: 15,00 € : 15,00 €
-+
13
P/N (SKU): 5HY#-042021-6000-10
Part Name: REAR UPPER LH PANEL
Effective: 2022-12-03
Alternative parts: 5HYV-042021-1D00
Price: 13,00 € : 13,00 €
13
P/N (SKU): 5HYV-042021-1D00
Part Name: REAR LH UPPER PANEL
Effective: 2023-07-12
Price: 15,00 € : 15,00 €
-+
14
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2022-12-03
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 5HY0-042026
Part Name: MOUNT COVER, RH HINGE
Effective: 2022-12-03
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 5HY0-042025
Part Name: MOUNT COVER, LH HINGE
Effective: 2022-12-03
Price: 2,50 € : 2,50 €
-+
17
P/N (SKU): 30301-080412
Part Name: PLAIN WASHERS
Effective: 2022-12-03
Price: 1,50 € : 1,50 €
-+
