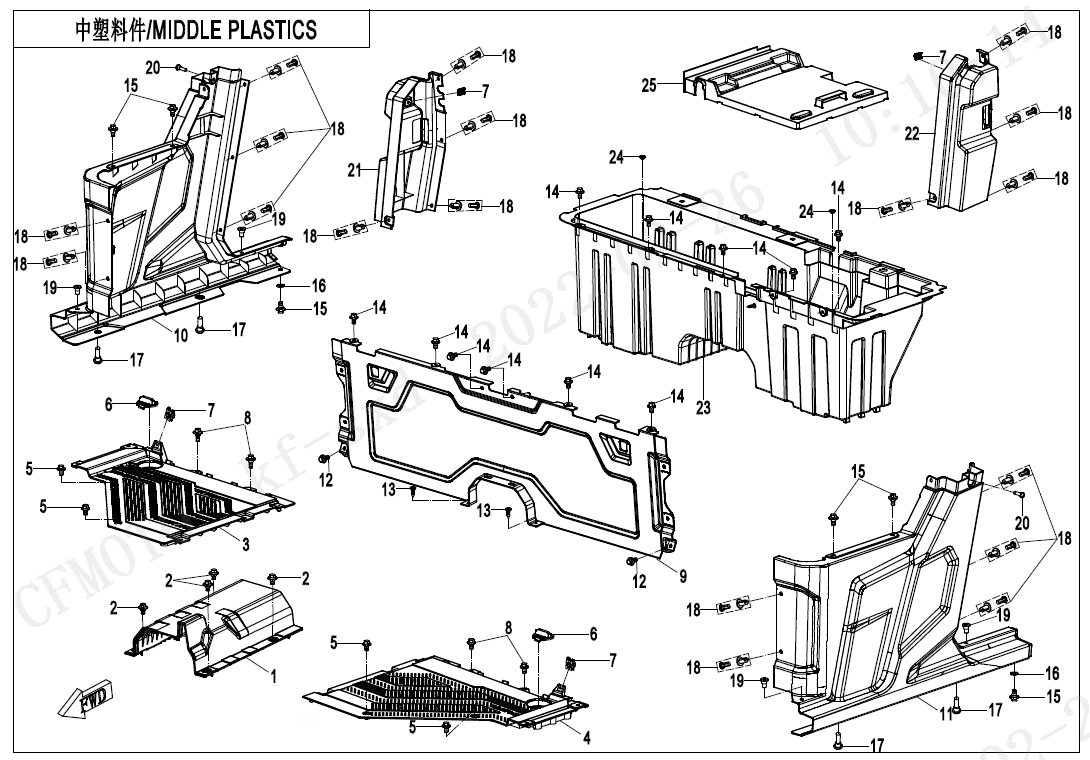

MIDDLE PLASTICS - F04-3-V2

MIDDLE PLASTICS - F04-3-V2

No.

1
P/N (SKU): 5HYV-043053-1000
Part Name: SERVICE COVER, PEDAL
Effective: 2022-07-16
Alternative parts: 5HYV-043053-1001
Price: 44,00 € : 44,00 €
2
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 5HYV-043052-1C00
Part Name: RH FOOT PEDAL
Effective: 2022-07-16
Alternative parts:
Price: 39,00 € : 39,00 €
-+
4
P/N (SKU): 5HYV-043051-1C00
Part Name: LH FOOT PEDAL
Effective: 2022-07-16
Alternative parts:
Price: 39,00 € : 39,00 €
-+
5
P/N (SKU): 30006-060016870
Part Name: BOLT
Effective: 2022-07-16
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 5BY0-042032
Part Name: PLUG, PEDAL
Effective: 2022-07-16
Alternative parts: 5BYV-042032-AD00
Price: 1,50 € : 1,50 €
7
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2022-07-16
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 5HY#-043061-1000-11
Part Name: FRONT LOWER BAFFLE, SEAT
Effective: 2022-07-16
Alternative parts:
Price: 46,00 € : 46,00 €
-+
10
P/N (SKU): 5SYV-044014-6000
Part Name: FRONT RH SIDE PLATE
Effective: 2022-07-16
Alternative parts: 5SYV-044014-6001
Price: 58,00 € : 58,00 €
11
P/N (SKU): 5SYV-044013-6000
Part Name: FRONT LH SIDE PLATE
Effective: 2022-07-16
Alternative parts: 5SYV-044013-6001
Price: 58,00 € : 58,00 €
12
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2022-07-16
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2022-07-16
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2022-07-16
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6NQ#-000203-6001
Part Name: INNER HEX SCREW M6x20
Effective: 2022-07-16
Alternative parts:
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30301-060470
Part Name: WASHER
Effective: 2022-07-16
Alternative parts:
Specification: φ6
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5HY0-220113
Part Name: BOLT M8x20
Effective: 2022-07-16
Alternative parts:
Specification: M8x20
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2022-07-16
Alternative parts:
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 6NQ#-000202-6001
Part Name: CONVEX BOLT
Effective: 2022-07-16
Alternative parts:
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 6NQ#-000205-6001
Part Name: CHAIN GUARD SCREW
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 5SYV-044042-6001-11
Part Name: RH UPPER PANEL, FRONT SEAT
Effective: 2022-07-16
Alternative parts: 5SYV-044042-6002-11
Specification: NO DOOR
Price: 15,00 € : 15,00 €
22
P/N (SKU): 5SYV-044041-6001-11
Part Name: LH UPPER PANEL, FRONT SEAT
Effective: 2022-07-16
Alternative parts: 5SYV-044041-6002-11
Specification: NO DOOR
Price: 15,00 € : 15,00 €
23
P/N (SKU): 5SYV-043061-6000
Part Name: STORAGE BOX, FRONT SEAT
Effective: 2022-07-16
Alternative parts:
Price: 164,00 € : 164,00 €
-+
24
P/N (SKU): 6100-030006
Part Name: ADJUSTING HOLE GASKET
Effective: 2022-07-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 5SYV-043062-6001
Part Name: INNER PRESS PLATE, STORAGE BOX
Effective: 2022-07-16
Alternative parts:
Price: 28,00 € : 28,00 €
-+
