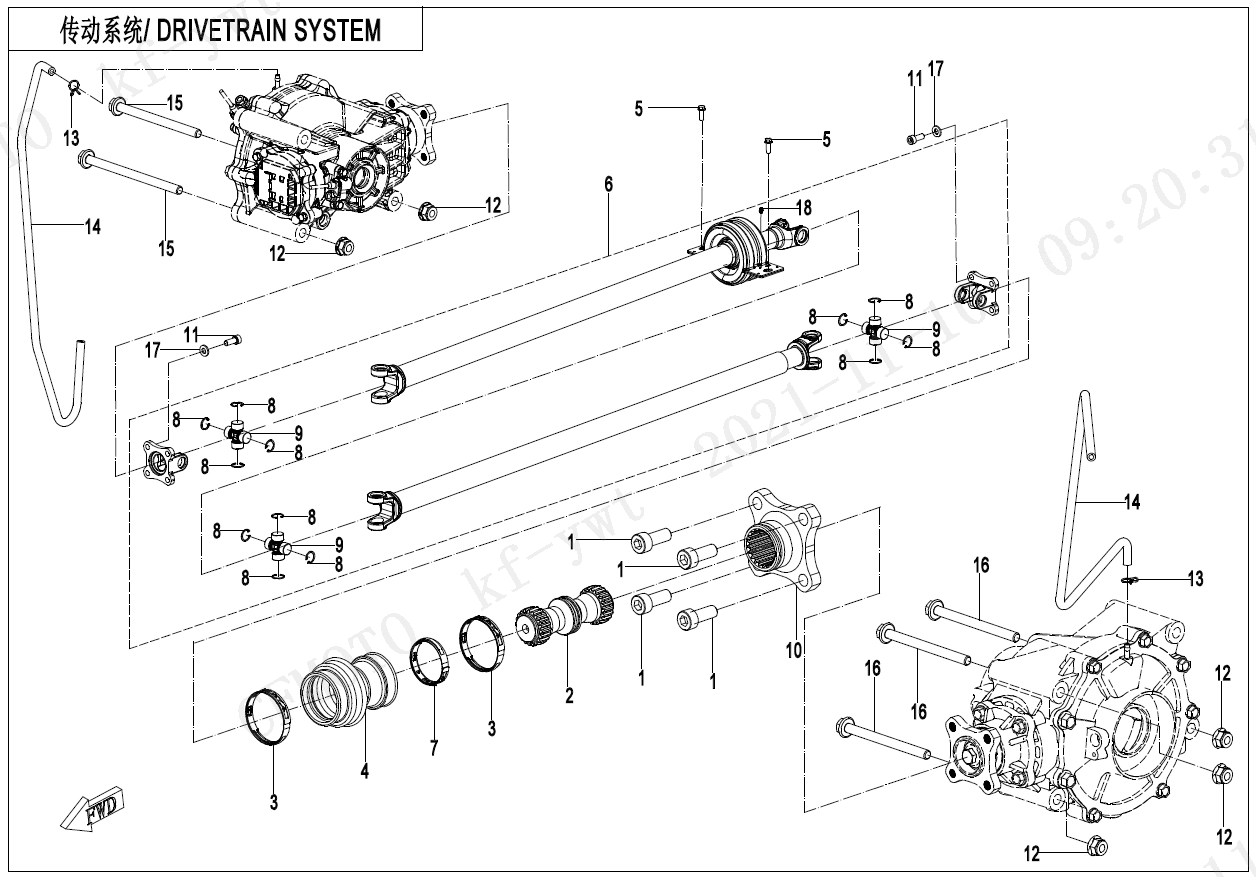

DRIVETRAIN SYSTEM - F30 | 2023, UTV, CF1000UTR-5 | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 30102-102025810

Part Name: SCREW

Effective: 2022-07-16

Alternative parts:

Specification: M10x1.25x25@COLOR ZINC-PLATED

Price: 1,50 € : 1,50 €

02

P/N (SKU): 5HY0-300101

Part Name: REAR DRIVE SHAFT

Effective: 2022-07-16

Alternative parts:

Price: 29,00 € : 29,00 €

03

P/N (SKU): 9GQ0-290104

Part Name: BIG CLAMP

Effective: 2022-07-16

Alternative parts:

Price: 2,50 € : 2,50 €

04

P/N (SKU): 5HY0-300102

Part Name: REAR DRIVE SHAFT SEAL BOOT

Effective: 2022-07-16

Alternative parts:

Price: 2,00 € : 2,00 €

05

P/N (SKU): 30006-102025810

Part Name: BOLT

Effective: 2022-07-16

Alternative parts:

Specification: M10Ã1.25Ã25

Price: 1,50 € : 1,50 €

06

P/N (SKU): 5SYV-290300-6000

Part Name: FRONT DRIVE SHAFT

Effective: 2022-07-16

Alternative parts:

Price: 315,00 € : 315,00 €

07

P/N (SKU): 9CR6-300204

Part Name: SMALL CLAMP

Effective: 2022-07-16

Alternative parts:

Price: 3,00 € : 3,00 €

08

P/N (SKU): 30800-02205

Part Name: CIRCLIP FOR HOLE

Effective: 2022-07-16

Alternative parts:

Specification: 22

Price: 1,50 € : 1,50 €

09

P/N (SKU): 9GQ0-290210

Part Name: CROSS SHAFT, UNIVERSAL JOINT

Effective: 2022-07-16

Alternative parts:

Price: 20,00 € : 20,00 €

10

P/N (SKU): 9CR6-300206-10000

Part Name: REAR GEAR CASE DRIVE SLEEVE

Effective: 2022-07-16

Alternative parts:

Price: 61,00 € : 61,00 €

11

P/N (SKU): 30102-102020810

Part Name: SCREW

Effective: 2022-07-16

Alternative parts:

Specification: M10x1.25x20@COLOR ZINC-PLATED

Price: 2,50 € : 2,50 €

12

P/N (SKU): 30204-102810

Part Name: NUT

Effective: 2022-07-16

Alternative parts:

Specification: M10Ã1.25

Price: 1,50 € : 1,50 €

13

P/N (SKU): 30601-108010

Part Name: CLAMP

Effective: 2022-07-16

Alternative parts:

Specification: A8@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

14

P/N (SKU): 9010-310001

Part Name: FRONT GEAR CASE BREATHER HOSE

Effective: 2022-07-16

Alternative parts:

Price: 5,00 € : 5,00 €

15

P/N (SKU): 30006-102130810

Part Name: BOLT

Effective: 2022-07-16

Alternative parts:

Specification: M10x1.25x130@COLOR ZINC TRIVALENT CHROMIUM

Price: 4,00 € : 4,00 €

16

P/N (SKU): 30006-102120810

Part Name: BOLT

Effective: 2022-07-16

Alternative parts:

Specification: M10Ã1.25Ã120@COLOR ZINC TRIVALENT CHROMIUM

Price: 3,00 € : 3,00 €

17

P/N (SKU): 9010-300002

Part Name: WASHER Dia 10

Effective: 2022-07-16

Alternative parts:

Specification: Dia 10

Price: 1,50 € : 1,50 €

18

P/N (SKU): 3120100

Part Name: OIL CUP

Effective: 2022-07-16

Alternative parts:

Price: 1,50 € : 1,50 €
