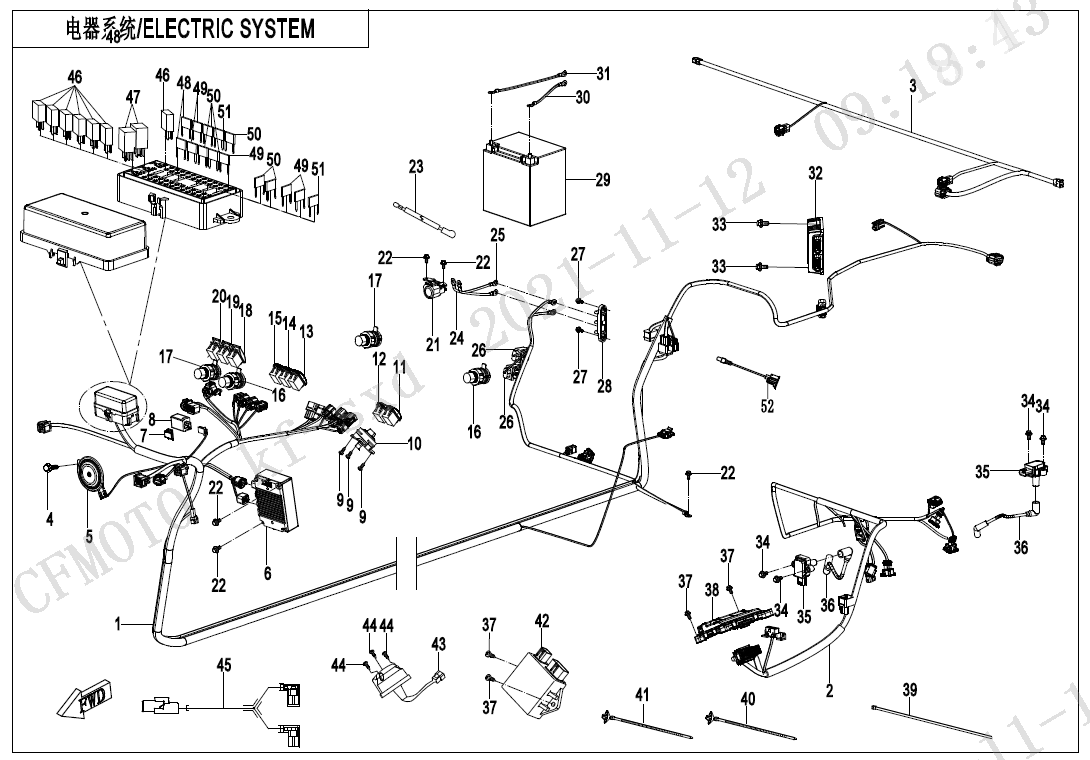

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 5SYV-150100-6000
Part Name: MAIN CABLE
Effective: 2021-11-15
Alternative parts:
Price: 626,50 € : 626,50 €
-+
02
P/N (SKU): 5SYV-150200-6000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-11-15
Alternative parts:
Price: 258,70 € : 258,70 €
-+
03
P/N (SKU): 5HY0-150300-20000
Part Name: TAIL LIGHT AUXILIARY CABLE
Effective: 2021-11-15
Alternative parts: 5HYV-150300-1F00
Price: 42,50 € : 42,50 €
04
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Specification: M8×14
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2021-11-15
Alternative parts:
Price: 9,70 € : 9,70 €
-+
06
P/N (SKU): 5HY0-150810-10000
Part Name: EPS CONTROLLER
Effective: 2021-11-15
Alternative parts: 5HYV-150810-1800
Price: 316,90 € : 316,90 €
06
P/N (SKU): 5HYV-150810-1800
Part Name: EPS CONTROLLER
Effective: 2022-10-27
Alternative parts:
Price: 305,70 € : 305,70 €
-+
07
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-11-15
Alternative parts:
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 9AWA-150340-10000
Part Name: FLASHER
Effective: 2021-11-15
Alternative parts:
Price: 10,20 € : 10,20 €
-+
09
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-11-15
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 5ASV-160700-6000
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-11-15
Alternative parts:
Price: 33,52 € : 33,52 €
-+
11
P/N (SKU): 5ASV-169030-6001
Part Name: DIMMER SWITCH
Effective: 2021-11-15
Alternative parts: 5ASV-169030-5300
Price: 14,25 € : 14,25 €
-+
12
P/N (SKU): 5ASV-169020-6001
Part Name: ILLUMINATION SWITCH
Effective: 2021-11-15
Alternative parts: 5ASV-169020-5300
Price: 14,25 € : 14,25 €
-+
13
P/N (SKU): 5ASV-169010-6001
Part Name: STOP SWICH
Effective: 2021-11-15
Alternative parts:
Price: 14,25 € : 14,25 €
-+
14
P/N (SKU): 5ASV-169090-6001
Part Name: MODE SWITCH
Effective: 2021-11-15
Alternative parts: 5ASV-169090-5300
Price: 14,25 € : 14,25 €
-+
15
P/N (SKU): 5ASV-169050-6001
Part Name: OVERRIDE SWITCH
Effective: 2021-11-15
Alternative parts:
Price: 14,25 € : 14,25 €
-+
16
P/N (SKU): 6WWV-150500-5000-10
Part Name: POWER OUTLET SOCKET
Effective: 2021-11-15
Alternative parts: 6WWV-151100-4000
Price: 23,92 € : 23,92 €
-+
17
P/N (SKU): 6WWV-150600-5000-10
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-11-15
Alternative parts: 6WWV-151200-4000
Price: 49,36 € : 49,36 €
-+
18
P/N (SKU): 5ASV-169040-6001
Part Name: HORN SWITCH
Effective: 2021-11-15
Alternative parts: 5ASV-169040-5300
Price: 14,25 € : 14,25 €
-+
19
P/N (SKU): 5ASV-169060-6001
Part Name: TURN SWITCH
Effective: 2021-11-15
Alternative parts: 5ASV-169060-5300
Price: 14,25 € : 14,25 €
-+
20
P/N (SKU): 5ASV-169070-6001
Part Name: HAZARD SWITCH
Effective: 2021-11-15
Alternative parts:
Price: 14,25 € : 14,25 €
-+
21
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-11-15
Alternative parts:
Price: 23,30 € : 23,30 €
-+
22
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
23
P/N (SKU): 5HY0-150220
Part Name: CABLE,STARTER
Effective: 2021-11-15
Alternative parts:
Price: 21,20 € : 21,20 €
-+
24
P/N (SKU): 5HY0-150240-10000
Part Name: CABLE, STARTER RELAY
Effective: 2021-11-15
Alternative parts:
Price: 12,00 € : 12,00 €
-+
25
P/N (SKU): 5HY0-150250-10000
Part Name: NEGATIVE CABLE, STARTER
Effective: 2021-11-15
Alternative parts:
Price: 13,20 € : 13,20 €
-+
26
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2021-11-15
Alternative parts:
Specification: 40A
Price: 3,50 € : 3,50 €
-+
27
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
28
P/N (SKU): 5SY0-151610-6000
Part Name: TERMINAL, CABLE
Effective: 2021-11-15
Alternative parts:
Specification: WITH KAIDI PLUG
Price: 10,56 € : 10,56 €
-+
29
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-11-15
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
30
P/N (SKU): 5HY0-150230-10000
Part Name: BATTERY NEGATIVE WIRE
Effective: 2021-11-15
Alternative parts:
Price: 14,00 € : 14,00 €
-+
31
P/N (SKU): 5HY0-150210-10000
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-11-15
Alternative parts:
Price: 14,00 € : 14,00 €
-+
32
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Effective: 2021-11-15
Alternative parts: 9DSV-151000-4000
Specification: 600W
Price: 133,90 € : 133,90 €
-+
33
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Specification: M6×30
Price: 1,00 € : 1,00 €
-+
34
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Specification: M6×25
Price: 1,00 € : 1,00 €
-+
35
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-11-15
Alternative parts:
Price: 39,60 € : 39,60 €
-+
36
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-11-15
Alternative parts: 0GRB-178000-10000
Price: 15,30 € : 15,30 €
36
P/N (SKU): 0GRB-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2022-02-23
Alternative parts:
Price: 13,35 € : 13,35 €
-+
37
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,00 € : 1,00 €
38
P/N (SKU): 5SYV-001000-7000
Part Name: ECU ASSY
Effective: 2021-11-15
Remarks: T1B
Alternative parts:
Specification: EU 167
Price: 369,10 € : 369,10 €
-+
38
P/N (SKU): 5SYV-001000-7000-01
Part Name: ECU ASSY
Effective: 2021-11-15
Remarks: T1A
Alternative parts:
Specification: EU 167
Price: 369,10 € : 369,10 €
-+
39
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-11-15
Alternative parts:
Price: 1,00 € : 1,00 €
-+
40
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-11-15
Alternative parts:
Specification: 5x250
Price: 1,30 € : 1,30 €
-+
41
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2021-11-15
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,00 € : 1,00 €
-+
42
P/N (SKU): 9AWA-150880-20000
Part Name: DRL CONTROLLER
Effective: 2021-11-15
Alternative parts: 5SYV-150880-7500
Price: 42,72 € : 42,72 €
-+
43
P/N (SKU): 7020-150800-20000
Part Name: TRAILER POWER SOCKET
Effective: 2021-11-15
Alternative parts:
Price: 17,30 € : 17,30 €
-+
44
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-11-15
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
45
P/N (SKU): 5HYV-150191-2900
Part Name: HORN ADAPTER CABLE
Effective: 2021-11-15
Alternative parts: 5HYV-150191-2F00
Price: 12,10 € : 12,10 €
46
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2021-11-15
Alternative parts:
Price: 7,00 € : 7,00 €
-+
47
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-11-15
Alternative parts:
Price: 6,70 € : 6,70 €
-+
48
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2021-11-15
Alternative parts:
Price: 1,00 € : 1,00 €
-+
49
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-11-15
Alternative parts:
Specification: 15A
Price: 1,00 € : 1,00 €
-+
50
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-11-15
Alternative parts:
Specification: 10A
Price: 2,20 € : 2,20 €
-+
51
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2021-11-15
Alternative parts:
Specification: 5A
Price: 1,00 € : 1,00 €
-+
52
P/N (SKU): 0JWA-012202-10000
Part Name: OIL PRESSURE SWITCH ADAPTOR CABLE
Effective: 2021-11-15
Alternative parts:
Price: 11,95 € : 11,95 €
-+
