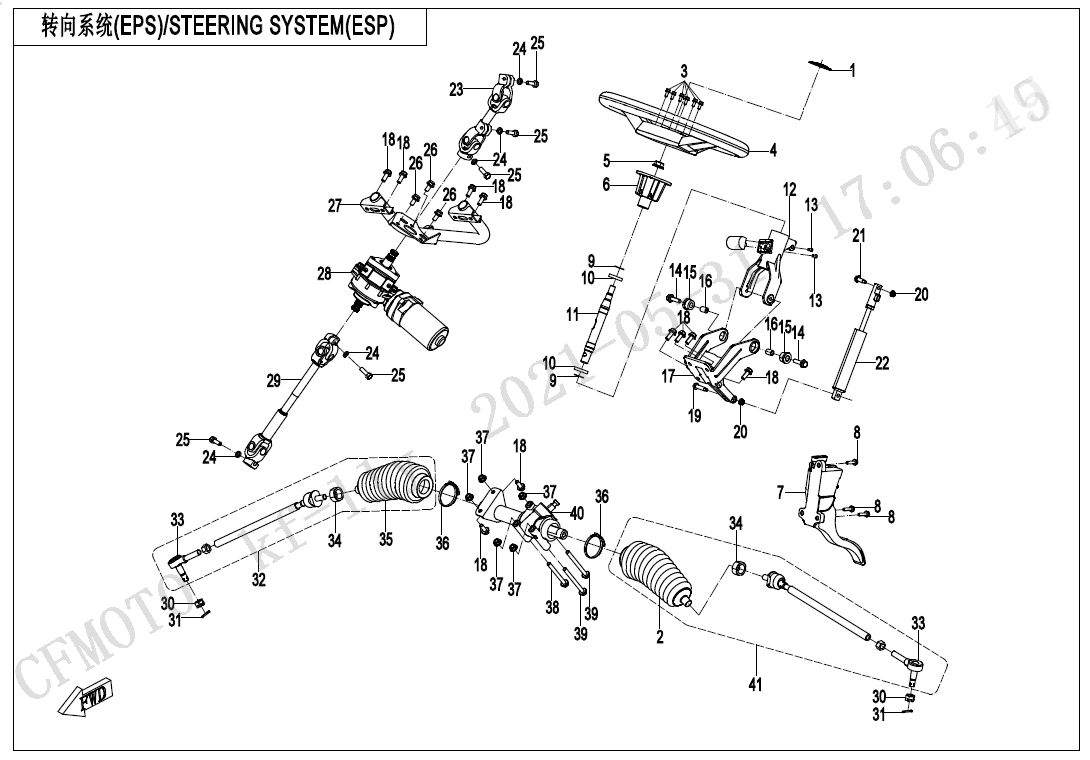

STEERING SYSTEM(EPS) - F10

STEERING SYSTEM(EPS) - F10

No.

01
P/N (SKU): 5ASV-190019-6000
Part Name: CFMOTO STICKER
Effective: 2021-06-28
Price: 17,00 € : 17,00 €
-+
02
P/N (SKU): 5BY0-104101
Part Name: LH PROTECTION SLEEVE, TIE ROD
Effective: 2021-06-28
Price: 17,00 € : 17,00 €
-+
03
P/N (SKU): 30006-050012810
Part Name: BOLT M5x12
Effective: 2021-06-28
Specification: M5x12
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5ASV-102100-6000
Part Name: STEERING WHEEL
Effective: 2021-06-28
Price: 106,00 € : 106,00 €
-+
05
P/N (SKU): 30204-122810
Part Name: NUT M12x1.25
Effective: 2021-06-28
Specification: M12x1.25
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 7030-100002
Part Name: FIXED SEAT, STEERING WHEEL
Effective: 2021-06-28
Price: 24,00 € : 24,00 €
-+
07
P/N (SKU): 5HY0-105000
Part Name: THROTTLE PEDAL, ELECTRIC
Effective: 2021-06-28
Price: 56,00 € : 56,00 €
-+
08
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Effective: 2021-06-28
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT 20
Effective: 2021-06-28
Specification: 20
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30400-02005
Part Name: BEARING
Effective: 2021-06-28
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
11
P/N (SKU): 7000-100001
Part Name: STEERING COLUMN
Effective: 2021-06-28
Price: 24,00 € : 24,00 €
-+
12
P/N (SKU): 9060-101008-00001
Part Name: MOUNING BRACKET, STEERING WHEEL
Effective: 2021-06-28
Price: 40,00 € : 40,00 €
-+
13
P/N (SKU): 30107-060012410
Part Name: SCREW M6x12
Effective: 2021-06-28
Specification: M6x12
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30006-080028810
Part Name: BOLT M8x28
Effective: 2021-06-28
Specification: M8x28
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9060-100008-00001
Part Name: METAL BUSHING, STEERING COLUMN
Effective: 2021-06-28
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9060-100009
Part Name: NYLON BUSHING, STEERING COLUMN
Effective: 2021-06-28
Price: 6,00 € : 6,00 €
-+
17
P/N (SKU): 9060-101009-00001
Part Name: BRACKET, AIR SPRING
Effective: 2021-06-28
Price: 43,00 € : 43,00 €
-+
18
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Effective: 2021-06-28
Specification: M8x20
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9060-102003-00002
Part Name: LOWER LOCK BOLT, GAS SPRING
Effective: 2021-06-28
Price: 3,00 € : 3,00 €
-+
20
P/N (SKU): 30204-060810
Part Name: NUT M6
Effective: 2021-06-28
Specification: M6
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9060-102002-00001
Part Name: UPPER FIXED BOLT, GAS SPRING
Effective: 2021-06-28
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 9060-102000-00001
Part Name: GAS SPRING
Effective: 2021-06-28
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 5HY0-103100
Part Name: UNIVERSAL SHAFT,STEERING
Effective: 2021-06-28
Price: 72,00 € : 72,00 €
-+
24
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2021-06-28
Specification: 8
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 30004-080030810
Part Name: BOLT
Effective: 2021-06-28
Alternative parts: 9CR6-102003
Specification: M8x30
Price: 1,50 € : 1,50 €
26
P/N (SKU): 30006-080016810
Part Name: BOLT M8x16
Effective: 2021-06-28
Specification: M8x16
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 5HY0-103400
Part Name: EPS BRACKET
Effective: 2021-06-28
Price: 29,00 € : 29,00 €
-+
28
P/N (SKU): 7030-106200-00001
Part Name: EPS ASSY
Effective: 2021-06-28
Price: 607,00 € : 607,00 €
-+
29
P/N (SKU): 5HY0-103200
Part Name: UNIVERSAL SHAFT,STEERING
Effective: 2021-06-28
Price: 73,00 € : 73,00 €
-+
30
P/N (SKU): 30219-122810
Part Name: NUT M12x1.25
Effective: 2021-06-28
Specification: M12x1.25
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-06-28
Specification: 3.2x22
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 5HY0-104200-20000
Part Name: RH STEERING ROD ASSY
Effective: 2021-06-28
Price: 87,00 € : 87,00 €
-+
33
P/N (SKU): 5BY0-104120
Part Name: HITCH BALL ASSY SQM
Effective: 2021-06-28
Price: 27,00 € : 27,00 €
-+
34
P/N (SKU): 5BY0-104102
Part Name: CLAMP
Effective: 2021-06-28
Price: 2,00 € : 2,00 €
-+
35
P/N (SKU): 5BY0-104201
Part Name: RH PROTECTION SLEEVE, TIE ROD
Effective: 2021-06-28
Price: 17,00 € : 17,00 €
-+
36
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-06-28
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-06-28
Specification: M8
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 30006-080080810
Part Name: BOLT M8x80
Effective: 2021-06-28
Alternative parts: 30006-080080840
Specification: M8x80
Price: 1,50 € : 1,50 €
-+
39
P/N (SKU): 30019-080090810
Part Name: BOLT M8x90
Effective: 2021-06-28
Specification: M8x90
Price: 2,00 € : 2,00 €
-+
40
P/N (SKU): 5HY0-104060
Part Name: STEERING MOTOR
Effective: 2021-06-28
Price: 101,00 € : 101,00 €
-+
41
P/N (SKU): 5HY0-104100-20000
Part Name: LH STEERING ROD ASSY
Effective: 2021-06-28
Price: 87,00 € : 87,00 €
-+
