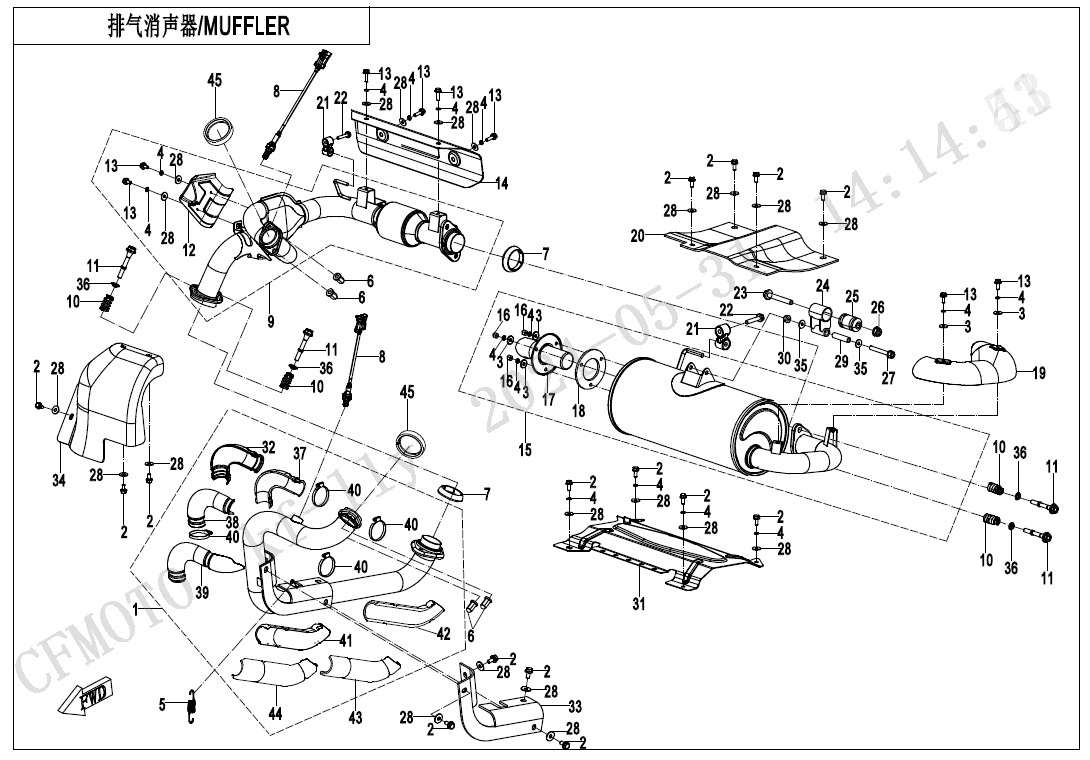

MUFFLER - F02-B-V1

MUFFLER - F02-B-V1

No.

01
P/N (SKU): 5HY0-021100-20000
Part Name: FRONT ELBOW PIPE ASSY
Effective: 2021-06-28
Alternative parts:
Price: 175,00 € : 175,00 €
-+
02
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-06-28
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
03
P/N (SKU): 30306-060112
Part Name: WASHER
Effective: 2021-06-28
Alternative parts: 30306-060142
Specification: φ6
Price: 1,50 € : 1,50 €
04
P/N (SKU): 30303-060010
Part Name: WASHER
Effective: 2021-06-28
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
05
P/N (SKU): 9030-020002
Part Name: SPRING
Effective: 2021-06-28
Alternative parts:
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-06-28
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9AWA-021004-00001
Part Name: GRAPHITE RING, BIG
Effective: 2021-06-28
Alternative parts: 9AWA-021004-00002
Price: 14,00 € : 14,00 €
08
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2021-06-28
Alternative parts:
Price: 84,00 € : 84,00 €
-+
09
P/N (SKU): 5HY0-021200-30000
Part Name: REAR ELBOW PIPE ASSY
Effective: 2021-06-28
Alternative parts: 5HY0-021200-30001
Price: 670,00 € : 670,00 €
09
P/N (SKU): 5HY0-021200-30001
Part Name: REAR ELBOW PIPE ASSY
Effective: 2021-09-23
Alternative parts:
Price: 665,00 € : 665,00 €
-+
10
P/N (SKU): 9AWA-021001
Part Name: MUFFLER SPRING
Effective: 2021-06-28
Alternative parts:
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 9AWA-021002-10000
Part Name: BOLT M8x55
Effective: 2021-06-28
Alternative parts:
Specification: M8x55
Price: 6,00 € : 6,00 €
-+
12
P/N (SKU): 5HY0-021201-20000
Part Name: HEAT INSULATOR, REAR PIPE
Effective: 2021-06-28
Alternative parts:
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 30000-060012700
Part Name: BOLT
Effective: 2021-06-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 5HY0-021202
Part Name: REAR HEAT INSULATOR
Effective: 2021-06-28
Alternative parts:
Price: 14,00 € : 14,00 €
-+
15
P/N (SKU): 5HY0-021300-10000
Part Name: MUFFLER BODY ASSY
Effective: 2021-06-28
Alternative parts:
Price: 466,00 € : 466,00 €
-+
16
P/N (SKU): 30206-060540
Part Name: NUT M6
Effective: 2021-06-28
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5BY2-021400-10000
Part Name: SPAPK ARRESTOR
Effective: 2021-06-28
Alternative parts: 5BY2-021400-10001
Price: 29,00 € : 29,00 €
18
P/N (SKU): 5HY0-021302
Part Name: SEAL GASKET
Effective: 2021-06-28
Alternative parts:
Price: 11,00 € : 11,00 €
-+
19
P/N (SKU): 5HY0-021301-10000
Part Name: HEAT INSULATOR, MUFFLER EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 9,50 € : 9,50 €
-+
20
P/N (SKU): 5HY0-020001
Part Name: HEAT INSULATION PLATE, UPPER
Effective: 2021-06-28
Alternative parts:
Price: 15,00 € : 15,00 €
-+
21
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-06-28
Alternative parts:
Price: 12,00 € : 12,00 €
-+
22
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2021-06-28
Alternative parts:
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2021-06-28
Alternative parts:
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 9CR6-020020
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-06-28
Alternative parts:
Price: 9,50 € : 9,50 €
-+
25
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-06-28
Alternative parts:
Price: 4,00 € : 4,00 €
-+
26
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-06-28
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-080060810
Part Name: BOLT
Effective: 2021-06-28
Alternative parts:
Specification: M8x60
Price: 2,50 € : 2,50 €
-+
28
P/N (SKU): 30309-060900
Part Name: WASHER
Effective: 2021-06-28
Alternative parts: 30305-060112
Price: 1,50 € : 1,50 €
29
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2021-06-28
Alternative parts:
Price: 2,50 € : 2,50 €
-+
30
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-06-28
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 5HY0-020004
Part Name: HEAT INSULATION PLATE,REAR GEAR CASE
Effective: 2021-06-28
Alternative parts:
Price: 18,00 € : 18,00 €
-+
32
P/N (SKU): 5HY0-021101-10000
Part Name: HEAT INSULATOR 1, FRONT ELBOW PIPE
Effective: 2021-06-28
Alternative parts:
Price: 6,50 € : 6,50 €
-+
33
P/N (SKU): 5HY0-020003
Part Name: HEAT INSULATOR 2, EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 8,00 € : 8,00 €
-+
34
P/N (SKU): 5HY0-020002
Part Name: FRONT HEAT SHIELD
Effective: 2021-06-28
Alternative parts:
Price: 27,00 € : 27,00 €
-+
35
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2021-06-28
Alternative parts:
Price: 2,00 € : 2,00 €
-+
36
P/N (SKU): 9AWA-021005
Part Name: BUSHING
Effective: 2021-06-28
Alternative parts:
Price: 7,50 € : 7,50 €
-+
37
P/N (SKU): 5HY0-021102
Part Name: HEAT INSULATOR 1, FRONT EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 8,50 € : 8,50 €
-+
38
P/N (SKU): 5HY0-021103
Part Name: HEAT INSULATOR 2, FRONT EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 8,50 € : 8,50 €
-+
39
P/N (SKU): 5HY0-021104
Part Name: HEAT INSULATION PLATE 2, EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 8,00 € : 8,00 €
-+
40
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-06-28
Alternative parts:
Specification: 50-70
Price: 3,00 € : 3,00 €
-+
41
P/N (SKU): 5HY0-021105
Part Name: HEAT INSULATOR 3, EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 6,50 € : 6,50 €
-+
42
P/N (SKU): 5HY0-021106
Part Name: HEAT INSULATOR 3, EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 9,00 € : 9,00 €
-+
43
P/N (SKU): 5HY0-021107
Part Name: HEAT INSULATOR 4, EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 9,00 € : 9,00 €
-+
44
P/N (SKU): 5HY0-021108
Part Name: HEAT INSULATOR 4, EXHAUST PIPE
Effective: 2021-06-28
Alternative parts:
Price: 6,00 € : 6,00 €
-+
45
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-06-28
Alternative parts:
Price: 4,50 € : 4,50 €
-+
