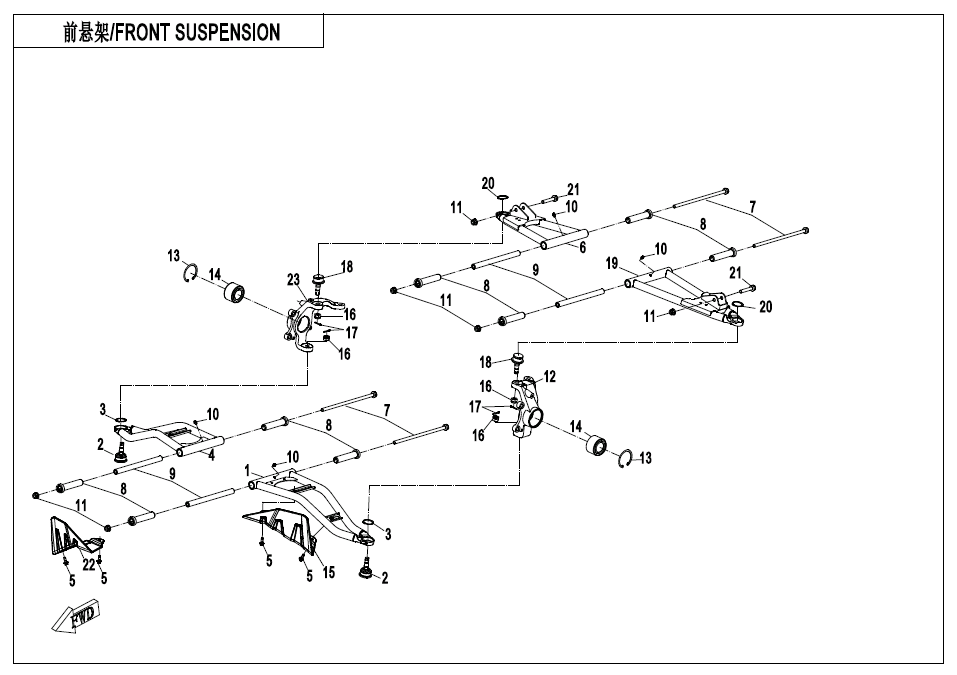

FRONT SUSPENSION - F05-1-V1

FRONT SUSPENSION - F05-1-V1

No.

01
P/N (SKU): 5HY0-050210
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2021-06-28
Alternative parts: 5HYV-050210-1C00
Price: 76,00 € : 76,00 €
-+
01
P/N (SKU): 5HYV-050210-1C00
Part Name: FRONT LOWER SWING ARM, LH
Effective: 2021-12-21
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 79,00 € : 79,00 €
-+
02
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2021-06-28
Remarks: CCVI
Alternative parts:
Specification: CCVI
Price: 23,00 € : 23,00 €
-+
02
P/N (SKU): 9060-050900
Part Name: LOWER PIN ASSY
Effective: 2021-06-28
Remarks: SOMIC
Alternative parts: 9060-050900-10000
Specification: SOMIC
Price: 34,00 € : 34,00 €
-+
03
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-06-28
Alternative parts:
Specification: 34
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5HY0-050410
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2021-06-28
Alternative parts: 5HYV-050410-1C00
Price: 77,00 € : 77,00 €
04
P/N (SKU): 5HYV-050410-1C00
Part Name: FRONT LOWER SWING ARM, RH
Effective: 2021-12-21
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 75,00 € : 75,00 €
-+
05
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-06-28
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
06
P/N (SKU): 5HY0-050310
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-06-28
Alternative parts: 5HYV-050310-1C00
Price: 73,00 € : 73,00 €
-+
06
P/N (SKU): 5HYV-050310-1C00
Part Name: FRONT UPPER SWING ARM, RH
Effective: 2021-12-21
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 72,00 € : 72,00 €
-+
07
P/N (SKU): 4060-060101
Part Name: REAR SWING ARM MOUNTING SHAFT
Effective: 2021-06-28
Alternative parts:
Price: 5,00 € : 5,00 €
-+
08
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 10,00 € : 10,00 €
-+
09
P/N (SKU): 9060-060101-00002
Part Name: REAR UPPER SWING ARM MIDDLE SPACER
Effective: 2021-06-28
Alternative parts:
Price: 7,50 € : 7,50 €
-+
10
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-06-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-06-28
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HY0-050701-10000
Part Name: LH STEERING KNUCKLE
Effective: 2021-06-28
Alternative parts:
Price: 61,00 € : 61,00 €
-+
13
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2021-06-28
Alternative parts:
Specification: 60
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-06-28
Alternative parts: 30411-03081
Price: 43,00 € : 43,00 €
15
P/N (SKU): 5ASV-050201-6000
Part Name: GUARD, FRONT LH SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 8,00 € : 8,00 €
-+
16
P/N (SKU): 30219-122810
Part Name: NUT
Effective: 2021-06-28
Alternative parts:
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-06-28
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2021-06-28
Remarks: CCVI
Alternative parts:
Specification: CCVI
Price: 22,00 € : 22,00 €
-+
18
P/N (SKU): 9030-050600
Part Name: MAIN PIN ASSY
Effective: 2021-06-28
Remarks: SOMIC
Alternative parts: 9030-050600-10000
Specification: SOMIC
Price: 38,00 € : 38,00 €
19
P/N (SKU): 5HY0-050110
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2021-06-28
Alternative parts: 5HYV-050110-1C00
Price: 71,00 € : 71,00 €
-+
19
P/N (SKU): 5HYV-050110-1C00
Part Name: FRONT UPPER SWING ARM, LH
Effective: 2021-12-21
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 72,00 € : 72,00 €
-+
20
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-06-28
Alternative parts:
Specification: 32 A-TYPE
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30006-102055110
Part Name: BOLT
Effective: 2021-06-28
Alternative parts:
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5ASV-050401-6000
Part Name: GUARD, FRONT RH SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 8,00 € : 8,00 €
-+
23
P/N (SKU): 5HY0-050801-10000
Part Name: RH STEERING KNUCKLE
Effective: 2021-06-28
Alternative parts:
Price: 61,00 € : 61,00 €
-+
