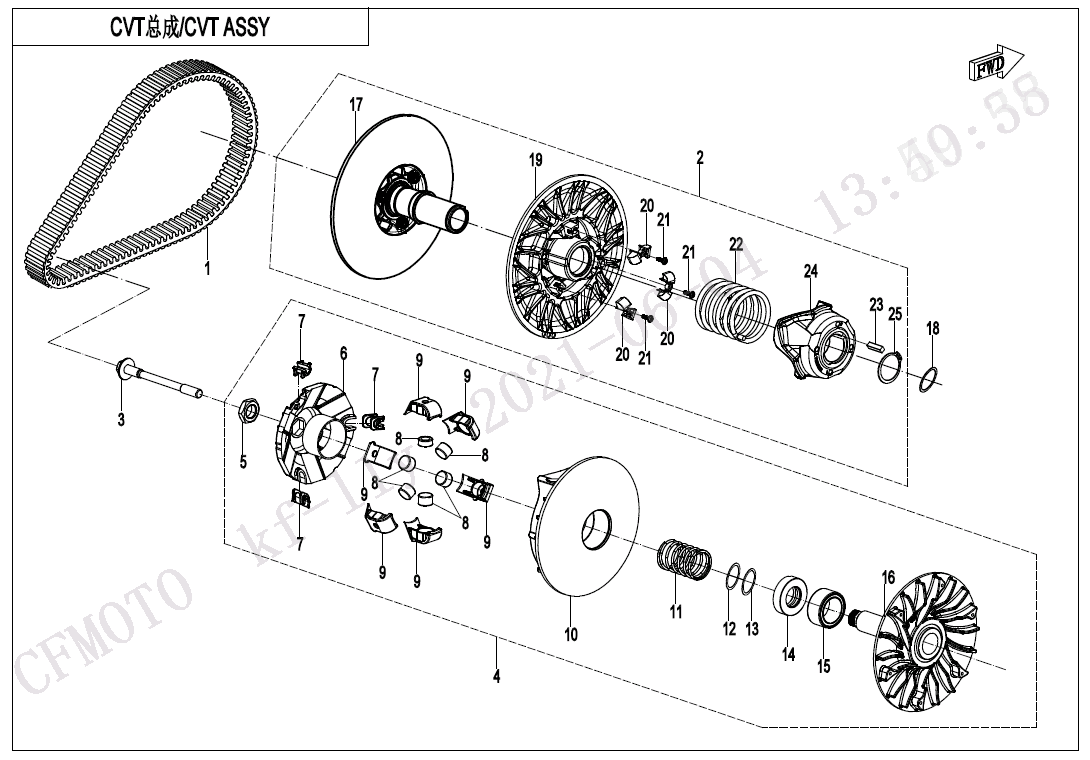

CVT ASSY(FOR MECHANICAL DOWNHILL BRAKING) - E05-B | 2022,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0JWA-055000-10000

Part Name: TOOTHED DRIVE BELT

Effective: 2021-06-18

Alternative parts:

Price: 202,00 € : 202,00 €

02

P/N (SKU): 0JYA-052000-50000

Part Name: DRIVEN PULLEY ASSY.

Effective: 2021-06-18

Alternative parts: 0JYA-052000-50001

Price: 640,00 € : 640,00 €

03

P/N (SKU): 0JY0-050001-00001

Part Name: BOLT, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 5,50 € : 5,50 €

04

P/N (SKU): 0JYA-051000-50000

Part Name: DRIVE PULLEY ASSY.

Effective: 2021-06-18

Remarks: FOR DOWNHILL BRAKING

Alternative parts: 0JYA-051000-50001

Price: 885,00 € : 885,00 €

05

P/N (SKU): 0JYA-051013-10000

Part Name: NUT, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts: 0JYA-051013-10001

Specification: CVtech

Price: 80,00 € : 80,00 €

06

P/N (SKU): 0JYA-051006-10000

Part Name: THRUST COLLAR

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 327,00 € : 327,00 €

07

P/N (SKU): 0JYA-051004-10000

Part Name: NYLON PARTS, THRUST DISC

Effective: 2021-06-18

Alternative parts:

Price: 11,00 € : 11,00 €

08

P/N (SKU): 0JYA-051001

Part Name: WEIGHT ROLLER

Effective: 2021-06-18

Alternative parts:

Specification: 20G

Price: 27,00 € : 27,00 €

09

P/N (SKU): 0GR0-051005

Part Name: NYLON PROTECTOR, WEIGHT ROLLER

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 20,00 € : 20,00 €

10

P/N (SKU): 0JYA-051100

Part Name: MOVING PLATE ASSY, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 346,00 € : 346,00 €

11

P/N (SKU): 0JY0-051002

Part Name: SPRING,DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 47,00 € : 47,00 €

12

P/N (SKU): 0GR0-051009-10000

Part Name: NYLON WASHER

Effective: 2021-06-18

Alternative parts:

Price: 15,00 € : 15,00 €

13

P/N (SKU): 0GR0-051011

Part Name: STEEL WASHER

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 15,00 € : 15,00 €

14

P/N (SKU): 0GR0-051001

Part Name: SPRING SEAT

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 60,00 € : 60,00 €

15

P/N (SKU): 0JYA-051210

Part Name: ONE-WAY BEARING, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 151,00 € : 151,00 €

16

P/N (SKU): 0JYA-051200

Part Name: DRIVE FIXED PULLEY ASSY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 529,00 € : 529,00 €

17

P/N (SKU): 0JYA-052011

Part Name: FIXED SHEAVE, DRIVEN PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 348,00 € : 348,00 €

18

P/N (SKU): 1F30-060002-00500

Part Name: ADJUSTING WASHER 20.2X28 T=1.5

Effective: 2021-06-18

Alternative parts:

Specification: T=1.5

Price: 2,00 € : 2,00 €

19

P/N (SKU): 0JYA-052010

Part Name: SLIDING SHEAVE, DRIVEN PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 246,00 € : 246,00 €

20

P/N (SKU): 0GR0-052005

Part Name: NYLON BLOCK

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 15,00 € : 15,00 €

21

P/N (SKU): 0GR0-052006

Part Name: SCREW

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 4,50 € : 4,50 €

22

P/N (SKU): 0JYA-052008

Part Name: SPRING, DRIVEN PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 48,00 € : 48,00 €

23

P/N (SKU): 0GR0-052003

Part Name: TAPER KEY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 4,00 € : 4,00 €

24

P/N (SKU): 0JYA-052009

Part Name: CAM PLATE

Effective: 2021-06-18

Alternative parts:

Price: 108,00 € : 108,00 €

25

P/N (SKU): 0GR0-052004

Part Name: CIRCLIP

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 15,00 € : 15,00 €
