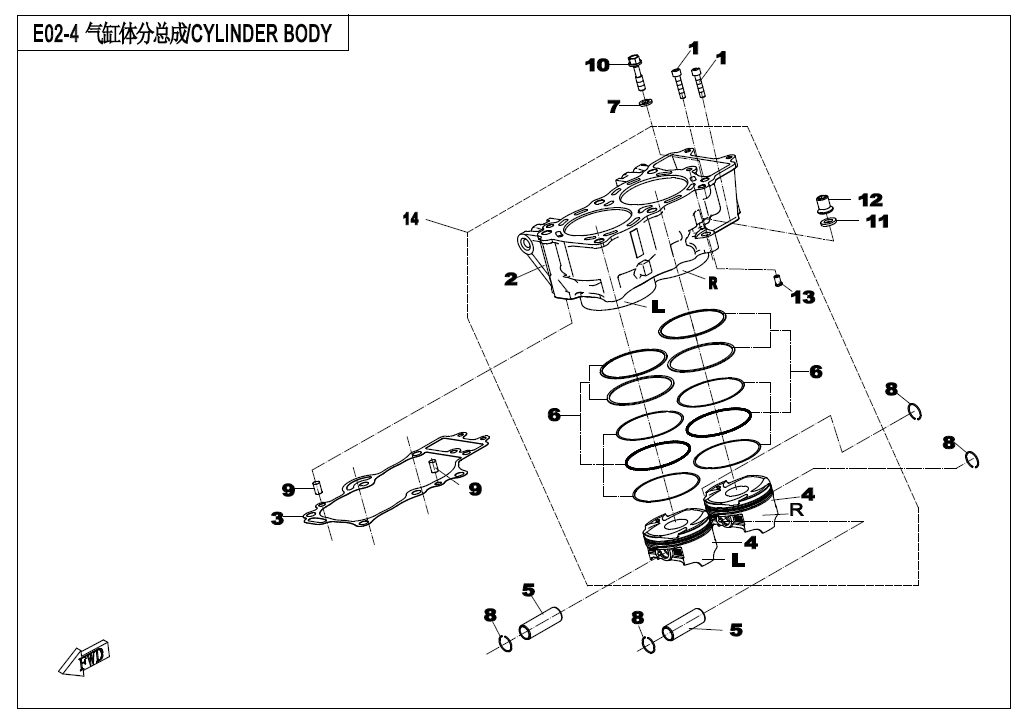

CYLINDER BODY - E02-4 | 2022, ENGINE, 283MT-C | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0060-030003-00001

Part Name: INNER HEX BOLT

Effective: 2021-07-01

Price: 1,50 € : 1,50 €

02

P/N (SKU): 0700-023001-4B200

Part Name: CYLINDER BODY

Effective: 2021-07-01

Alternative parts: 0700-023001-4B201/0700-023001-4B203/0700-023001-4B204

Specification: MATTE BLACK

Price: 207,00 € : 207,00 €

02

P/N (SKU): 0700-023001-4BY00

Part Name: CYLINDER BODY ASSY

Effective: 2021-07-27

Alternative parts: 0700-023001-4BY03/0700-023001-4BY04

Price: 297,00 € : 297,00 €

02

P/N (SKU): 0700-023001-4B201

Part Name: CYLINDER

Effective: 2022-07-02

Remarks: mate black

Alternative parts: 0700-023001-4B202/0700-023001-4B203/0700-023001-4B204

Price: 369,00 € : 369,00 €

02

P/N (SKU): 0700-023001-4BY01

Part Name: CYLINDER BODY

Effective: 2022-07-02

Remarks: nano black

Alternative parts: 0700-023001-4BY02/0700-023001-4BY03/0700-023001-4BY04

Specification: NANO BLACK

Price: 377,00 € : 377,00 €

03

P/N (SKU): 0700-023002-0001

Part Name: CYLINDER BODY GASKET

Effective: 2021-07-01

Price: 5,00 € : 5,00 €

04

P/N (SKU): 0700-040007-10011

Part Name: PISTON

Effective: 2021-07-01

Remarks: â

Alternative parts: 0700-040007-20010

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-10021

Part Name: PISTON

Effective: 2021-07-01

Remarks: â â

Alternative parts: 0700-040007-20020

Specification: MARK 2

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-10031

Part Name: PISTON

Effective: 2021-07-01

Remarks: â â â

Specification: MARK 3

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-20010

Part Name: PISTON

Effective: 2022-07-02

Specification: MARK 1

Price: 27,00 € : 27,00 €

04

P/N (SKU): 0700-040007-20020

Part Name: PISTON

Effective: 2022-07-02

Specification: MARK 2

Price: 28,00 € : 28,00 €

05

P/N (SKU): 0700-040008

Part Name: PISTON PIN

Effective: 2021-07-01

Price: 4,50 € : 4,50 €

06

P/N (SKU): 0700-0400A0

Part Name: PISTON RING ASSY

Effective: 2021-07-01

Price: 30,00 € : 30,00 €

07

P/N (SKU): 0700-023004

Part Name: WASHER

Effective: 2021-07-01

Specification: 8.5Ã15.5Ã2

Price: 1,50 € : 1,50 €

08

P/N (SKU): 0700-040009

Part Name: CIRCLIP, PISTON PIN

Effective: 2021-07-01

Price: 1,50 € : 1,50 €

09

P/N (SKU): 0700-022018

Part Name: SOLID PIN 8x14

Effective: 2021-07-01

Specification: 8x14

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0700-023003-00001

Part Name: BOLT M8x43

Effective: 2021-07-01

Alternative parts: 0700-023003-00002

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0700-023003-00002

Part Name: BOLT

Effective: 2021-08-06

Price: 2,00 € : 2,00 €

11

P/N (SKU): 0700-022016

Part Name: WASHER

Effective: 2021-07-01

Specification: 10.5x19x2.3

Price: 1,50 € : 1,50 €

12

P/N (SKU): 0700-011111-00001

Part Name: NUT M10x1.25

Effective: 2021-07-01

Alternative parts: 0700-011111-00002

Specification: M10x1.25

Price: 3,00 € : 3,00 €

12

P/N (SKU): 0700-011111-00002

Part Name: NUT

Effective: 2021-08-06

Price: 3,00 € : 3,00 €

13

P/N (SKU): 0700-023005

Part Name: RESTRICTION PLUG

Effective: 2021-07-01

Price: 2,00 € : 2,00 €

14

P/N (SKU): 0700-0230A0

Part Name: PISTON, CYLINDER BODY

Effective: 2021-07-01

Remarks: mate black

Price: 353,00 € : 353,00 €

14

P/N (SKU): SH-0700-0230B0

Part Name: PISTON, CYLINDER BODY

Effective: 2024-10-26

Remarks: nano black

Price: 185,00 € : 185,00 €
