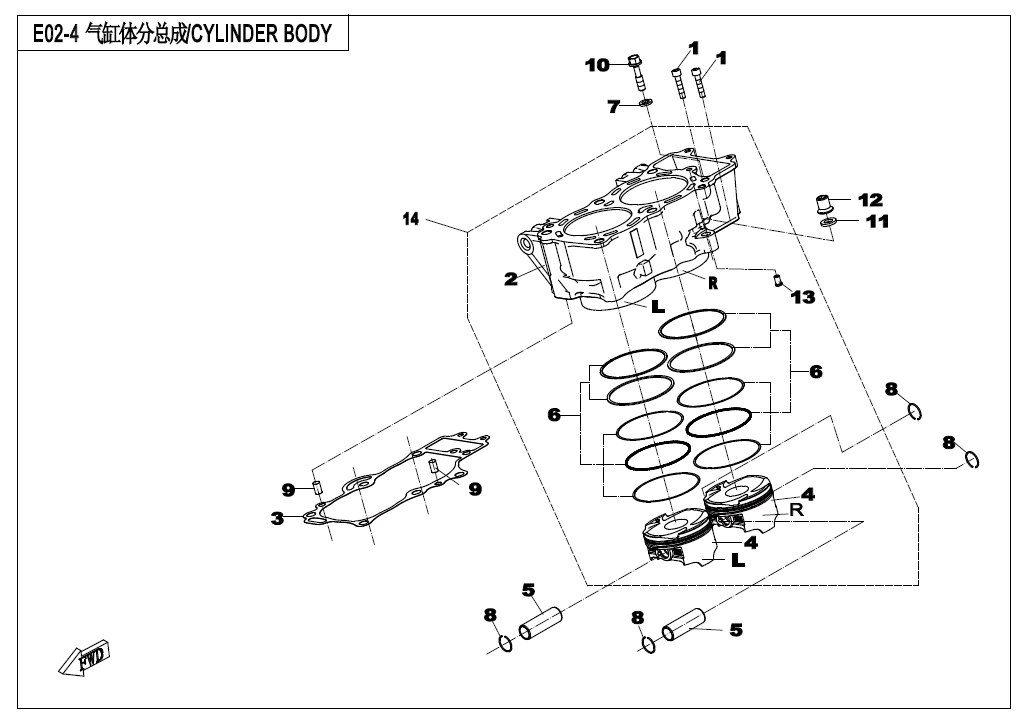

CYLINDER BODY - E02-4

CYLINDER BODY - E02-4

No.

01
P/N (SKU): 0060-030003-00001
Part Name: INNER HEX BOLT
Effective: 2021-07-01
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0700-023001-4B200
Part Name: CYLINDER BODY
Effective: 2021-07-01
Alternative parts: 0700-023001-4B201
Specification: MATTE BLACK
Price: 207,00 € : 207,00 €
02
P/N (SKU): 0700-023001-4BY00
Part Name: CYLINDER BODY ASSY
Effective: 2021-07-27
Price: 297,00 € : 297,00 €
-+
03
P/N (SKU): 0700-023002-0001
Part Name: GASKET, CYLINDER
Effective: 2021-07-01
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 0700-040007-10011
Part Name: PISTON
Effective: 2021-07-01
Remarks: Ⅰ
Price: 27,00 € : 27,00 €
-+
04
P/N (SKU): 0700-040007-10021
Part Name: PISTON
Effective: 2021-07-01
Remarks: ⅠⅠ
Price: 27,00 € : 27,00 €
-+
04
P/N (SKU): 0700-040007-10031
Part Name: PISTON
Effective: 2021-07-01
Remarks: ⅠⅠⅠ
Alternative parts: 0700-040007-00031
Price: 27,00 € : 27,00 €
05
P/N (SKU): 0700-040008
Part Name: PISTON PIN
Effective: 2021-07-01
Price: 4,50 € : 4,50 €
-+
06
P/N (SKU): 0700-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-07-01
Price: 30,00 € : 30,00 €
-+
07
P/N (SKU): 0700-023004
Part Name: WASHER 8.5x15.5x2
Effective: 2021-07-01
Specification: 8.5x15.5x2
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0700-040009
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-07-01
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2021-07-01
Specification: 8x14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0700-023003-00001
Part Name: BOLT M8x43
Effective: 2021-07-01
Alternative parts: 0700-023003-00002
Specification: M8x43
Price: 1,50 € : 1,50 €
10
P/N (SKU): 0700-023003-00002
Part Name: BOLT
Effective: 2021-08-06
Alternative parts: 0700-023003-00001
Price: 2,00 € : 2,00 €
11
P/N (SKU): 0700-022016
Part Name: WASHER 10.5x19x2.3
Effective: 2021-07-01
Specification: 10.5x19x2.3
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0700-011111-00001
Part Name: NUT M10x1.25
Effective: 2021-07-01
Alternative parts: 0700-011111-00002
Specification: M10x1.25
Price: 3,00 € : 3,00 €
12
P/N (SKU): 0700-011111-00002
Part Name: NUT
Effective: 2021-08-06
Alternative parts: 0700-011111-00001
Price: 3,00 € : 3,00 €
13
P/N (SKU): 0700-023005
Part Name: RESTRICTION PLUG
Effective: 2021-07-01
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 0700-0230A0
Part Name: PISTON, CYLINDER BODY
Effective: 2021-07-01
Price: 353,00 € : 353,00 €
-+
