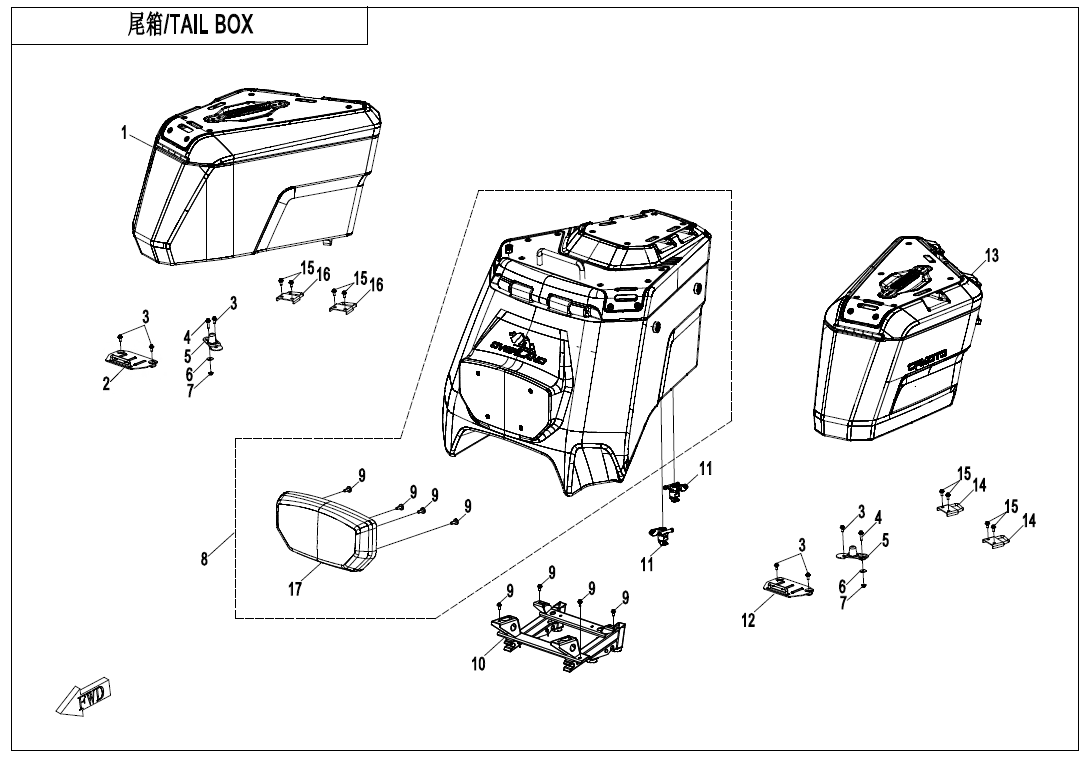

TAIL BOX(OVERLAND,THREE BOXES) - F80-5-B-V2 | 2022, ATV,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9AYV-800500-2A00

Part Name: RH TAIL BOX ASSY

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 617,00 € : 617,00 €

02

P/N (SKU): 9AYV-800504-2A00

Part Name: FRONT BRACKET, RH TAIL BOX

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 24,40 € : 24,40 €

03

P/N (SKU): 30102-060020810

Part Name: HEXAGON SOCKET HEAD CAP SCREWS

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: M6x20

Price: 1,50 € : 1,50 €

04

P/N (SKU): 30102-060040500

Part Name: HEXAGON SOCKET HEAD CAP SCREWS

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: M6x40

Price: 2,00 € : 2,00 €

05

P/N (SKU): 9AYV-800405-2A00

Part Name: REAR BRACKET, TAIL BOX

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 24,40 € : 24,40 €

06

P/N (SKU): 30301-060412

Part Name: PLAIN WASHERS

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: Ï6

Price: 1,50 € : 1,50 €

07

P/N (SKU): 30202-060110

Part Name: HEXAGON NUTS FLANGE

Effective: 2022-11-11

Remarks: null

Alternative parts: 30204-060810

Specification: M6@COLOR ZINC TRIVALENT CHROMI

Price: 1,50 € : 1,50 €

08

P/N (SKU): 9AYV-800300-2A00

Part Name: CENTER TAIL BOX ASSY

Effective: 2022-11-11

Remarks: null

Alternative parts: 9AYV-800300-2A01

Specification: null

Price: 744,00 € : 744,00 €

09

P/N (SKU): 6NQ#-000206-6001

Part Name: INNER HEX SCREW M6x16

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: M6x16

Price: 1,50 € : 1,50 €

10

P/N (SKU): 9AYV-801400-2A00

Part Name: BRACKET, CENTER RACK

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 78,31 € : 78,31 €

11

P/N (SKU): 9DS#-809800-6000

Part Name: QUICK RELEASE ASSY

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Price: 31,00 € : 31,00 €

12

P/N (SKU): 9AYV-800404-2A00

Part Name: FRONT BRACKET, LH TAIL BOX

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 24,40 € : 24,40 €

13

P/N (SKU): 9AYV-800400-2A00

Part Name: LH TAIL BOX ASSY

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 617,00 € : 617,00 €

14

P/N (SKU): 9AYV-800406-2A00

Part Name: LOCK SEAT, LH TAIL BOX

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 14,40 € : 14,40 €

15

P/N (SKU): 30006-060012810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2022-11-11

Remarks: null

Alternative parts: 30006-060012870

Specification: M6Ã12

Price: 1,50 € : 1,50 €

16

P/N (SKU): 9AYV-800506-2A00

Part Name: LOCK SEAT, RH TAIL BOX

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 14,40 € : 14,40 €

17

P/N (SKU): 9AYV-800210-2A01

Part Name: BACKREST ASSY

Effective: 2022-11-11

Remarks: null

Alternative parts: null

Specification: null

Price: 48,40 € : 48,40 €
