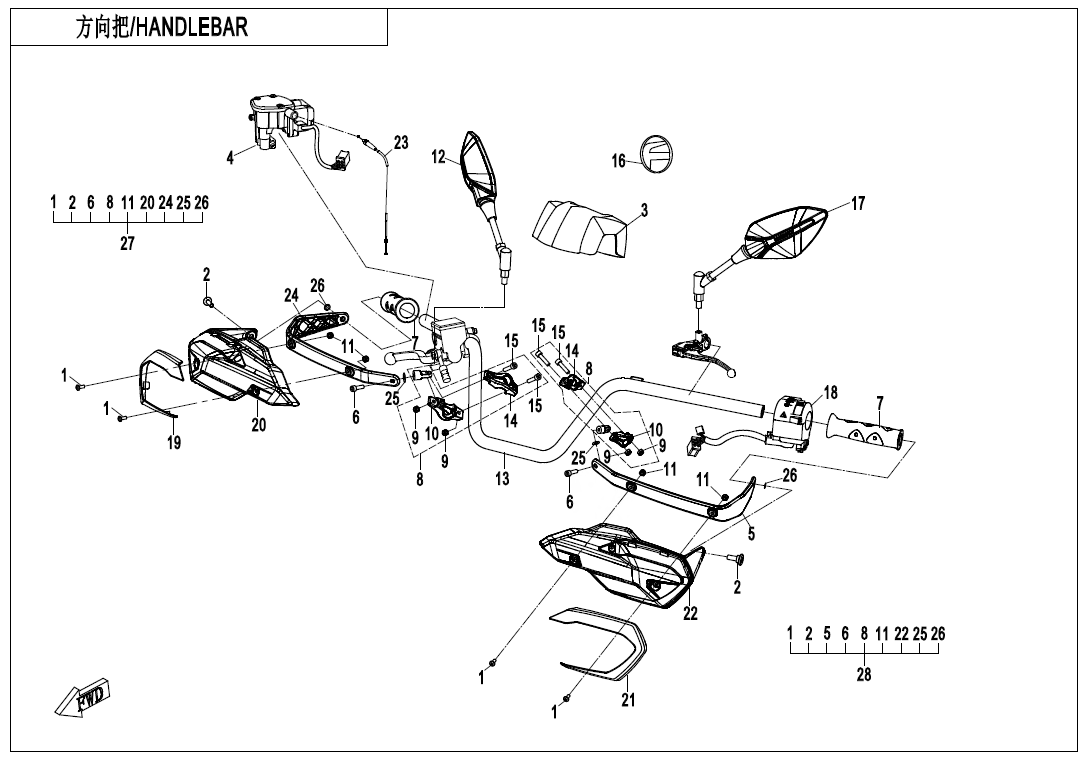

HANDLEBAR - F10-1-V1

HANDLEBAR - F10-1-V1

No.

01
P/N (SKU): A010-120003
Part Name: BOLT M6x16
Effective: 2021-07-12
Alternative parts: 6NQ#-000206-6001
Specification: M6x16
Price: 2,00 € : 2,00 €
02
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-07-12
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9AWV-100002-2E00
Part Name: HAND GUARD
Effective: 2021-07-12
Alternative parts:
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 9AYV-160320-2102
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-07-12
Remarks: FOR ON CAMMAND REAR AXLE
Alternative parts: 9AYV-160320-2100-10
Price: 142,00 € : 142,00 €
04
P/N (SKU): 9AYV-160320-2302
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-07-12
Remarks: FOR AUTOMATIC DIFFERENTIAL LOCK REAR AXLE AND NO DIFFERENTIAL REAR AXLE
Alternative parts: 9AYV-160320-2300-10
Price: 125,00 € : 125,00 €
05
P/N (SKU): 9AWA-101203-20000
Part Name: HANDGUARD LEVER, LH
Effective: 2021-07-12
Alternative parts:
Price: 7,00 € : 7,00 €
-+
06
P/N (SKU): A000-040703
Part Name: INNER HEX SCREW
Effective: 2021-07-12
Alternative parts:
Specification: M6x20
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-07-12
Alternative parts: 9DQV-100005-3000
Price: 7,50 € : 7,50 €
-+
08
P/N (SKU): 9AWA-101230-10000
Part Name: BRACKET ASSY
Effective: 2021-07-12
Alternative parts:
Price: 12,00 € : 12,00 €
-+
09
P/N (SKU): 30224-060810
Part Name: NUT
Effective: 2021-07-12
Alternative parts:
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Effective: 2021-07-12
Alternative parts:
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 30206-060570
Part Name: NUT
Effective: 2021-07-12
Alternative parts:
Specification: M6
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 9AY0-200300
Part Name: REAR VIEW MIRROR ASSY, RH
Effective: 2021-07-12
Alternative parts:
Price: 29,00 € : 29,00 €
-+
13
P/N (SKU): 9AWV-101100-2E00-0BU00
Part Name: HANDLEBAR ASSY
Effective: 2021-07-20
Alternative parts:
Specification: MIST SILVER BLACK
Price: 83,00 € : 83,00 €
-+
14
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Effective: 2021-07-12
Alternative parts:
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 30102-060022810
Part Name: SCREW
Effective: 2021-07-12
Alternative parts:
Specification: M6x22@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9AWV-190001-2E00
Part Name: CFMOTO STICKER
Effective: 2021-07-12
Alternative parts:
Price: 11,00 € : 11,00 €
-+
17
P/N (SKU): 9AY0-200200
Part Name: LH REARVIEW MIRROR ASSY
Effective: 2021-07-12
Alternative parts:
Price: 29,00 € : 29,00 €
-+
18
P/N (SKU): 9AWV-160310-2C01
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-07-12
Alternative parts: 9AWV-160310-2C02
Specification: WITH TURN LIGHT SWITCH
Price: 124,00 € : 124,00 €
-+
18
P/N (SKU): 9AWV-160310-2C02
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-11-11
Alternative parts: 9AWV-160310-2C00-10
Specification: WITH TURN LIGHT SWITCH
Price: 124,00 € : 124,00 €
-+
19
P/N (SKU): 9AWA-101302-0EC00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
19
P/N (SKU): 9AWA-101302-0RE00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
19
P/N (SKU): 9AWA-101302-0YD00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: LAVA ORANGE
Price: 7,00 € : 7,00 €
-+
19
P/N (SKU): 9AWA-101302-0H900
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: GHOST GREY
Price: 5,50 € : 5,50 €
-+
20
P/N (SKU): 9AWA-101301-10000
Part Name: RH HAND GUARD COVER
Effective: 2021-07-12
Alternative parts:
Price: 10,00 € : 10,00 €
-+
21
P/N (SKU): 9AWA-101202-0EC00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 9AWA-101202-0RE00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 9AWA-101202-0YD00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: LAVA ORANGE
Price: 7,00 € : 7,00 €
-+
21
P/N (SKU): 9AWA-101202-0H900
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-12
Alternative parts:
Specification: GHOST GREY
Price: 5,50 € : 5,50 €
-+
22
P/N (SKU): 9AWA-101201-10000
Part Name: HAND GUARD, LH
Effective: 2021-07-12
Alternative parts:
Price: 10,00 € : 10,00 €
-+
23
P/N (SKU): 9AYV-100500-2800
Part Name: THROTTLE CABLE
Effective: 2021-07-12
Alternative parts:
Price: 12,00 € : 12,00 €
-+
24
P/N (SKU): 9AWA-101303-10000
Part Name: RH HANDGUARD LEVER
Effective: 2021-07-12
Alternative parts:
Price: 6,50 € : 6,50 €
-+
25
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-07-12
Alternative parts:
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2021-07-12
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 9AWA-1013A0
Part Name: RH HAND GUARD ASSY
Effective: 2021-07-12
Alternative parts:
Price: 24,00 € : 24,00 €
-+
28
P/N (SKU): 9AWA-1012A0
Part Name: LH HAND GUARD
Effective: 2021-07-12
Alternative parts:
Price: 24,00 € : 24,00 €
-+
