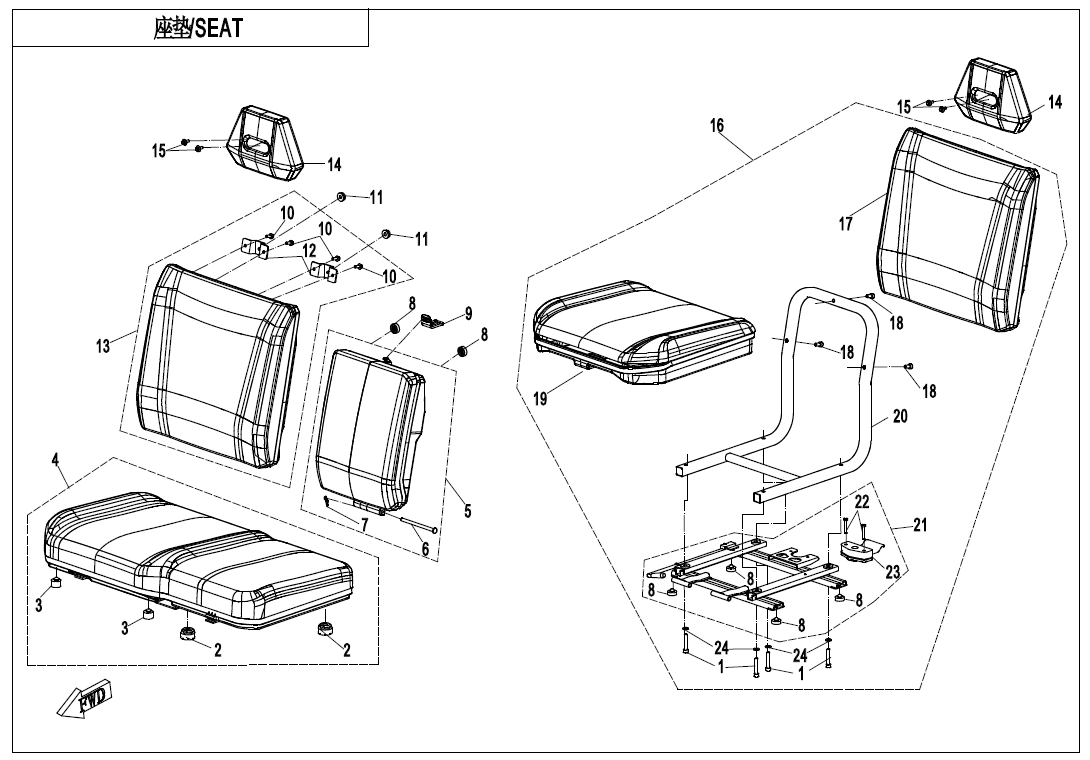

SEAT - F13

SEAT - F13

No.

01
P/N (SKU): 30102-080045840
Part Name: INNER HEX SCREW
Alternative parts: 30102-080045810
Specification: M8×45
Price: 1,50 € : 1,50 €
02
P/N (SKU): 7020-130001
Part Name: RUBBER SLEEVE, SEAT
Alternative parts:
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 5HY0-132004
Part Name: CUSHION RUBBER WAHSER
Alternative parts:
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 5HY0-132000-20000
Part Name: PASSANGER SEAT
Alternative parts:
Price: 267,00 € : 267,00 €
-+
05
P/N (SKU): 5HY0-134000-00001
Part Name: BACKREST
Alternative parts:
Price: 77,00 € : 77,00 €
-+
06
P/N (SKU): 30904-080A220
Part Name: PIN SHAFT
Alternative parts:
Price: 11,00 € : 11,00 €
-+
07
P/N (SKU): 30910-0183220
Part Name: LOCK PIN
Alternative parts:
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 6KM0-130205
Part Name: RUBBER
Alternative parts:
Price: 3,00 € : 3,00 €
-+
09
P/N (SKU): 7020-140002
Part Name: TIE BAND, RACK COVER
Alternative parts:
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Alternative parts: 30006-060016870
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Alternative parts:
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 5HY0-133020
Part Name: REAR BRACKECT
Alternative parts:
Price: 15,00 € : 15,00 €
-+
13
P/N (SKU): 5HY0-133000
Part Name: BACKREST
Alternative parts:
Price: 124,00 € : 124,00 €
-+
14
P/N (SKU): 5HY0-135000
Part Name: HEAD REST
Alternative parts:
Price: 62,00 € : 62,00 €
-+
15
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5HY3-131000-10000
Part Name: DRIVER SEAT ASSY.
Alternative parts:
Price: 492,00 € : 492,00 €
-+
17
P/N (SKU): 5HY0-131300
Part Name: MAIN BACKREST
Alternative parts:
Price: 154,00 € : 154,00 €
-+
18
P/N (SKU): 30102-080016840
Part Name: INNER HEX SCREW M8x16
Alternative parts:
Specification: M8x16
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 5HY3-1312A0
Part Name: MAIN SEAT ASSY
Alternative parts:
Price: 250,00 € : 250,00 €
-+
20
P/N (SKU): 5HY0-131010
Part Name: SUPPORT
Alternative parts:
Price: 51,00 € : 51,00 €
-+
21
P/N (SKU): 5HY0-131100-10000
Part Name: BOTTOM BRACKET,DRIVER SEAT
Alternative parts:
Price: 132,00 € : 132,00 €
-+
22
P/N (SKU): 30003-060035840
Part Name: BOLT M6x35
Alternative parts: 30006-060035840
Specification: M6x35
Price: 1,50 € : 1,50 €
23
P/N (SKU): 5HY0-131140
Part Name: SEAT LOCK
Alternative parts:
Price: 47,00 € : 47,00 €
-+
24
P/N (SKU): 30306-080870
Part Name: WASHER
Alternative parts: 30306-080112
Price: 1,50 € : 1,50 €
