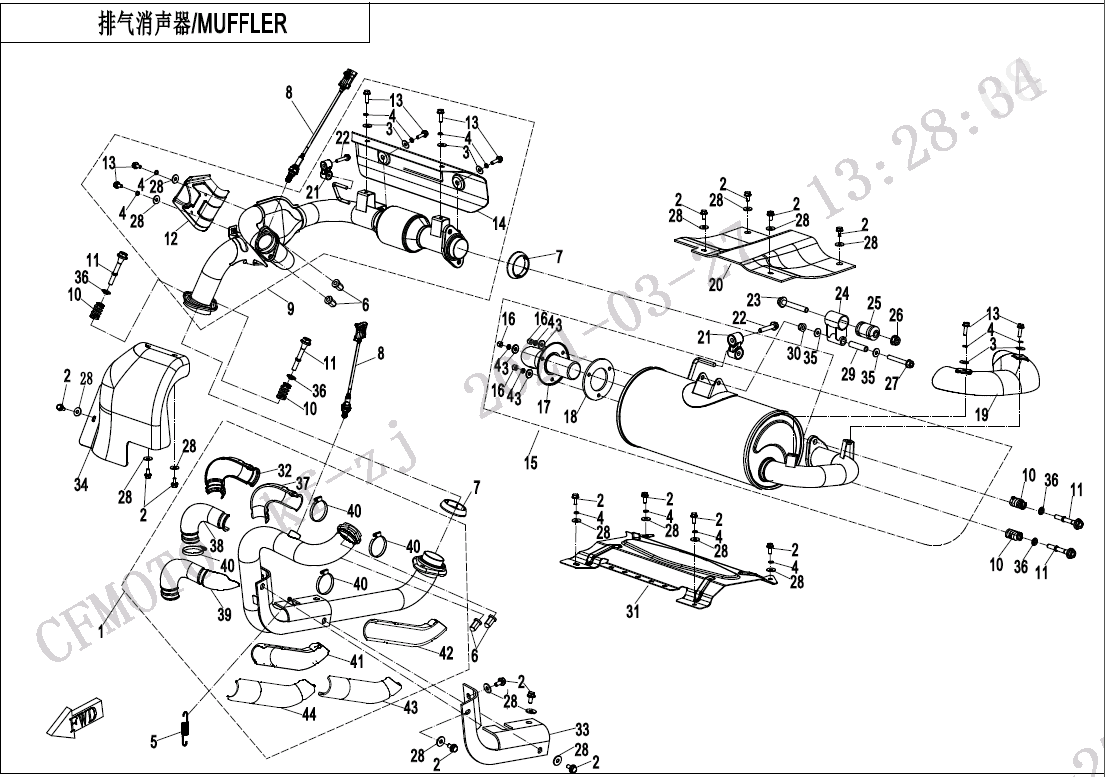

MUFFLER - F02-V3

MUFFLER - F02-V3

No.

01
P/N (SKU): 5HY0-021100-20000
Part Name: FRONT ELBOW PIPE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 172,10 € : 172,10 €
-+
02
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6x12
Price: 1,00 € : 1,00 €
03
P/N (SKU): 30303-060900
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30303-060112
Specification: 6
Price: 1,00 € : 1,00 €
04
P/N (SKU): 30303-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 9030-020002
Part Name: SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
06
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,00 € : 1,00 €
-+
07
P/N (SKU): 9AWA-021004-00001
Part Name: GRAPHITE RING, BIG
Effective: 2021-02-26
Alternative parts:
Price: 13,05 € : 13,05 €
-+
08
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 82,10 € : 82,10 €
-+
09
P/N (SKU): 5HY0-021200-20000
Part Name: REAR EXHAUST PIPE ASSY
Effective: 2021-02-26
Alternative parts: 5HY0-021200-30000
Price: 209,60 € : 209,60 €
09
P/N (SKU): 5HY0-021200-30000
Part Name: REAR ELBOW ASSY
Effective: 2021-02-26
Alternative parts:
Price: 658,80 € : 658,80 €
-+
09
P/N (SKU): 5HY0-021200-30001
Part Name: REAR EXHAUST PIPE ASSY
Effective: 2021-09-23
Alternative parts:
Price: 654,00 € : 654,00 €
-+
10
P/N (SKU): 9AWA-021001
Part Name: SPRING, MUFFLER
Effective: 2021-02-26
Alternative parts:
Price: 1,60 € : 1,60 €
-+
11
P/N (SKU): 9AWA-021002-10000
Part Name: BOLT M8x55
Effective: 2021-02-26
Alternative parts:
Specification: M8x55
Price: 5,90 € : 5,90 €
-+
12
P/N (SKU): 5HY0-021201
Part Name: HEAT INSULATOR, REAR PIPE
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
12
P/N (SKU): 5HY0-021201-20000
Part Name: HEAT INSULATOR, REAR PIPE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
13
P/N (SKU): 30006-060010810
Part Name: BOLT M6x10
Effective: 2021-02-26
Alternative parts:
Specification: GB5789 M6x10 TRIVALENT CHROMIUM 8.8
Price: 1,30 € : 1,30 €
-+
14
P/N (SKU): 5HY0-021202
Part Name: REAR HEAT INSULATOR
Effective: 2021-02-26
Alternative parts:
Price: 13,55 € : 13,55 €
-+
15
P/N (SKU): 5HY0-021300-10000
Part Name: MUFFLER BODY ASSY
Effective: 2021-02-26
Alternative parts:
Price: 457,90 € : 457,90 €
-+
16
P/N (SKU): 30206-060540
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 5BY2-021400-10000
Part Name: SPAPK ARRESTOR
Effective: 2021-02-26
Alternative parts:
Price: 28,00 € : 28,00 €
-+
18
P/N (SKU): 5HY0-021302
Part Name: SEAL GASKET
Effective: 2021-02-26
Alternative parts:
Price: 9,90 € : 9,90 €
-+
19
P/N (SKU): 5HY0-021200-20000
Part Name: REAR EXHAUST PIPE ASSY
Effective: 2021-02-26
Alternative parts: 5HY0-021200-30000
Price: 209,60 € : 209,60 €
20
P/N (SKU): 5HY0-020001
Part Name: HEAT INSULATION PLATE, UPPER
Effective: 2021-02-26
Alternative parts:
Price: 14,36 € : 14,36 €
-+
21
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 10,95 € : 10,95 €
-+
22
P/N (SKU): 30006-080040810
Part Name: BOLT M8x40
Effective: 2021-02-26
Alternative parts:
Specification: M8x40
Price: 1,80 € : 1,80 €
-+
23
P/N (SKU): 30006-102070810
Part Name: BOLT M10x1.25x70
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x70
Price: 1,00 € : 1,00 €
-+
24
P/N (SKU): 9CR6-020020
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-02-26
Alternative parts:
Price: 9,20 € : 9,20 €
-+
25
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 3,70 € : 3,70 €
-+
26
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 1,00 € : 1,00 €
-+
27
P/N (SKU): 30006-080060810
Part Name: BOLT M8x60
Effective: 2021-02-26
Alternative parts:
Specification: M8x60
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6
Price: 1,00 € : 1,00 €
-+
29
P/N (SKU): 7020-020001
Part Name: LINER, MUFFLER
Effective: 2021-02-26
Alternative parts:
Price: 2,30 € : 2,30 €
-+
30
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,00 € : 1,00 €
-+
31
P/N (SKU): 5HY0-020004
Part Name: HEAT INSULATION PLATE,REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 17,30 € : 17,30 €
-+
32
P/N (SKU): 5HY0-021101
Part Name: HEAT INSULATOR, FRONT EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 7,90 € : 7,90 €
-+
33
P/N (SKU): 5HY0-020003
Part Name: HEAT INSULATOR 2, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
34
P/N (SKU): 5HY0-020002
Part Name: FRONT HEAT SHIELD
Effective: 2021-02-26
Alternative parts:
Price: 25,70 € : 25,70 €
-+
35
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,70 € : 1,70 €
-+
36
P/N (SKU): 9AWA-021005
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
37
P/N (SKU): 5HY0-021102
Part Name: HEAT INSULATOR 1, FRONT EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 7,90 € : 7,90 €
-+
38
P/N (SKU): 5HY0-021103
Part Name: HEAT INSULATOR 2, FRONT EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 7,90 € : 7,90 €
-+
39
P/N (SKU): 5HY0-021104
Part Name: HEAT INSULATION PLATE 2, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 7,40 € : 7,40 €
-+
40
P/N (SKU): 7030-021305
Part Name: SCREW CLAMP, A-TYPE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
40
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: 50-70
Price: 2,90 € : 2,90 €
-+
41
P/N (SKU): 5HY0-021105
Part Name: HEAT INSULATOR 3, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 6,10 € : 6,10 €
-+
42
P/N (SKU): 5HY0-021106
Part Name: HEAT INSULATOR 3, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
43
P/N (SKU): 5HY0-021107
Part Name: HEAT INSULATOR 4, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
44
P/N (SKU): 5HY0-021108
Part Name: HEAT INSULATOR 4, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
