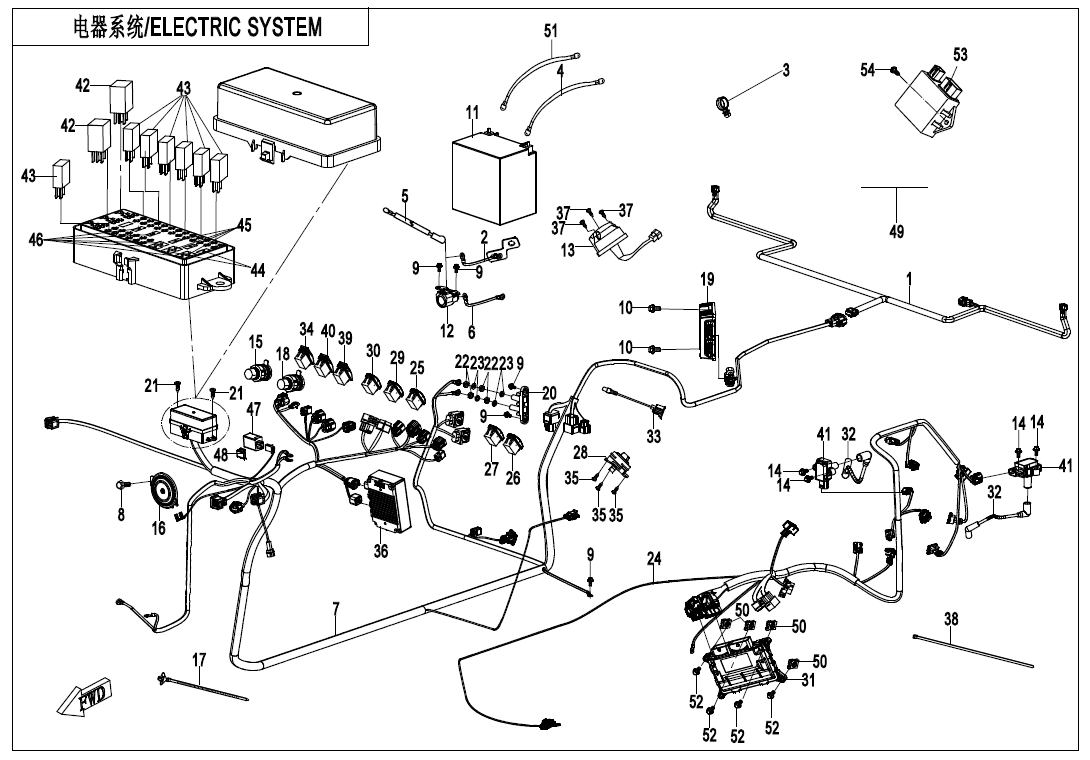

ELECTRIC SYSTEM - F15-1-V5 | 2021, UTV, CF1000UTR-3 |

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 5HY0-150300-C0000

Part Name: TAIL LIGHT AUXILIARY CABLE

Remarks: LOF

Price: 37,00 € : 37,00 €

P/N (SKU): 5HY0-150300-10001

Part Name: AUXILIART CABLE, TAIL LIGHT

Price: 42,00 € : 42,00 €

P/N (SKU): 5HY0-150240-10000

Part Name: CABLE, STARTER RELAY

Price: 13,00 € : 13,00 €

P/N (SKU): A000-050015

Part Name: WIRE CLIP, FRONT BRAKE FLUID HOSE

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-150210-10000

Part Name: POSITIVE WIRE,BATTERY

Price: 15,00 € : 15,00 €

P/N (SKU): 5HY0-150220

Part Name: CABLE,STARTER

Price: 22,00 € : 22,00 €

P/N (SKU): 5HY0-150250-10000

Part Name: NEGATIVE CABLE, STARTER

Price: 14,00 € : 14,00 €

P/N (SKU): 5HY0-150100-C0001

Part Name: MAIN CABLE

Remarks: LOF

Price: 600,00 € : 600,00 €

P/N (SKU): 5HY0-150100-40001

Part Name: MAIN CABLE

Price: 496,00 € : 496,00 €

P/N (SKU): 30006-080014810

Part Name: BOLT M8x14

Specification: M8x14

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Alternative parts: 30006-060012870

Specification: M6x12

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-060030810

Part Name: BOLT M6x30

Specification: M6x30

Price: 1,50 € : 1,50 €

P/N (SKU): 31023000

Part Name: BATTERY

Alternative parts: 31023004

Specification: DYNOVOLT, 12V30Ah

Price: 158,00 € : 158,00 €

P/N (SKU): 5270-150500

Part Name: STARTER RELAY

Price: 24,00 € : 24,00 €

P/N (SKU): 9010-151010-1000

Part Name: POWER SOCKET, TRAILER

Remarks: LOF

Specification: LOF

Price: 15,00 € : 15,00 €

P/N (SKU): 7020-150800-20000

Part Name: TAILER POWER SOCKET

Price: 18,00 € : 18,00 €

P/N (SKU): 30006-060025810

Part Name: BOLT M6x25

Specification: M6x25

Price: 1,50 € : 1,50 €

P/N (SKU): 9GQ0-150500-20000

Part Name: POWER OUTLET SOCKET

Price: 14,00 € : 14,00 €

P/N (SKU): 6060-150600

Part Name: ELECTRIC HORN

Price: 10,00 € : 10,00 €

P/N (SKU): 7030-150005

Part Name: TIE BAND

Price: 1,50 € : 1,50 €

P/N (SKU): 9GQO-150600-20000

Part Name: OUTPUT SEAT, POWER

Price: Not currently available : Not currently available

P/N (SKU): 0800-177000-30000

Part Name: REGULATOR

Price: 137,00 € : 137,00 €

P/N (SKU): 5SY0-151610-6000

Part Name: TERMINAL, CABLE

Specification: WITH KAIDI PLUG

Price: 11,00 € : 11,00 €

P/N (SKU): 30110-420130010

Part Name: SELF-TAPPING SCREW ST4.2x13

Alternative parts: 30110-421130010

Specification: ST4.2x13

Price: 1,50 € : 1,50 €

P/N (SKU): 7030-151613

Part Name: NUT

Price: 1,50 € : 1,50 €

P/N (SKU): 7030-151614

Part Name: WASHER

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-150200-40000

Part Name: EFI AUXILIARY CABLE

Price: 240,00 € : 240,00 €

P/N (SKU): 5HY0-151000-10000

Part Name: STOP SWITCH

Price: 15,00 € : 15,00 €

P/N (SKU): 5HY0-151100-20000

Part Name: ILLUMINATION SWITCH

Price: 15,00 € : 15,00 €

P/N (SKU): 5HY0-151200-10001

Part Name: DIMMER SWITCH

Price: 15,00 € : 15,00 €

P/N (SKU): 5AS0-160700-6001

Part Name: 2WD/4WD SWITCH ASSY

Price: 38,00 € : 38,00 €

P/N (SKU): 5HY0-151300-20000

Part Name: HORN SWITCH

Price: 15,00 € : 15,00 €

P/N (SKU): 5HY0-151400-20000

Part Name: OVERRIDE SWITCH

Price: 16,00 € : 16,00 €

P/N (SKU): 5HY#-001000-1200

Part Name: ECU ASSY

Remarks: LOF

Price: 361,00 € : 361,00 €

P/N (SKU): 5HY#-001000-2300

Part Name: ECU ASSY

Price: 361,00 € : 361,00 €

P/N (SKU): 0GRB-178000

Part Name: HIGH-TENSION CABLE

Price: 16,00 € : 16,00 €

P/N (SKU): 0JWA-012202-10000

Part Name: ADAPTOR CABLE, OIL PRESSURE SWITCH

Price: 13,00 € : 13,00 €

P/N (SKU): 5HY0-151700

Part Name: MODE SWITCH

Price: 17,00 € : 17,00 €

P/N (SKU): 30118-480160010

Part Name: SELF-TAPPING SCREW ST4.8x16

Specification: ST4.8x16

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-150810-10000

Part Name: EPS CONTROLLER

Price: 323,00 € : 323,00 €

P/N (SKU): 30105-050030410

Part Name: SCREW M5x30

Specification: M5x30

Price: 1,50 € : 1,50 €

P/N (SKU): 8010-150003

Part Name: TIE BAND

Specification: 5x250

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-151500-10001

Part Name: TURN SWITCH

Price: 14,00 € : 14,00 €

P/N (SKU): 5HY0-151600-20001

Part Name: HAZARD SWITCH

Price: 14,00 € : 14,00 €

P/N (SKU): 018B-178000

Part Name: IGNITION COIL

Price: 41,00 € : 41,00 €

P/N (SKU): 5BW1-150120

Part Name: AUXILIARY RELAY

Price: 6,00 € : 6,00 €

P/N (SKU): 5BY4-150330

Part Name: AUXILIARY RELAY

Price: 7,50 € : 7,50 €

P/N (SKU): 8080-151301

Part Name: FUSE 5A

Specification: 5A

Price: 1,50 € : 1,50 €

P/N (SKU): 806A-151302

Part Name: FUSE 10A

Specification: 10A

Price: 2,50 € : 2,50 €

P/N (SKU): 806A-151305

Part Name: FUSE 15A

Alternative parts: 806A-151303

Specification: 15A

Price: 1,50 € : 1,50 €

P/N (SKU): 9AWA-150340-10000

Part Name: FLASHER

Price: 11,00 € : 11,00 €

P/N (SKU): 8010-150002

Part Name: CUSHION WASHER, FLASHER

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-152200

Part Name: ADAPTOR CABLE, BRAKE SWITCH

Price: 26,00 € : 26,00 €

P/N (SKU): 8030-040800

Part Name: NUT CLIP M6

Alternative parts: 8030-040800-00001

Specification: M6

Price: 1,50 € : 1,50 €

P/N (SKU): 5HY0-150230-10000

Part Name: NEGATIVE WIRE,BATTERY

Price: 15,00 € : 15,00 €

P/N (SKU): 30006-060020810

Part Name: BOLT M6x20

Alternative parts: 30006-060020870

Specification: M6x20

Price: 1,50 € : 1,50 €

P/N (SKU): 9AWA-150880-20000

Part Name: DRL CONTROLLER

Price: 44,00 € : 44,00 €

P/N (SKU): 30110-480160070

Part Name: SELF-TAPPING SCREW

Price: 2,00 € : 2,00 €
