No.
01
6KMV-031000-8007-01-0BP00

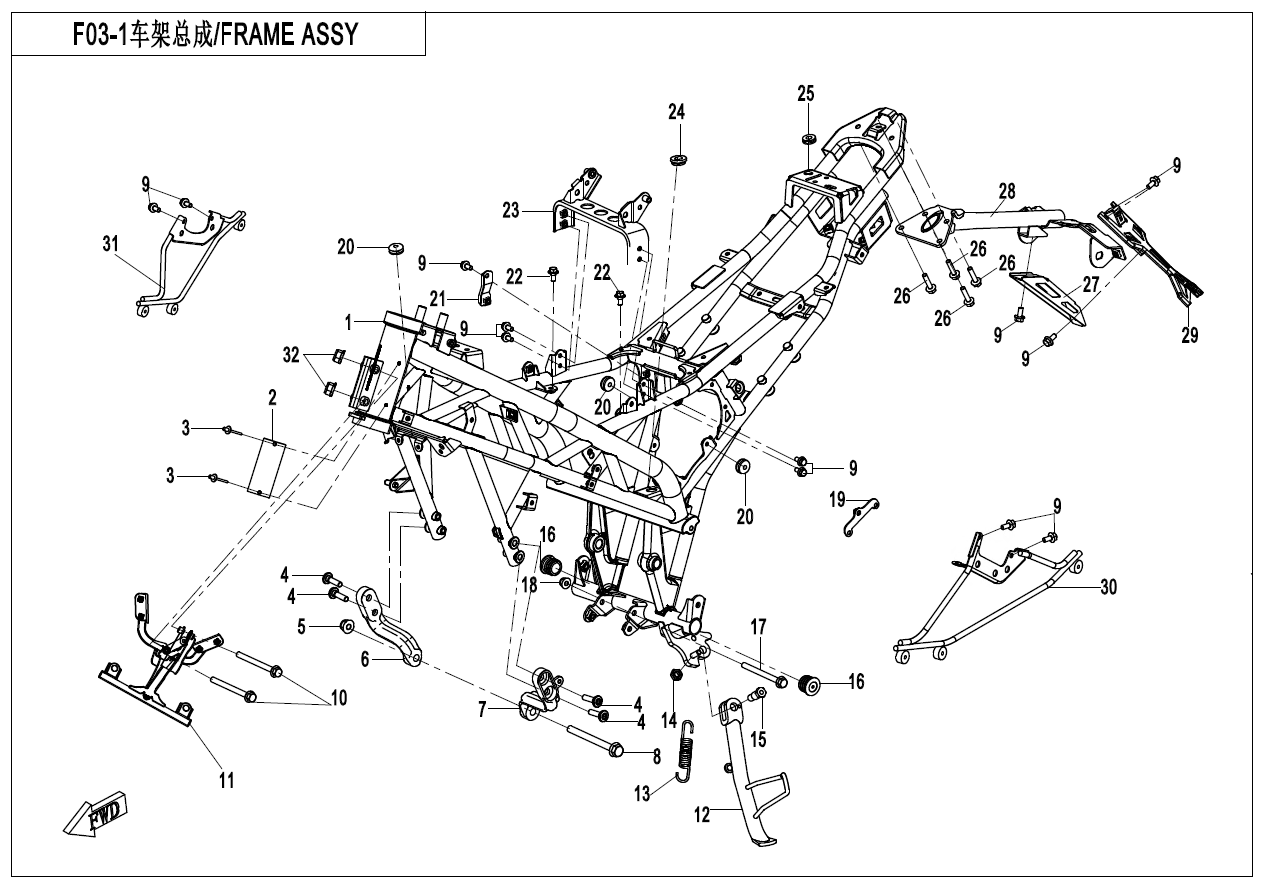

FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-031000-8008-01-0BP00
Specification: MAUD SPIRIT BLACK
843,00 € 843,00 €
01
6KMV-031000-8007-01-0VG00
FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-031000-8008-01-0VG00
Specification: NEBULA WHITE+ELECTROPHORESIS BLACK
843,00 € 843,00 €
01
6KMV-031000-8008-01-0VG00
FRAME ASSY
Effective: 2021-06-28
944,00 € 944,00 €
01
6KMV-031000-8008-01-0BP00
FRAME ASSY
Effective: 2021-06-28
785,00 € 785,00 €
02
6KNV-190011-A000
VEHICLE PLATE
Effective: 2021-02-26
2,00 € 2,00 €
03
30902-0401320
BLIND RIVET
Effective: 2021-02-26
Specification: 4x13
1,50 € 1,50 €
04
6KM0-140107
BOLT
Effective: 2021-02-26
Specification: M8
2,00 € 2,00 €
05
30204-102810
NUT M10x1.25
Effective: 2021-02-26
Specification: M10x1.25
1,50 € 1,50 €
06
6KM0-030006-1B200
RH MOUNTING BRACKET, ENGINE
Effective: 2021-02-26
Specification: MATTE BLACK
22,00 € 22,00 €
07
6KM0-030005-1B200
LH MOUNTING BRACKET, ENGINE
Effective: 2021-02-26
Specification: MATTE BLACK
22,00 € 22,00 €
08
30006-102110110
BOLT M10x1.25x110
Effective: 2021-02-26
Specification: M10x1.25x110
2,00 € 2,00 €
09
30006-060012870
BOLT M6x12
Effective: 2021-02-26
Specification: M6x12
1,50 € 1,50 €
10
30006-060025810
BOLT
Effective: 2021-02-26
Specification: M6x25
1,50 € 1,50 €
11
6KM#-030400-8001-0B200
FRONT BRACKET
Effective: 2021-02-26
Specification: ELECTROPHORESIS BLACK
68,00 € 68,00 €
12
6KM0-030310-0B200
SIDE BRACKET ASSY
Effective: 2021-02-26
Specification: MATTE BLACK
10,00 € 10,00 €
13
6090-030006
3,00 € 3,00 €
14
30208-102010
NUT M10x1.25
Effective: 2021-02-26
Specification: M10x1.25
1,50 € 1,50 €
15
A000-030006
SIDE STAND BOLT
Effective: 2021-02-26
2,50 € 2,50 €
16
6KJ0-030503
RUBBER PLUG
Effective: 2021-02-26
2,00 € 2,00 €
17
30006-080090810
BOLT M8x90
Effective: 2021-02-26
Specification: M8x90
1,50 € 1,50 €
18
30204-080810
NUT M8
Effective: 2021-02-26
Specification: M8
1,50 € 1,50 €
19
6KM0-030030-0B200
BRACKET, CANISTER
Effective: 2021-02-26
Specification: MATTE BLACK
11,00 € 11,00 €
20
A000-040302
RUBBER DAMPER
Effective: 2021-02-26
1,50 € 1,50 €
21
6KM0-030050-0B200
ABS BRACKET
Effective: 2021-02-26
Specification: MATTE BLACK
3,00 € 3,00 €
22
8010-000004
BOLT M6x14
Effective: 2021-02-26
Specification: M6x14
1,50 € 1,50 €
23
6KM0-030100-2B200
REAR MOUNTING ASSY,FUEL TANK
Effective: 2021-02-26
Remarks: Used with6KM0-041601-2H300 and 6KM0-041701-2H300 (or with 6KM0-041601-2H70 and 6KM0-041701-2H700)
Specification: MATTE BLACK
19,00 € 19,00 €
24
8080-040064
FRONT FENDER DAMPER
Effective: 2021-02-26
1,50 € 1,50 €
25
5BY0-040010
RUBBER SLEEVE
Effective: 2021-02-26
2,00 € 2,00 €
26
30006-080045810
BOLT M8x45
Effective: 2021-02-26
Specification: M8x45
2,00 € 2,00 €
27
6KJ0-030601-0BP00
BRACKET, REAR LICENSE
Effective: 2021-02-26
Specification: MAUD SPIRIT BLACK
10,00 € 10,00 €
28
6NT1-030100-0BB00
BRACKET, REAR FENDER
Effective: 2021-02-26
Specification: PLASTIC POWDER
23,00 € 23,00 €
28
6NT1-030100-0BP00
BRACKET, REAR FENDER
Effective: 2021-02-26
Specification: MAUD SPIRIT BLACK
19,00 € 19,00 €
29
6KM#-030110-8000-0BP00
BRAKCET, REAR LICENSE
Effective: 2021-02-26
Specification: MAUD SPIRIT BLACK
15,00 € 15,00 €
30
6KM#-030040-8002-0B200
LH BRACKET, DEFLECTOR
Effective: 2021-02-26
Specification: ELECTROPHORESIS BLACK
18,00 € 18,00 €
31
6KM#-030050-8002-0B200
RH BRACKET, DEFLECTOR
Effective: 2021-02-26
Specification: ELECTROPHORESIS BLACK
18,00 € 18,00 €
32
30206-080510
NUT M8
Effective: 2021-02-26
Specification: M8
1,50 € 1,50 €
