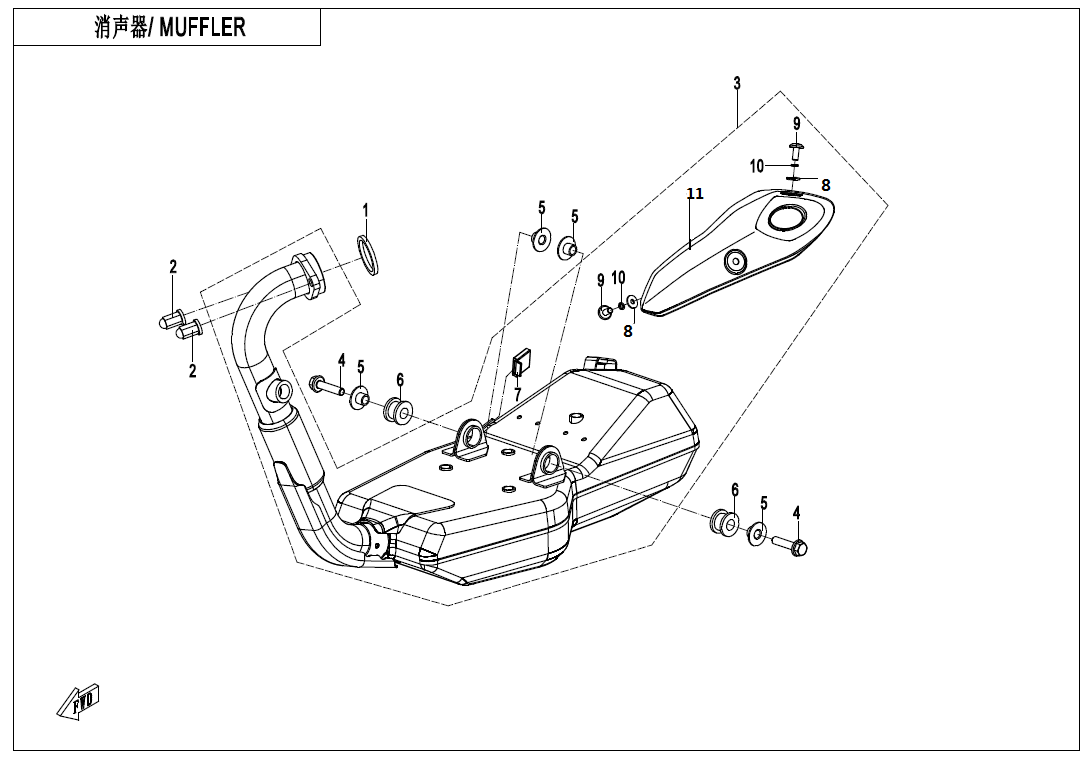

MUFFLER - F02

MUFFLER - F02

No.

01
P/N (SKU): 6KM0-020010
Part Name: SEAL WASHER, EXHAUST PORT
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
02
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 6KMV-021000-9000
Part Name: MUFFLER ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 1 355,00 € : 1 355,00 €
04
P/N (SKU): 30006-080035810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×35
Price: 1,50 € : 1,50 €
05
P/N (SKU): A000-020005
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts: 6GU#-020002-6001
Price: 2,00 € : 2,00 €
06
P/N (SKU): A000-020004
Part Name: DAMPER, MUFFLER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 6KM0-021001
Part Name: RUBBER COLLAR
Effective: 2021-02-26
Alternative parts: null
Price: 5,00 € : 5,00 €
08
P/N (SKU): 30306-060112
Part Name: PLAIN WASHERS
Effective: 2021-02-26
Alternative parts: 30306-060142
Specification: φ6
Price: 1,50 € : 1,50 €
09
P/N (SKU): 6KM#-040702-8000
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30303-060112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-02-26
Alternative parts: null
Specification: φ6
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 6KN0-021010
Part Name: TAIL COVER ASSY
Effective: 2023-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 24,00 € : 24,00 €
