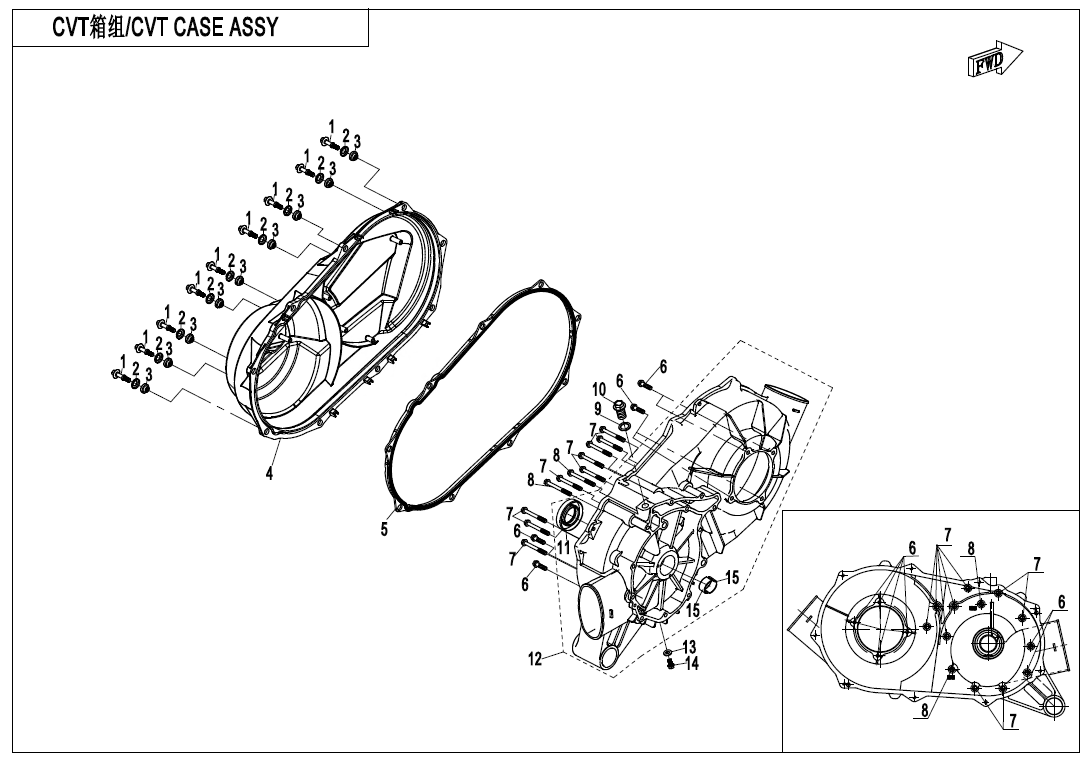

CVT CASE ASSY. - E01-3-V2

CVT CASE ASSY. - E01-3-V2

No.

01
P/N (SKU): 0JY0-013201
Part Name: BOLT, CVT CASE COVER
Alternative parts: 0JY0-013201-00001
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0800-021103
Part Name: CAP, RUBBER WASHER
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0800-021102
Part Name: RUBBER WASHER
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0JWA-013201
Part Name: COVER, CVT CASE
Price: 62,00 € : 62,00 €
-+
05
P/N (SKU): 0JY0-013002
Part Name: SEAL RING,CVT CASE COVER
Price: 13,00 € : 13,00 €
-+
06
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Specification: M6x22
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0010-013010-0010
Part Name: BOLT M6x50
Specification: M6x50
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6x55
Specification: M6x55
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-011006
Part Name: GASKET 14
Specification: 14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0180-068001-00100
Part Name: HOLLOW BOLT M14x1.5
Specification: M14x1.5
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL 32X55X10
Specification: 32X55X10
Price: 8,50 € : 8,50 €
-+
12
P/N (SKU): 0JWA-013100
Part Name: CVT CASE ASSY
Price: 161,00 € : 161,00 €
-+
13
P/N (SKU): 0010-060009
Part Name: WASHER 6
Specification: 6
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 0010-080010-0010
Part Name: BOLT M6x10
Specification: M6x10
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0JY0-013102-00010
Part Name: PLAIN BEARING, CVT
Alternative parts: 0JY0-013102-00011
Specification: RED
Price: 11,00 € : 11,00 €
15
P/N (SKU): 0JY0-013102-00020
Part Name: PLAIN BEARING, CVT
Alternative parts: 0JY0-013102-00021
Specification: BLUE
Price: 15,00 € : 15,00 €
