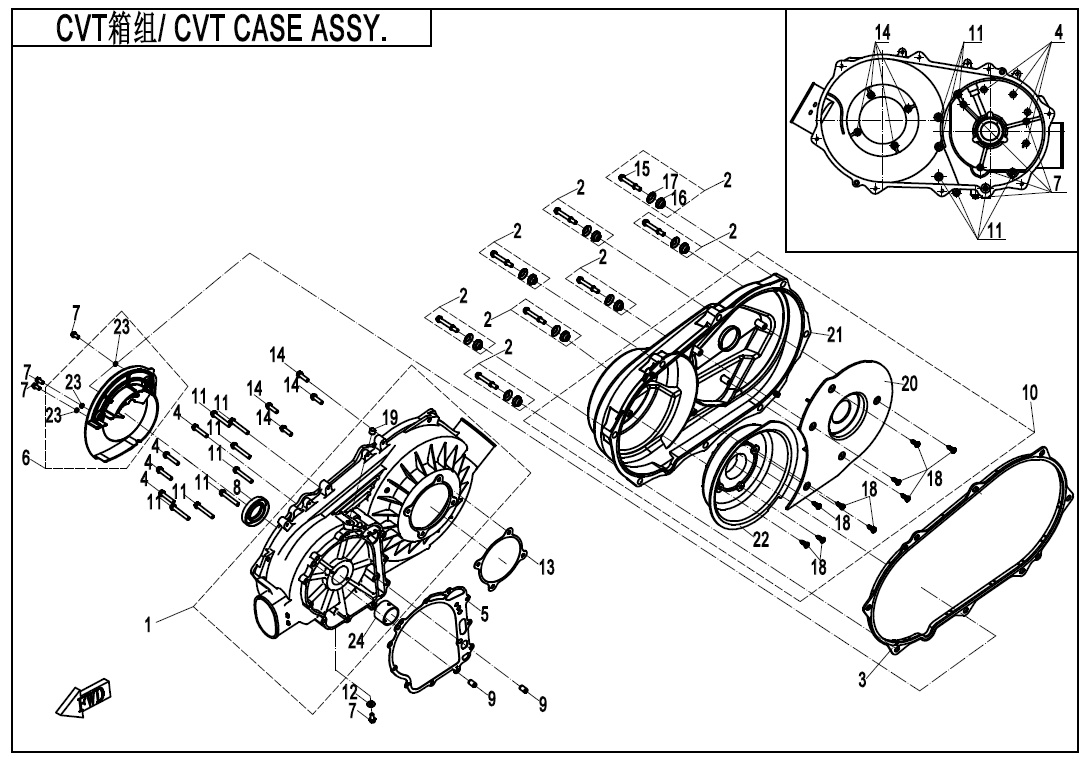

CVT CASE ASSY. - E01-3-V3 | 2021, ENGINE, 191R-X550 |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0GR0-013100-10001

Part Name: CVT CASE ASSY

Alternative parts:

Price: 127,00 € : 127,00 €

02

P/N (SKU): 0800-021100

Part Name: BOLT ASSY. CYLINDER HEAD COVER

Alternative parts:

Price: 7,50 € : 7,50 €

03

P/N (SKU): 0GR0-013003

Part Name: SEAL RING, CVT COVER

Alternative parts:

Price: 16,00 € : 16,00 €

04

P/N (SKU): 0010-060012-0010

Part Name: BOLT M6x30

Alternative parts:

Specification: M6x30

Price: 1,50 € : 1,50 €

05

P/N (SKU): 0GR0-013001-10000

Part Name: PAPER GASKET, CVT CASE

Alternative parts: 0GR0-013001-20000

Price: 3,00 € : 3,00 €

06

P/N (SKU): 0GR0-013010

Part Name: CVT WIND GUARD ASSY

Alternative parts:

Price: 15,00 € : 15,00 €

07

P/N (SKU): 0010-021019-0010

Part Name: BOLT M6x12

Alternative parts:

Specification: M6x12

Price: 1,50 € : 1,50 €

08

P/N (SKU): 0JY0-013103

Part Name: OIL SEAL 32X55X10

Alternative parts:

Specification: 32X55X10

Price: 8,50 € : 8,50 €

09

P/N (SKU): 0010-080008

Part Name: DOWEL PIN Dia 8x14

Alternative parts:

Specification: Dia 8x14

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0GR0-013300-20000

Part Name: COVER, CVT CASE

Alternative parts:

Price: 79,00 € : 79,00 €

11

P/N (SKU): 0010-013009-0010

Part Name: BOLT M6x40

Alternative parts:

Specification: M6x40

Price: 1,50 € : 1,50 €

12

P/N (SKU): 0010-060009

Part Name: WASHER 6

Alternative parts:

Specification: 6

Price: 2,00 € : 2,00 €

13

P/N (SKU): 0800-012002

Part Name: GASKET(2), CVT CASE

Alternative parts:

Price: 3,50 € : 3,50 €

14

P/N (SKU): 0010-023010-0010

Part Name: BOLT M6x20

Alternative parts:

Specification: M6x20

Price: 1,50 € : 1,50 €

15

P/N (SKU): 0800-021101-10001

Part Name: BOLT, CYLINDER HEAD COVER

Alternative parts:

Price: 2,00 € : 2,00 €

16

P/N (SKU): 0800-021102

Part Name: RUBBER WASHER

Alternative parts:

Price: 1,50 € : 1,50 €

17

P/N (SKU): 0800-021103

Part Name: CAP, RUBBER WASHER

Alternative parts:

Price: 1,50 € : 1,50 €

18

P/N (SKU): 30110-480160010

Part Name: SELF-TAPPING SCREW ST4.8x16

Alternative parts:

Specification: ST4.8x16

Price: 1,50 € : 1,50 €

19

P/N (SKU): 01A0-012010-00001

Part Name: SCREW

Alternative parts:

Price: 1,50 € : 1,50 €

20

P/N (SKU): 0GR0-013302

Part Name: REAR HEAT INSULATION COVER

Alternative parts:

Price: 14,00 € : 14,00 €

21

P/N (SKU): 0GR0-013002-20000

Part Name: COVER, CVT CASE

Alternative parts:

Price: 69,00 € : 69,00 €

22

P/N (SKU): 0GR0-013301-20000

Part Name: FRONT HEAT INSULATION GUARD

Alternative parts:

Price: 12,00 € : 12,00 €

23

P/N (SKU): 0GR0-013012

Part Name: BUSHING

Alternative parts:

Price: 3,00 € : 3,00 €

24

P/N (SKU): 0JY0-013102-00010

Part Name: PLAIN BEARING, CVT

Alternative parts: 0JY0-013102-00011

Specification: RED

Price: 11,00 € : 11,00 €

24

P/N (SKU): 0JY0-013102-00020

Part Name: PLAIN BEARING, CVT

Alternative parts: 0JY0-013102-00021

Specification: BLUE

Price: 15,00 € : 15,00 €
