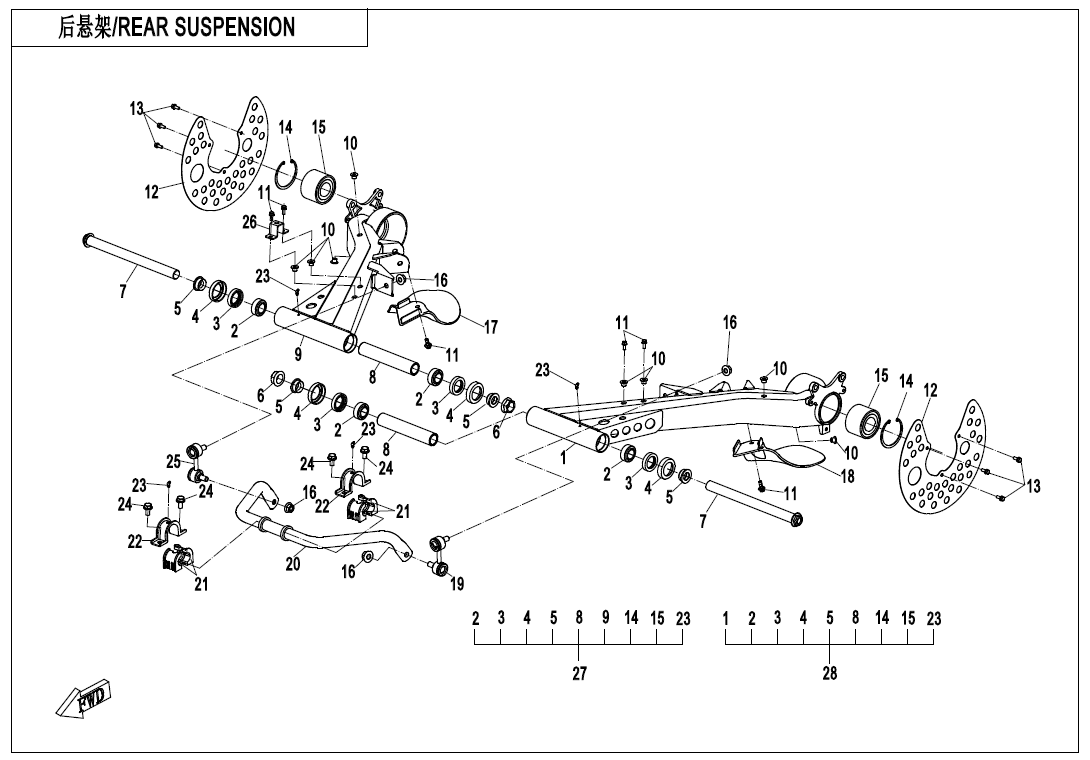

REAR SUSPENSION(CASTING) - F06-1-B-V1

REAR SUSPENSION(CASTING) - F06-1-B-V1

No.

01
P/N (SKU): 9AWA-060110-40000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9AWV-060110-8002-0BP00
Specification: BLACK
Price: 194,00 € : 194,00 €
-+
01
P/N (SKU): 9AWA-060110-50000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 194,00 € : 194,00 €
-+
01
P/N (SKU): 9AWA-060110-60000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ATHENS BLUE
Price: 194,00 € : 194,00 €
-+
01
P/N (SKU): 9AWA-060110-70000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: GHOST GREY
Price: 194,00 € : 194,00 €
-+
02
P/N (SKU): 9AWA-060109
Part Name: BEARING, REAR SWINGARM
Effective: 2021-02-26
Alternative parts:
Price: 17,00 € : 17,00 €
-+
03
P/N (SKU): 9AWA-060106
Part Name: OIL SEAL 24x38x8
Effective: 2021-02-26
Alternative parts:
Specification: 24x38x8
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): 9AWA-060105-10000
Part Name: ANTI-DUST GUARD
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 9AWA-060102
Part Name: BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
06
P/N (SKU): 9AWA-060108
Part Name: LOCK NUT, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
07
P/N (SKU): 9AWA-060103
Part Name: REAR SWING ARM SHAFT
Effective: 2021-02-26
Alternative parts: 9AWV-060103-2E00
Price: 25,00 € : 25,00 €
-+
08
P/N (SKU): 9AWA-060101-10000
Part Name: REAR SWING ARM INNER LINER
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
09
P/N (SKU): 9AWA-060210-50000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 194,00 € : 194,00 €
-+
09
P/N (SKU): 9AWA-060210-40000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9AWV-060210-8001-0BP00
Specification: BLACK
Price: 194,00 € : 194,00 €
-+
09
P/N (SKU): 9AWA-060210-60000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ATHENS BLUE
Price: 194,00 € : 194,00 €
-+
09
P/N (SKU): 9AWA-060210-70000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: GHOST GREY
Price: 194,00 € : 194,00 €
-+
10
P/N (SKU): 30228-061310
Part Name: RIVET NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9AWA-060104
Part Name: REAR BRAKE DISC GUARD
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
13
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
14
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: 60
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-02-26
Alternative parts: 30411-03081
Price: 43,00 € : 43,00 €
16
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9AWA-044044
Part Name: REAR RH SUSPENSION PANEL
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
18
P/N (SKU): 9AWA-044043
Part Name: PANEL, LH REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
19
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
20
P/N (SKU): 9AWA-060410-10000
Part Name: REAR SWAY BAR ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-060410-1BP00
Price: 87,00 € : 87,00 €
21
P/N (SKU): 7000-060003
Part Name: SWAY BAR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
22
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
23
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
26
P/N (SKU): 9AWA-060107
Part Name: REAR SWING ARM PARKING CABLE BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
27
P/N (SKU): 9AWA-060200-10000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9AWV-060200-8001-0BP00
Specification: BLACK
Price: 306,00 € : 306,00 €
27
P/N (SKU): 9AWA-060200-20000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 306,00 € : 306,00 €
-+
27
P/N (SKU): 9AWA-060200-30000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ATHENS BLUE
Price: 306,00 € : 306,00 €
-+
27
P/N (SKU): 9AWA-060200-40000
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: GHOST GRAY
Price: 306,00 € : 306,00 €
-+
28
P/N (SKU): 9AWA-060100-10000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9AWV-060100-8001-0BP00
Specification: BLACK
Price: 306,00 € : 306,00 €
28
P/N (SKU): 9AWA-060100-20000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 306,00 € : 306,00 €
-+
28
P/N (SKU): 9AWA-060100-30000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ATHENS BLUE
Price: 306,00 € : 306,00 €
-+
28
P/N (SKU): 9AWA-060100-40000
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts:
Specification: GHOST GRAY
Price: 306,00 € : 306,00 €
-+
