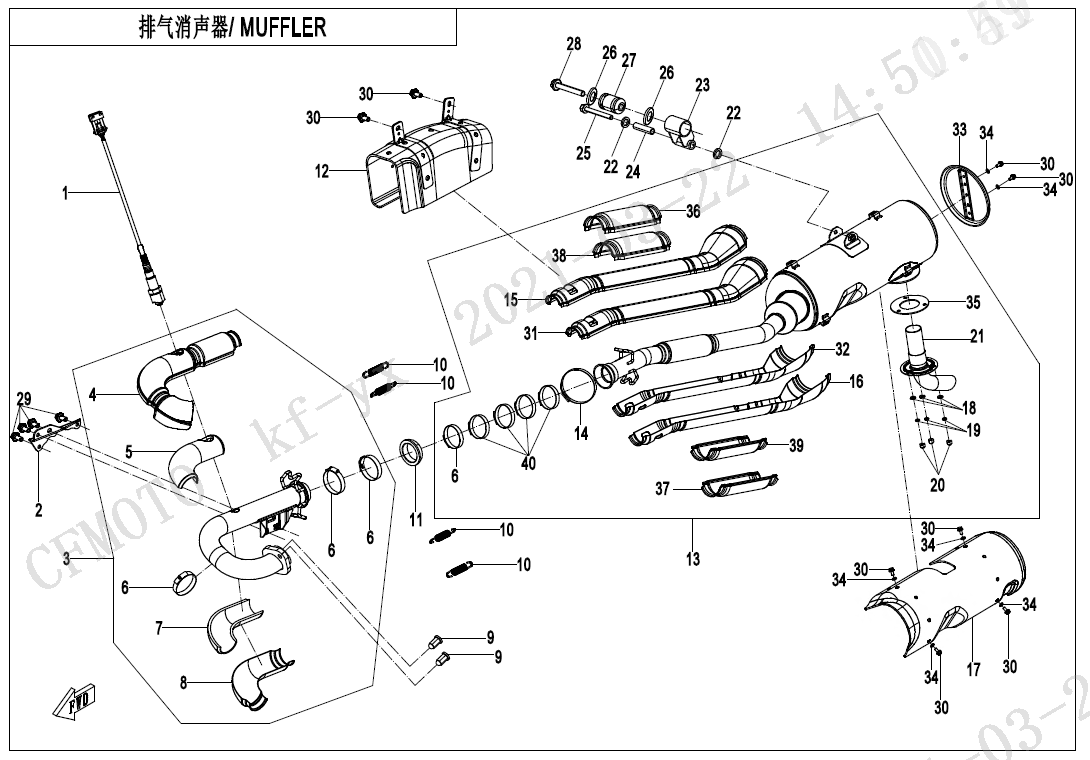

MUFFLER - F02-V2

MUFFLER - F02-V2

No.

01
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2021-04-20
Price: 84,00 € : 84,00 €
-+
02
P/N (SKU): 9GQ0-020001-00002
Part Name: EXHAUST PIPE SUPPORT PLATE
Effective: 2021-04-20
Alternative parts: 9GQ0-020001-00003
Price: 4,00 € : 4,00 €
03
P/N (SKU): 9DS#-021100-6000
Part Name: EXHAUST PIPE ASSY
Effective: 2021-04-20
Price: 90,00 € : 90,00 €
-+
04
P/N (SKU): 9DS#-021101-6000
Part Name: UPPER HEAT INSULATOR, FRONT EXHAUST PIPE
Effective: 2021-04-20
Price: 11,00 € : 11,00 €
-+
05
P/N (SKU): 9DS#-021100-6000-20
Part Name: UPPER HEAT INSULATOR
Effective: 2021-04-20
Price: 5,00 € : 5,00 €
-+
06
P/N (SKU): 7030-021305
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-04-20
Price: 4,00 € : 4,00 €
-+
07
P/N (SKU): 9DS#-021100-6000-21
Part Name: LOWER HEAT INSULATOR
Effective: 2021-04-20
Price: 5,00 € : 5,00 €
-+
08
P/N (SKU): 9DS#-021102-6000
Part Name: LOWER HEAT INSULATOR, FRONT EXHAUST PIPE
Effective: 2021-04-20
Price: 5,00 € : 5,00 €
-+
09
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2021-04-20
Specification: M8
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9CR6-020002-00001
Part Name: DRAG SPRING,MUFFLER
Effective: 2021-04-20
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 9AWA-021003-00001
Part Name: SMALL GRAPHITE RING
Effective: 2021-04-20
Alternative parts: 9AWA-021003-00002
Price: 12,00 € : 12,00 €
12
P/N (SKU): 9DS#-020010-6000
Part Name: HEAT INSULTOR ASSY, SPRING
Effective: 2021-04-20
Price: 35,00 € : 35,00 €
-+
13
P/N (SKU): 9CSV-021200-8002
Part Name: MUFFLER ASSY
Effective: 2021-04-20
Alternative parts: 9CSV-021200-8100/9CSV-021200-8101
Price: 5 832,00 € : 5 832,00 €
13
P/N (SKU): 9CSV-021200-8100
Part Name: MUFFLER ASSY
Effective: 2021-11-11
Alternative parts: 9CSV-021200-8101
Price: 1 178,00 € : 1 178,00 €
14
P/N (SKU): 9030-000109
Part Name: SCREW CLAMP, A-TYPE
Effective: 2021-04-20
Specification: 70~90
Price: 3,50 € : 3,50 €
-+
15
P/N (SKU): 9CSV-021201-8000
Part Name: UPPER HEAT INSULATOR, REAR EXHAUST PIPE
Effective: 2021-04-20
Price: 15,00 € : 15,00 €
-+
16
P/N (SKU): 9CSV-021202-8000
Part Name: LOWER HEAT INSULATOR, REAR EXHAUST PIPE
Effective: 2021-04-20
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 9CS#-020010-6600
Part Name: MUFFLER HEAT INSULATOR
Effective: 2021-04-20
Price: 26,00 € : 26,00 €
-+
18
P/N (SKU): 30306-060800
Part Name: PLAIN WASHERS
Effective: 2021-04-20
Specification: φ6
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 30303-060900
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-04-20
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
20
P/N (SKU): 30206-060510
Part Name: ACORN HEXAGON NUTS
Effective: 2021-04-20
Specification: M6
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9CS#-021320-6600
Part Name: SPARK ARRESTOR
Effective: 2021-04-20
Price: 28,00 € : 28,00 €
-+
22
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2021-04-20
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 401C-020020-00002
Part Name: MOUNT ASSY, MUFFLER
Effective: 2021-04-20
Alternative parts: 401C-020020-00003
Price: 6,00 € : 6,00 €
24
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2021-04-20
Price: 2,50 € : 2,50 €
-+
25
P/N (SKU): 30006-080065810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-04-20
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-04-20
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
27
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-04-20
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
28
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-04-20
Specification: M10×1.25×70
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-04-20
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-04-20
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 9CSV-021200-8000-20
Part Name: HEAT INSULATOR 2
Effective: 2021-04-20
Price: 11,00 € : 11,00 €
-+
32
P/N (SKU): 9CSV-021200-8000-21
Part Name: HEAT INSULATOR 1
Effective: 2021-04-20
Price: 11,00 € : 11,00 €
-+
33
P/N (SKU): 9CS#-020020-6600
Part Name: MUFFLER REAR HEAT INSULATOR
Effective: 2021-04-20
Price: 15,00 € : 15,00 €
-+
34
P/N (SKU): 30309-060900
Part Name: PLAIN WASHERS
Effective: 2021-04-20
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9DS#-021001-6000
Part Name: SEAL GASKET,GRAPHITE
Effective: 2021-04-20
Price: 3,00 € : 3,00 €
-+
36
P/N (SKU): 9CSV-021222-8000
Part Name: HEAT INSULATION GUARD 1
Effective: 2021-04-20
Price: 19,00 € : 19,00 €
-+
37
P/N (SKU): 9CSV-021223-8000
Part Name: HEAT INSULATION GUARD 2
Effective: 2021-04-20
Price: 19,00 € : 19,00 €
-+
38
P/N (SKU): 9CSV-021200-8000-23
Part Name: HEAT INSULATOR 1
Effective: 2021-04-20
Price: 3,50 € : 3,50 €
-+
39
P/N (SKU): 9CSV-021200-8000-24
Part Name: HEAT INSULATOR 2
Effective: 2021-04-20
Price: 3,50 € : 3,50 €
-+
40
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-04-20
Specification: 50-70
Price: 3,00 € : 3,00 €
-+
