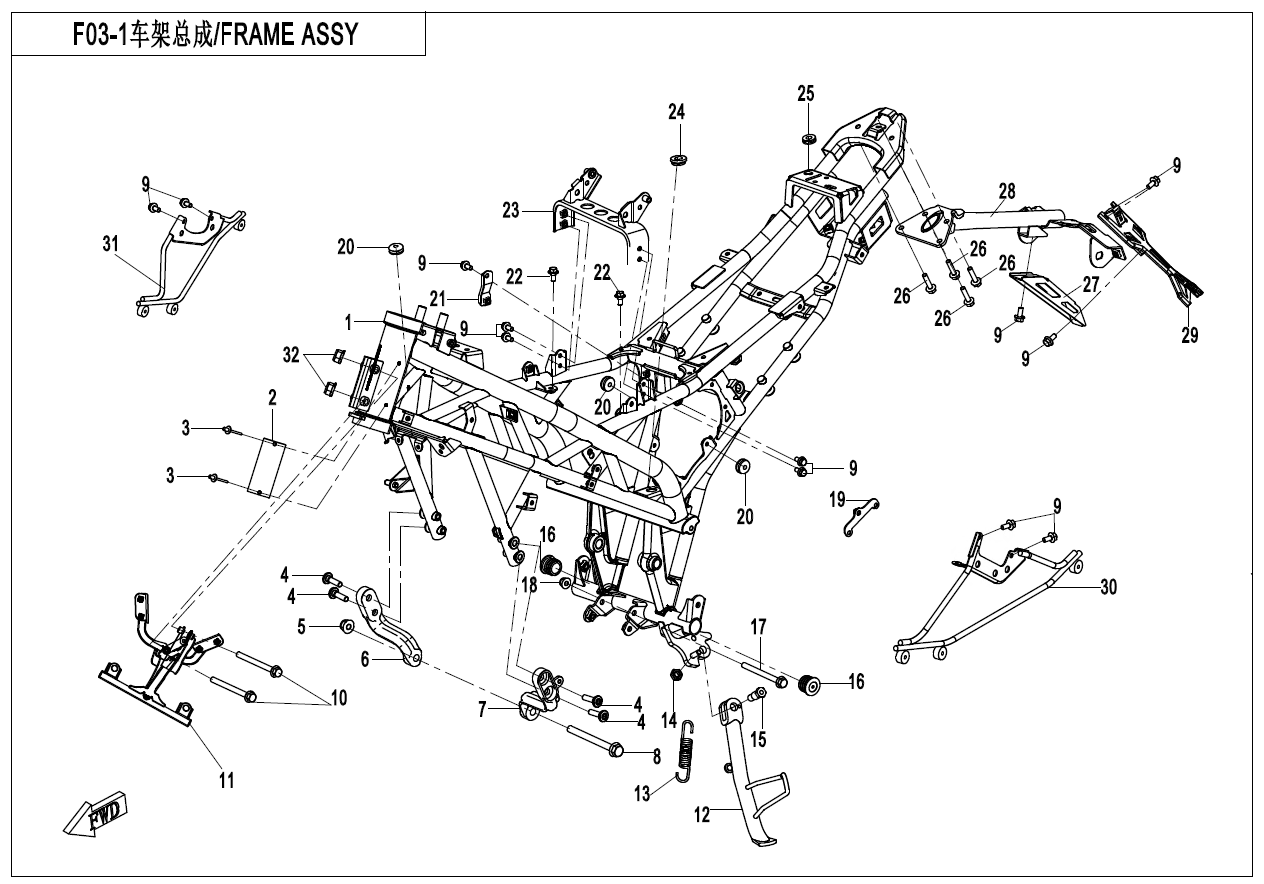

FRAME - F03-1

FRAME - F03-1

No.

01
P/N (SKU): 6KM#-031000-8004-01-0BP00
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-031000-8008-01-0BP00
Specification: MAUD SPIRIT BLACK
Price: 857,00 € : 857,00 €
01
P/N (SKU): 6KM#-031000-8004-01-0VG00
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-031000-8008-01-0VG00
Specification: NEBULA WHITE+ELECTROPHORESIS BLACK
Price: 963,00 € : 963,00 €
01
P/N (SKU): 6KM#-031000-8005-01-0BP00
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-031000-8007-01-0BP00
Specification: MAUD SPIRIT BLACK
Price: 785,00 € : 785,00 €
01
P/N (SKU): 6KM#-031000-8005-01-0VG00
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KMV-031000-8007-01-0VG00
Specification: NEBULA WHITE+ELECTROPHORESIS BLACK
Price: 944,00 € : 944,00 €
02
P/N (SKU): 6KN#-190012-8000
Part Name: VIN PLATE
Effective: 2021-02-26
Alternative parts: 6KNV-190011-A000
Price: 3,00 € : 3,00 €
03
P/N (SKU): 30902-0401320
Part Name: RIVET
Effective: 2021-02-26
Alternative parts:
Specification: φ4×13
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6KM0-140107
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6KM0-030006-1B200
Part Name: RH MOUNTING BRACKET, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 22,00 € : 22,00 €
-+
07
P/N (SKU): 6KM0-030005-1B200
Part Name: LH MOUNTING BRACKET, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 22,00 € : 22,00 €
-+
08
P/N (SKU): 30006-102110110
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×110
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 30006-060012870
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6x12@BLACK ZINC
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 6KM#-030400-8000-0B200
Part Name: FRONT BRACKET
Effective: 2021-02-26
Alternative parts: 6KM#-030400-8001-0B200
Price: 68,00 € : 68,00 €
12
P/N (SKU): 6KM0-030310-0B200
Part Name: SIDE BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 10,00 € : 10,00 €
-+
13
P/N (SKU): 6090-030006
Part Name: SIDE BRACKET SPRING
Effective: 2021-02-26
Alternative parts: FA8V-030006-1000
Price: 3,00 € : 3,00 €
14
P/N (SKU): 30208-102010
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): A000-030006
Part Name: SIDE STAND BOLT
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 6KJ0-030503
Part Name: RUBBER PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 30006-080090810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×90
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6KM0-030030-0B200
Part Name: BRACKET, CANISTER
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 11,00 € : 11,00 €
-+
20
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 6KM0-030050-0B200
Part Name: ABS BRACKET
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 3,00 € : 3,00 €
-+
22
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-02-26
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 6KM0-030100-2B200
Part Name: REAR MOUNTING ASSY,FUEL TANK
Effective: 2021-02-26
Remarks: Used with6KM0-041601-2H300 and 6KM0-041701-2H300 (or with 6KM0-041601-2H70 and 6KM0-041701-2H700)
Alternative parts:
Specification: MATTE BLACK
Price: 19,00 € : 19,00 €
-+
24
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 6KJ0-030601-0BB0
Part Name: SUPPORT PLATE, REAR LICENCE
Effective: 2021-02-26
Alternative parts:
Specification: PLASTIC POWDER
Price: 10,00 € : 10,00 €
-+
28
P/N (SKU): 6NT1-030100-0BB00
Part Name: REAR FENDER BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: PLASTIC POWDER
Price: 23,00 € : 23,00 €
-+
29
P/N (SKU): 6KM#-030110-8000-0BP00
Part Name: BRAKCET, REAR LICENSE
Effective: 2021-02-26
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 15,00 € : 15,00 €
-+
30
P/N (SKU): 6KM#-030040-8001-0B200
Part Name: LH BRACKET, DEFLECTOR
Effective: 2021-02-26
Alternative parts: 6090-040303+6KM#-030040-8002-0B200+6KM#-030050-8002-0B200+6KM#-040302-8000+6NQ#-000206-6001
Price: 21,00 € : 21,00 €
30
P/N (SKU): 6KM#-030040-8002-0B200
Part Name: LH BRACKET, DEFLECTOR
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 18,00 € : 18,00 €
-+
31
P/N (SKU): 6KM#-030050-8000-0B200
Part Name: RH BRACKET, DEFLECTOR
Effective: 2021-02-26
Alternative parts: 6090-040303+6KM#-030040-8002-0B200+6KM#-030050-8002-0B200+6KM#-040302-8000+6NQ#-000206-6001
Price: 18,00 € : 18,00 €
31
P/N (SKU): 6KM#-030050-8002-0B200
Part Name: RH BRACKET, DEFLECTOR
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 18,00 € : 18,00 €
-+
32
P/N (SKU): 30206-080510
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
