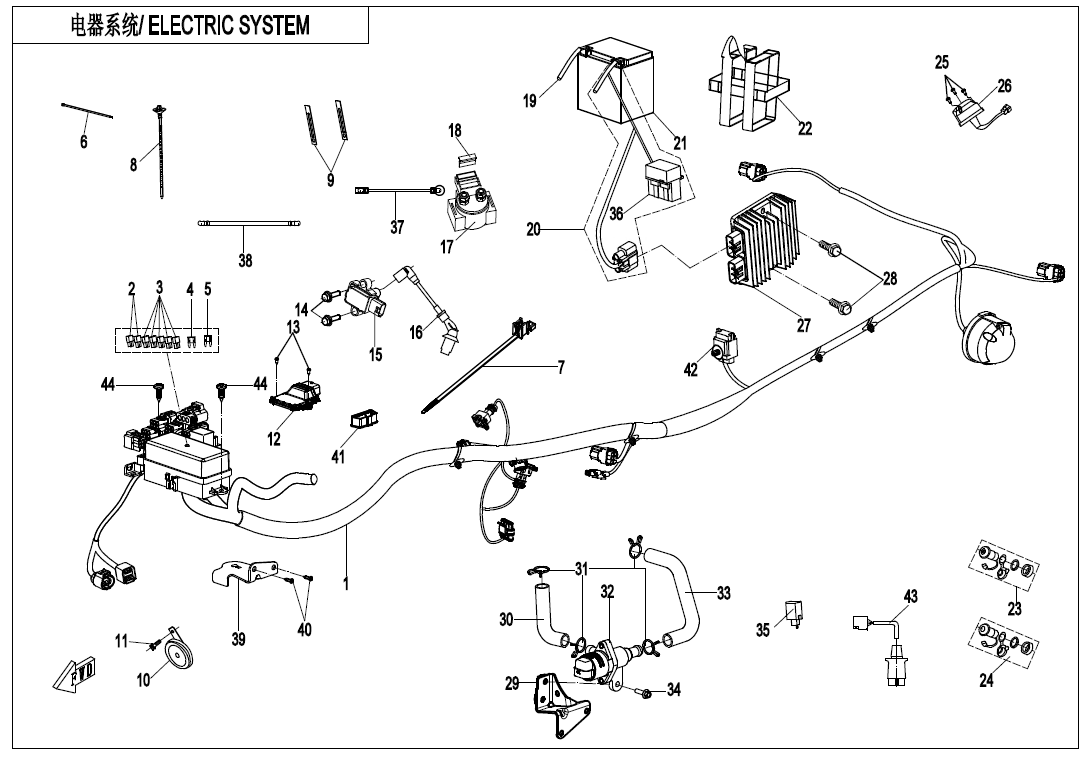

ELECTRIC SYSTEM - F15-1-V2 | 2020, ATV, CF600AU-3S

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 9DS#-150100-6101

Part Name: MAIN CABLE

Remarks: WITHOUT TURNING LIGHT

Alternative parts: 9DS#-150100-6102

Price: 470,00 € : 470,00 €

P/N (SKU): 9DS#-150100-6302

Part Name: MAIN CABLE

Remarks: WITH TURNING LIGHT

Alternative parts: 9DS#-150100-6303

Price: 509,00 € : 509,00 €

P/N (SKU): 9DS#-150100-6303

Part Name: MAIN CABLE

Remarks: WITH TURNING LIGHT

Alternative parts:

Price: 509,00 € : 509,00 €

P/N (SKU): 9DS#-150100-6102

Part Name: MAIN CABLE

Remarks: WITHOUT TURNING LIGHT

Alternative parts:

Price: 477,00 € : 477,00 €

P/N (SKU): 9DS#-150100-6104

Part Name: MAIN CABLE

Remarks: WITHOUT TURNING LIGHT

Alternative parts:

Price: 478,00 € : 478,00 €

P/N (SKU): 9DS#-150100-6305

Part Name: MAIN CABLE

Remarks: WITH TURNING LIGHT

Alternative parts:

Price: 488,00 € : 488,00 €

P/N (SKU): 9010-150350

Part Name: AUXILIARY RELAY

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 5BY4-150330

Part Name: AUXILIARY RELAY

Alternative parts:

Price: 7,50 € : 7,50 €

P/N (SKU): 806A-151305

Part Name: FUSE 15A

Alternative parts: 806A-151303

Specification: 15A

Price: 1,50 € : 1,50 €

P/N (SKU): 806A-151302

Part Name: FUSE 10A

Alternative parts:

Specification: 10A

Price: 2,50 € : 2,50 €

P/N (SKU): 8010-150003

Part Name: TIE BAND

Alternative parts:

Specification: 5x250

Price: 1,50 € : 1,50 €

P/N (SKU): 9DS#-150009-6100-M1

Part Name: TIE BAND ZDG4.7x194

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 7030-150005

Part Name: TIE BAND

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 0180-014010

Part Name: WIRE CLAMP

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 5020-150700

Part Name: ELECTRIC HORN

Alternative parts:

Price: 11,00 € : 11,00 €

P/N (SKU): 30006-080014810

Part Name: BOLT M8x14

Alternative parts:

Specification: M8x14

Price: 1,50 € : 1,50 €

P/N (SKU): 0GS0-174000-10000

Part Name: ECU ASSY

Remarks: INTERNATIONAL

Alternative parts: 9DS#-001000-6400

Price: 211,00 € : 211,00 €

P/N (SKU): 9DS#-001000-6200

Part Name: ECU ASSY

Remarks: EU168

Alternative parts:

Price: 210,00 € : 210,00 €

P/N (SKU): 9DS#-001000-6400

Part Name: ECU ASSY

Remarks: INTERNATIONAL

Alternative parts:

Price: 210,00 € : 210,00 €

P/N (SKU): 0GS0-174000

Part Name: ECU

Remarks: EU168

Alternative parts: 9DS#-001000-6200

Specification: FOR EU 168 ONLY

Price: 335,00 € : 335,00 €

P/N (SKU): 9DS#-001000-6000

Part Name: ECU ASSY

Remarks: NA

Alternative parts:

Price: 190,00 € : 190,00 €

P/N (SKU): 30105-060016410

Part Name: SCREW M6x16

Alternative parts:

Specification: M6x16

Price: 1,50 € : 1,50 €

P/N (SKU): 30006-060025810

Part Name: BOLT M6x25

Alternative parts:

Specification: M6x25

Price: 1,50 € : 1,50 €

P/N (SKU): 018B-178000

Part Name: IGNITION COIL

Alternative parts:

Price: 41,00 € : 41,00 €

P/N (SKU): 0GR0-178000

Part Name: HIGH-TENSION CABLE

Alternative parts:

Price: 16,00 € : 16,00 €

P/N (SKU): 9CR6-150310

Part Name: STARTER RELAY

Alternative parts:

Price: 25,00 € : 25,00 €

P/N (SKU): 5BY4-151301

Part Name: 30A FUSE

Alternative parts:

Price: 2,00 € : 2,00 €

P/N (SKU): 9DS#-150210-6000

Part Name: NEGATIVE WIRE, BATTERY

Alternative parts:

Price: 16,00 € : 16,00 €

P/N (SKU): 9DS#-150230-6002

Part Name: POSITIVE WIRE, BATTERY

Alternative parts:

Price: 34,00 € : 34,00 €

P/N (SKU): 9DS#-150230-6001

Part Name: POSITIVE WIRE, BATTERY

Alternative parts: 9DS#-150230-6002

Price: 31,00 € : 31,00 €

P/N (SKU): 31023004

Part Name: GEL BATTERY

Alternative parts:

Price: 272,00 € : 272,00 €

P/N (SKU): 9060-152100

Part Name: BELT, BATTERY

Alternative parts:

Price: 4,00 € : 4,00 €

P/N (SKU): 9GQ0-150600

Part Name: OUTPUT SEAT, USB

Alternative parts: 9GQ0-150600-10000

Price: 17,00 € : 17,00 €

P/N (SKU): 9GQ0-150500

Part Name: OUTPUT SEAT, POWER

Alternative parts: 9GQ0-150500-10000

Price: 14,00 € : 14,00 €

P/N (SKU): 30105-050030410

Part Name: SCREW M5x30

Alternative parts:

Specification: M5x30

Price: 1,50 € : 1,50 €

P/N (SKU): 7020-150800

Part Name: POWER SOCKET, TRAILER

Alternative parts:

Specification: ORDINARY

Price: 16,00 € : 16,00 €

P/N (SKU): 0800-177000-30000

Part Name: REGULATOR

Alternative parts:

Price: 137,00 € : 137,00 €

P/N (SKU): 30006-060030810

Part Name: BOLT M6x30

Alternative parts:

Specification: M6x30

Price: 1,50 € : 1,50 €

P/N (SKU): 9GQA-030010-20000

Part Name: BRACKET, STEPPER MOTOR

Alternative parts:

Price: 4,50 € : 4,50 €

P/N (SKU): 9GQA-001002

Part Name: EXHAUST PIPE, STEPPER MOTOR SEAT

Alternative parts:

Price: 12,00 € : 12,00 €

P/N (SKU): 30601-118010

Part Name: CLAMP A18

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 0GQ0-175000

Part Name: STEPPER MOTOR

Alternative parts:

Price: 90,00 € : 90,00 €

P/N (SKU): 9GQA-001001

Part Name: INLET PIPE, STEPPER MOTOR SEAT

Alternative parts:

Price: 18,00 € : 18,00 €

P/N (SKU): 0010-021019-0010

Part Name: BOLT M6x12

Alternative parts:

Specification: M6x12

Price: 1,50 € : 1,50 €

P/N (SKU): 9DS#-150340-6001

Part Name: FLASHER

Alternative parts: 9DS#-150340-6002+9DS#-160110-6202+9DS#-160120-6202

Price: 18,00 € : 18,00 €

P/N (SKU): CFC#-150008-4500

Part Name: FUSE 50A

Alternative parts:

Price: 3,50 € : 3,50 €

P/N (SKU): 9DS#-150220-6001

Part Name: CABLE, STARTER MOTOR

Alternative parts:

Price: 21,00 € : 21,00 €

P/N (SKU): 9DS#-150250-6000

Part Name: NEGATIVE CABLE, STARTER MOTOR

Alternative parts:

Price: 15,00 € : 15,00 €

P/N (SKU): 9DS#-030501-6000

Part Name: MOUNTING PLATE,FUSE BOX

Alternative parts:

Price: 4,00 € : 4,00 €

P/N (SKU): 30110-420130010

Part Name: SELF-TAPPING SCREW ST4.2x13

Alternative parts: 30110-421130010

Specification: ST4.2x13

Price: 1,50 € : 1,50 €

P/N (SKU): 5BY0-150304

Part Name: CAP, DIAGNOSIS CONNECTOR

Alternative parts:

Price: 9,50 € : 9,50 €

P/N (SKU): 9CR6-103501

Part Name: FUSE 40A

Alternative parts:

Specification: 40A

Price: 4,00 € : 4,00 €

P/N (SKU): 9010-151020

Part Name: JOINT SEAT, TRAILER POWER

Alternative parts:

Price: 16,00 € : 16,00 €

P/N (SKU): 30110-480160010

Part Name: SELF-TAPPING SCREW ST4.8x16

Alternative parts:

Specification: ST4.8x16

Price: 1,50 € : 1,50 €
