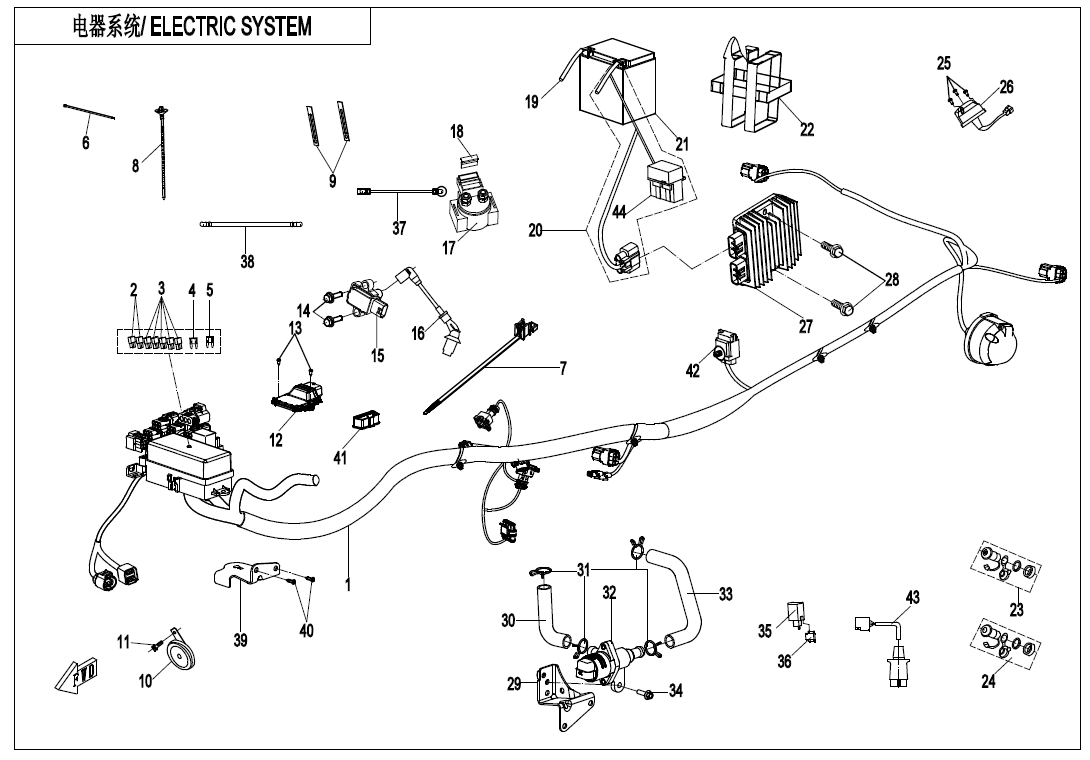

ELECTRIC SYSTEM - F15-1-V1

ELECTRIC SYSTEM - F15-1-V1

No.

01
P/N (SKU): 9CS#-150100-6703
Part Name: MAIN CABLE
Remarks: WITH TURNING LIGHT
Alternative parts:
Price: 502,70 € : 502,70 €
-+
01
P/N (SKU): 9CS#-150100-6502
Part Name: MAIN CABLE
Remarks: WITHOUT TURNING LIGHT
Alternative parts: 9CS#-150100-6504
Price: 470,10 € : 470,10 €
01
P/N (SKU): 9CS#-150100-6702
Part Name: MAIN CABLE
Remarks: WITH TURNING LIGHT
Alternative parts: 9CS#-150100-6703
Price: 502,70 € : 502,70 €
01
P/N (SKU): 9CS#-150100-6501
Part Name: MAIN CABLE
Remarks: WITHOUT TURNING LIGHT
Alternative parts: 9CS#-150100-6504
Price: 458,50 € : 458,50 €
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Alternative parts:
Price: 6,70 € : 6,70 €
-+
03
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Alternative parts:
Price: 7,00 € : 7,00 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Alternative parts: 806A-151303
Specification: 15A
Price: 1,00 € : 1,00 €
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Alternative parts:
Specification: 10A
Price: 2,20 € : 2,20 €
-+
06
P/N (SKU): 8010-150003
Part Name: TIE BAND
Alternative parts:
Specification: 5x250
Price: 1,30 € : 1,30 €
-+
07
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Alternative parts:
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Alternative parts:
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Alternative parts:
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Alternative parts:
Price: 9,90 € : 9,90 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT M8x14
Alternative parts:
Specification: M8x14
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 0GS0-174000-10000
Part Name: ECU ASSY
Remarks: INTERNATIONAL
Alternative parts: 9DS#-001000-6400
Price: 206,80 € : 206,80 €
12
P/N (SKU): 9DS#-001000-6200
Part Name: ECU ASSY
Remarks: EU168
Alternative parts:
Price: 206,20 € : 206,20 €
-+
12
P/N (SKU): 9DS#-001000-6400
Part Name: ECU ASSY
Remarks: INTERNATIONAL
Alternative parts:
Price: 206,20 € : 206,20 €
-+
12
P/N (SKU): 0GS0-174000
Part Name: ECU
Remarks: EU168
Alternative parts: 9DS#-001000-6200
Specification: FOR EU 168 ONLY
Price: 329,40 € : 329,40 €
12
P/N (SKU): 9DS#-001000-6000
Part Name: ECU ASSY
Remarks: NA
Alternative parts:
Price: 186,70 € : 186,70 €
-+
13
P/N (SKU): 30105-060016410
Part Name: SCREW M6x16
Alternative parts:
Specification: M6x16
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT M6x25
Alternative parts:
Specification: M6x25
Price: 1,00 € : 1,00 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Alternative parts:
Price: 39,60 € : 39,60 €
-+
16
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Alternative parts:
Price: 15,30 € : 15,30 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Alternative parts:
Price: 24,40 € : 24,40 €
-+
18
P/N (SKU): 5BY4-151301
Part Name: 30A FUSE
Alternative parts:
Price: 1,80 € : 1,80 €
-+
19
P/N (SKU): 9DS#-150210-6000
Part Name: NEGATIVE WIRE, BATTERY
Alternative parts:
Price: 15,00 € : 15,00 €
-+
20
P/N (SKU): 9DS#-150230-6001
Part Name: POSITIVE WIRE, BATTERY
Alternative parts: 9DS#-150230-6002
Price: 29,70 € : 29,70 €
21
P/N (SKU): 31023004
Part Name: GEL BATTERY
Alternative parts:
Price: 266,90 € : 266,90 €
-+
22
P/N (SKU): 9060-152100
Part Name: BELT, BATTERY
Alternative parts:
Price: 3,60 € : 3,60 €
-+
23
P/N (SKU): 9GQ0-150600
Part Name: OUTPUT SEAT, USB
Alternative parts: 9GQ0-150600-10000
Price: 16,29 € : 16,29 €
-+
24
P/N (SKU): 9GQ0-150500
Part Name: OUTPUT SEAT, POWER
Alternative parts: 9GQ0-150500-10000
Price: 13,05 € : 13,05 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW M5x30
Alternative parts:
Specification: M5x30
Price: 1,00 € : 1,00 €
-+
26
P/N (SKU): 7020-150800
Part Name: POWER SOCKET, TRAILER
Alternative parts:
Specification: ORDINARY
Price: 14,80 € : 14,80 €
-+
27
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Alternative parts:
Price: 133,90 € : 133,90 €
-+
28
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Alternative parts:
Specification: M6x30
Price: 1,00 € : 1,00 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: BRACKET, STEPPER MOTOR
Alternative parts:
Price: 4,00 € : 4,00 €
-+
30
P/N (SKU): 9GQA-001002
Part Name: EXHAUST PIPE, STEPPER MOTOR SEAT
Alternative parts:
Price: 11,35 € : 11,35 €
-+
31
P/N (SKU): 30601-118010
Part Name: CLAMP A18
Alternative parts:
Price: 1,00 € : 1,00 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR
Alternative parts:
Price: 88,50 € : 88,50 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: INLET PIPE, STEPPER MOTOR SEAT
Alternative parts:
Price: 16,92 € : 16,92 €
-+
34
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Alternative parts:
Specification: M6x12
Price: 1,00 € : 1,00 €
-+
35
P/N (SKU): 9DS#-150340-6000
Part Name: FLASHER
Alternative parts: 9DS#-150340-6001
Price: 17,60 € : 17,60 €
36
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Alternative parts:
Price: 1,00 € : 1,00 €
-+
37
P/N (SKU): 9CS#-150220-6701
Part Name: CABLE, STARTER MOTOR
Alternative parts:
Price: 57,04 € : 57,04 €
-+
38
P/N (SKU): 9CS#-150250-6700
Part Name: NEGATIVE CABLE, STARTER MOTOR
Alternative parts:
Price: 15,30 € : 15,30 €
-+
39
P/N (SKU): 9DS#-030501-6000
Part Name: MOUNTING PLATE,FUSE BOX
Alternative parts:
Price: 3,70 € : 3,70 €
-+
40
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW ST4.2x13
Alternative parts: 30110-421130010
Specification: ST4.2x13
Price: 1,00 € : 1,00 €
-+
41
P/N (SKU): 5BY0-150304
Part Name: CAP, DIAGNOSIS CONNECTOR
Alternative parts:
Price: 9,00 € : 9,00 €
-+
42
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Alternative parts:
Specification: 40A
Price: 3,50 € : 3,50 €
-+
43
P/N (SKU): 9010-151020
Part Name: JOINT SEAT, TRAILER POWER
Alternative parts:
Price: 15,66 € : 15,66 €
-+
44
P/N (SKU): CFC#-150008-4500
Part Name: FUSE 50A
Alternative parts:
Price: 3,00 € : 3,00 €
-+
