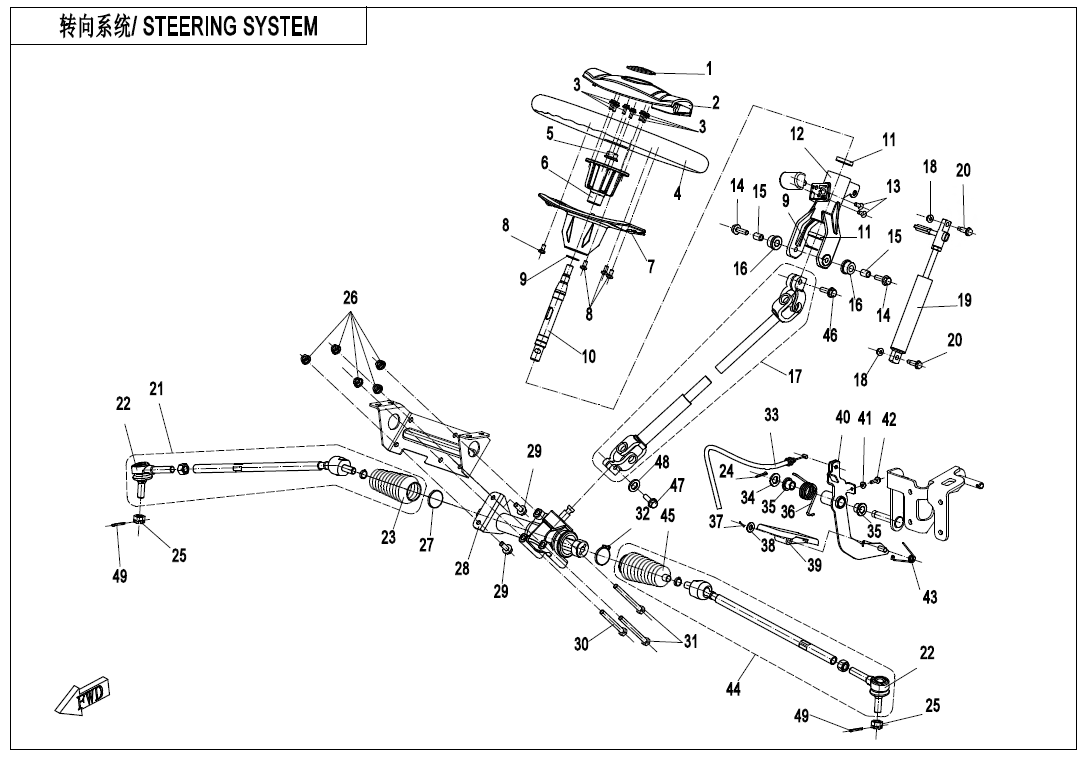

STEERING SYSTEM - F10-A-V3

STEERING SYSTEM - F10-A-V3

No.

01
P/N (SKU): 9060-190001
Part Name: CFMOTO LOGO 58x49
Effective: 2021-02-26
Alternative parts:
Specification: 58x49
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 7030-102002
Part Name: STEERING WHEEL UPPER DECO COVER
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
04
P/N (SKU): 7030-102100
Part Name: STEERING WHEEL
Effective: 2021-02-26
Alternative parts:
Price: 56,00 € : 56,00 €
-+
05
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 7030-100002
Part Name: FIXED SEAT, STEERING WHEEL
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
07
P/N (SKU): 7000-102003
Part Name: STEERING WHEEL LOWER DECO COVER
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
08
P/N (SKU): 30112-060012410
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts:
Specification: M6x12@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 20
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 7000-100001
Part Name: STEERING COLUMN
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
11
P/N (SKU): 30400-02005
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
12
P/N (SKU): 9060-101008-00001
Part Name: MOUNING BRACKET, STEERING WHEEL
Effective: 2021-02-26
Alternative parts: 5HYV-101008-1H00
Price: 40,00 € : 40,00 €
-+
13
P/N (SKU): 30107-060012410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6x12@COLOR ZINC-PLATED
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30006-080028810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x28@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9060-100008-00001
Part Name: STEERING COLUMN METAL BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9060-100009
Part Name: STEERING COLUMN NYLON BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
17
P/N (SKU): 9060-104010-1000
Part Name: UNIVERSAL SHAFT, STEERING
Effective: 2021-02-26
Alternative parts:
Price: 79,00 € : 79,00 €
-+
18
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9060-102000-00001
Part Name: GAS SPRING
Effective: 2021-02-26
Alternative parts:
Price: 31,00 € : 31,00 €
-+
20
P/N (SKU): 9060-102002-00001
Part Name: AIR SPRING UPPER FIXED BOLT
Effective: 2021-02-26
Alternative parts: 5HYV-103001-6000
Price: 2,00 € : 2,00 €
21
P/N (SKU): 7000-104200-30000
Part Name: RH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 80,00 € : 80,00 €
-+
22
P/N (SKU): 9060-101170
Part Name: STEERING KNUCKLE
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
22
P/N (SKU): 9030-101170
Part Name: STEERING KNUCKLE ASSY
Effective: 2021-02-26
Alternative parts: 9060-101170
Specification: SOMIC
Price: 19,00 € : 19,00 €
23
P/N (SKU): 9060-104001-10000
Part Name: JACKET OF JOINT-R
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 14,00 € : 14,00 €
-+
23
P/N (SKU): 9060-104001
Part Name: RH SLEEVE, TIE-ROD
Effective: 2021-02-26
Alternative parts: 9060-104001-10000
Specification: SOMIC
Price: 11,00 € : 11,00 €
24
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 9060-104060
Part Name: STEERING MOTOR
Effective: 2021-02-26
Alternative parts: 5BRV-104060-1000
Price: 101,00 € : 101,00 €
-+
29
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 30019-080075810
Part Name: BOLT M8x75
Effective: 2021-02-26
Alternative parts:
Specification: M8x75
Price: 2,00 € : 2,00 €
-+
31
P/N (SKU): 30019-080090810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x90@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: 50-70
Price: 3,00 € : 3,00 €
-+
33
P/N (SKU): 7000-105020-10000
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 5BWV-105020-1400
Price: 12,00 € : 12,00 €
33
P/N (SKU): 7000-105020
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 7000-105020-10000
Price: 11,00 € : 11,00 €
34
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9060-105002
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
36
P/N (SKU): 9060-105001
Part Name: TORSION SPRING, THROTTLE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30903-0202010
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2x20
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
39
P/N (SKU): 9060-105004
Part Name: THROTTLE PEDAL
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
40
P/N (SKU): 9060-105010-1B000
Part Name: THROTTLE PEDAL ASSY
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 16,00 € : 16,00 €
-+
40
P/N (SKU): 9060-105010-2B000
Part Name: THROTTLE PEDAL ASSY
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 17,00 € : 17,00 €
-+
41
P/N (SKU): 30202-050110
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M5
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 9060-105003
Part Name: FOOT PEDAL TORSION SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): 7000-104100-30000
Part Name: LH STEERING ROD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 68,00 € : 68,00 €
-+
45
P/N (SKU): 9060-104002-10000
Part Name: JACKET OF JOINT-L
Effective: 2021-02-26
Alternative parts:
Specification: CCVI
Price: 14,00 € : 14,00 €
-+
45
P/N (SKU): 9060-104002
Part Name: LH SLEEVE, TIE-ROD
Effective: 2021-02-26
Alternative parts: 9060-104002-10000
Specification: SOMIC
Price: 9,00 € : 9,00 €
46
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
47
P/N (SKU): 30004-080030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 9CR6-102003
Specification: M8x30
Price: 1,50 € : 1,50 €
48
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 30903-0252010
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: 2.5x20
Price: 1,50 € : 1,50 €
-+
