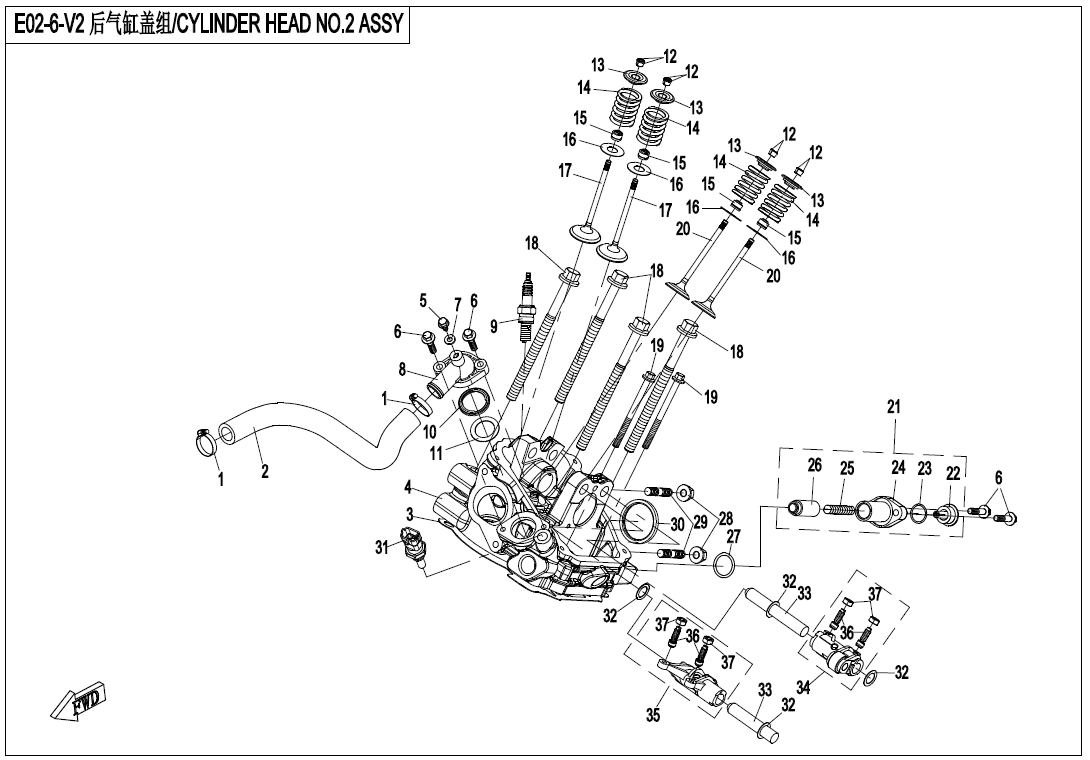

CYLINDER HEAD NO.2 ASSY. - E02-6-V2

CYLINDER HEAD NO.2 ASSY. - E02-6-V2

No.

01
P/N (SKU): 30603-125020
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: D25
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 0800-026001
Part Name: CYLINDER 2 WATER OUTLET HOSE
Effective: 2021-02-26
Alternative parts:
Price: 8,00 € : 8,00 €
-+
02
P/N (SKU): 0JYA-026001
Part Name: CONNECTING PIPE, FRONT @^ REAR CYLINDER
Effective: 2021-02-26
Alternative parts:
Price: 8,00 € : 8,00 €
-+
03
P/N (SKU): 0800-022200
Part Name: CYLINDER HEAD GASKET
Effective: 2021-02-26
Alternative parts: 0800-022200-00002
Price: 19,00 € : 19,00 €
04
P/N (SKU): 0800-026100-10000
Part Name: REAR CYLINDER HEAD ASSY
Effective: 2021-02-26
Alternative parts: 0010-022500-10000+0800-026100-10001
Price: 166,00 € : 166,00 €
04
P/N (SKU): 0800-026100-10001
Part Name: REAR CYLINDER HEAD ASSY
Effective: 2021-02-26
Alternative parts: 0800-026100-20001
Price: 186,00 € : 186,00 €
-+
05
P/N (SKU): 30132-480130030
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x13@CHROME-PLATED
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0800-022011
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 0800-022011-00001
Specification: 5.3x11x1.5
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0800-022013
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts: 0800-022013-10000
Price: 5,00 € : 5,00 €
09
P/N (SKU): 0800-022800
Part Name: SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
10
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 0800-026002
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 20.5x30x0.8
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
14
P/N (SKU): 0800-022006
Part Name: SPRING, VALVE
Effective: 2021-02-26
Alternative parts: 0800-022006-10000/0800-022006-10001
Price: 2,50 € : 2,50 €
15
P/N (SKU): 0010-022500
Part Name: VALVE STEM SEAL RING ASSY
Effective: 2021-02-26
Alternative parts: 0010-022500-10000
Price: 1,50 € : 1,50 €
15
P/N (SKU): 0010-022500-10000
Part Name: SEAL RING, VALVE STEM
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 13,00 € : 13,00 €
-+
18
P/N (SKU): 0800-022003
Part Name: CYLINDER BOLT
Effective: 2021-02-26
Alternative parts: 0800-022003-00001
Price: 3,00 € : 3,00 €
19
P/N (SKU): 0800-022009-00001
Part Name: BOLT M6x80
Effective: 2021-02-26
Alternative parts:
Specification: M6x80
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0800-022005
Part Name: EXHAUST VALVE
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
21
P/N (SKU): 0800-022400
Part Name: TENSIONER
Effective: 2021-02-26
Alternative parts: 0800-022400-10000
Price: 17,00 € : 17,00 €
22
P/N (SKU): 0800-022402
Part Name: SCREW PLUG, TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
23
P/N (SKU): 0800-022407
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 17x1.45
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 0800-022401
Part Name: HOUSING, CHAIN TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
25
P/N (SKU): 0800-022405
Part Name: SPRING, CHAIN TENSIONER
Effective: 2021-02-26
Alternative parts: 080V-022405-1200
Price: 2,50 € : 2,50 €
26
P/N (SKU): 0800-022410
Part Name: PLUNGER, CHAIN TENSIONER
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
27
P/N (SKU): 0800-022017
Part Name: TENSIONER SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 20.8x2.4
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): 0010-011700-0010
Part Name: FLANGE NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2021-02-26
Alternative parts: 0180-022003-00002
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
31
P/N (SKU): 0800-026200
Part Name: WATER TEMPERATURE SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
32
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.3x18.5x0.5
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
34
P/N (SKU): 0800-022600-20000
Part Name: ROCKER ARM ASSY, AIR EXHAUST
Effective: 2021-02-26
Alternative parts:
Price: 28,00 € : 28,00 €
-+
35
P/N (SKU): 0800-022500-20000
Part Name: ROCKER ARM ASSY, AIR INTAKE
Effective: 2021-02-26
Alternative parts:
Price: 27,00 € : 27,00 €
-+
36
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
37
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
