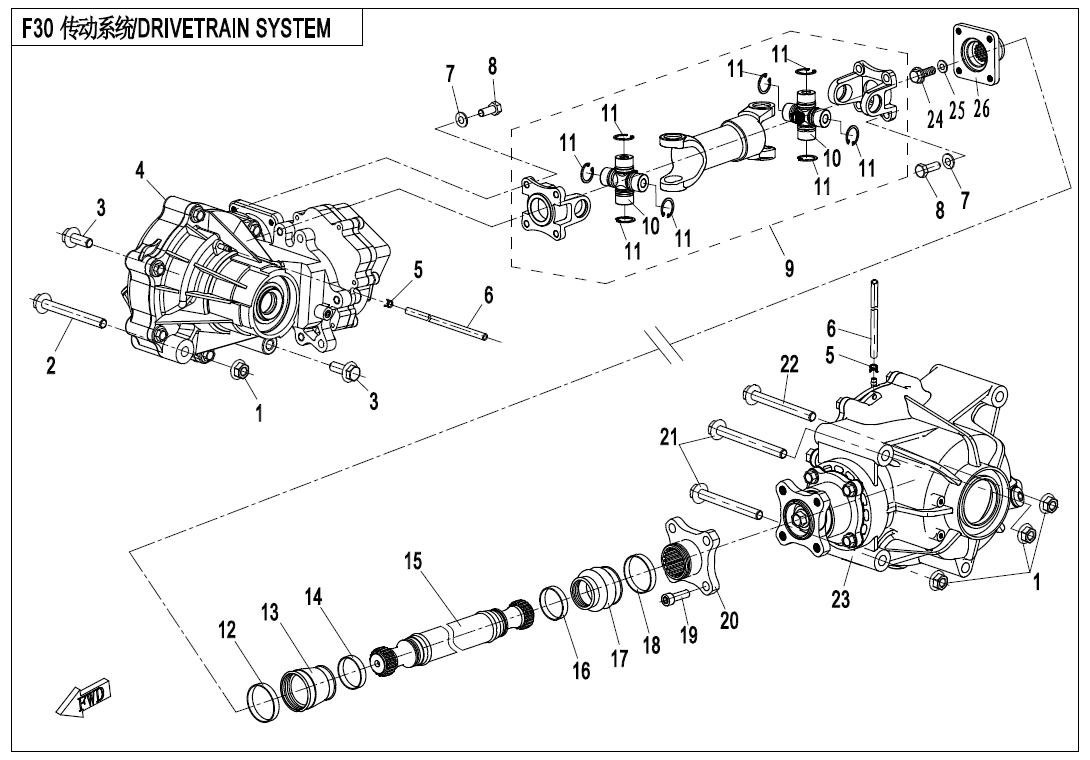

DRIVETRAIN SYSTEM - F30

DRIVETRAIN SYSTEM - F30

No.

01
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 30006-102090810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×90
Price: 3,00 € : 3,00 €
-+
03
P/N (SKU): 30006-102025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×25
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0180-310000-1000
Part Name: FRONT GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: 0180-310000-10001
Price: 525,00 € : 525,00 €
04
P/N (SKU): 0180-310000-10001
Part Name: FRONT GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q800-310000-00001
Price: 792,00 € : 792,00 €
05
P/N (SKU): 30601-108010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2021-02-26
Specification: A8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 9010-310001
Part Name: FRONT GEAR CASE BREATHER HOSE
Effective: 2021-02-26
Alternative parts: 9010-310001-1000
Price: 5,00 € : 5,00 €
-+
07
P/N (SKU): 30306-080112
Part Name: PLAIN WASHERS
Effective: 2021-02-26
Specification: φ8
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 9010-290001
Part Name: BOLT M8x1x22
Effective: 2021-02-26
Specification: M8x1x22
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 7020-290100-00001
Part Name: FRONT DRIVE SHAFT
Effective: 2021-02-26
Price: 107,00 € : 107,00 €
-+
10
P/N (SKU): 7020-290130-10000
Part Name: UNIVERSAL JOINT Dia 25x64
Effective: 2021-02-26
Specification: Dia 25x64
Price: 19,00 € : 19,00 €
-+
11
P/N (SKU): 30800-02505
Part Name: CIRCLIPS FOR HOLES
Effective: 2021-02-26
Specification: 25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9GQ0-290104
Part Name: BIG CLAMP
Effective: 2021-02-26
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 9GQ0-290103-10000
Part Name: DUST BOOT
Effective: 2021-02-26
Alternative parts: 9DQV-290101-6201
Price: 7,00 € : 7,00 €
-+
14
P/N (SKU): 9GQ0-290102
Part Name: SMALL CLAMP
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): 9AWA-300110
Part Name: REAR DRIVE SHAFT ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-300110-00001
Price: 52,00 € : 52,00 €
16
P/N (SKU): 9CR6-300202
Part Name: BIG CLAMP
Effective: 2021-02-26
Price: 2,50 € : 2,50 €
-+
17
P/N (SKU): 9CR6-300203-10000
Part Name: DUST BOOT
Effective: 2021-02-26
Alternative parts: 9AWV-300103-8001+9GQ0-290102+9GQ0-290104
Price: 7,00 € : 7,00 €
18
P/N (SKU): 9CR6-300204
Part Name: SMALL CLAMP
Effective: 2021-02-26
Price: 3,00 € : 3,00 €
-+
19
P/N (SKU): 30102-102025810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Specification: M10x1.25x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9CR6-300206-10000
Part Name: REAR GEAR CASE DRIVE SLEEVE
Effective: 2021-02-26
Price: 61,00 € : 61,00 €
-+
21
P/N (SKU): 30006-102120810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×120@COLOR ZINC TRIVALENT CHROMIUM
Price: 3,00 € : 3,00 €
-+
22
P/N (SKU): 30006-102140810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Specification: M10×1.25×140
Price: 3,00 € : 3,00 €
-+
23
P/N (SKU): Q850-330000-10000
Part Name: REAR GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q850-330000-00001
Price: 1 232,00 € : 1 232,00 €
23
P/N (SKU): Q850-330000-10001
Part Name: REAR GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q850-330000-00001
Price: 1 297,00 € : 1 297,00 €
23
P/N (SKU): Q850-330000-00001
Part Name: REAR GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q850-330000-00002
Price: 2 098,00 € : 2 098,00 €
23
P/N (SKU): Q850-330000
Part Name: REAR GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q850-330000-00001
Price: 1 996,00 € : 1 996,00 €
24
P/N (SKU): 30006-100030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-102030810
Specification: M10x30
Price: 2,00 € : 2,00 €
25
P/N (SKU): 7020-290002
Part Name: GASKET
Effective: 2021-02-26
Specification: 10.2x30x5
Price: 3,00 € : 3,00 €
-+
26
P/N (SKU): 7020-290001
Part Name: COUPLER, OUTPUT SHAFT
Effective: 2021-02-26
Price: 33,00 € : 33,00 €
-+
