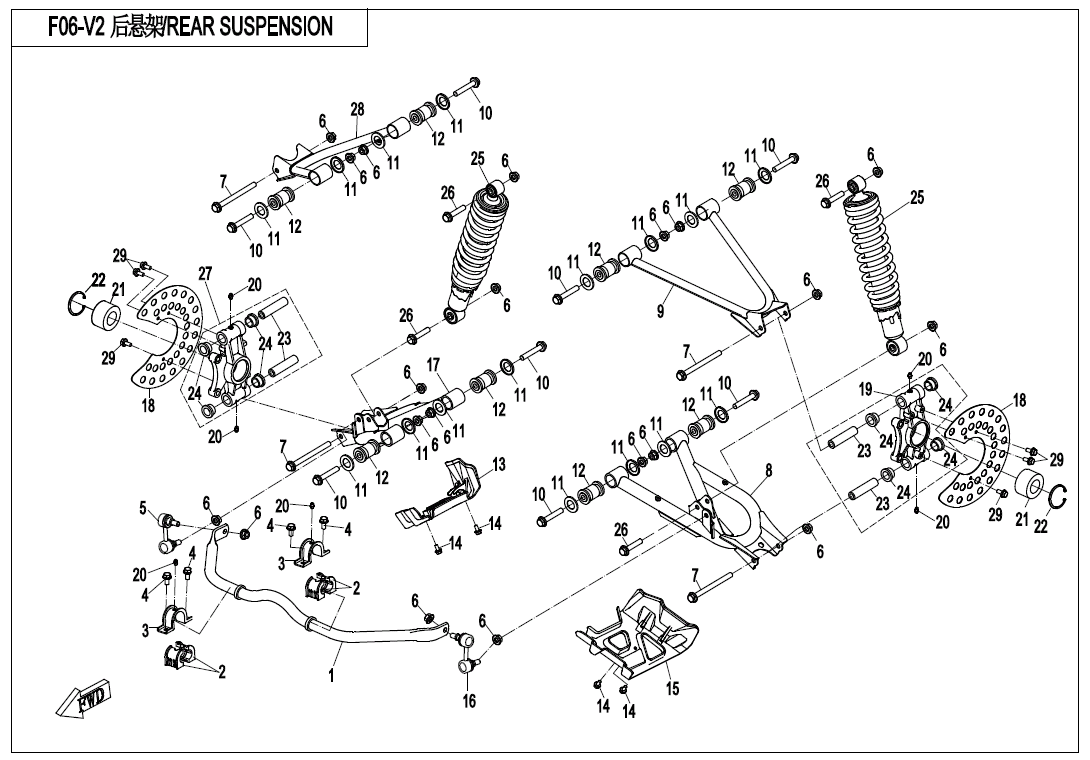

REAR SUSPENSION - F06-V2

REAR SUSPENSION - F06-V2

No.

01
P/N (SKU): 9010-060500
Part Name: SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 62,00 € : 62,00 €
-+
02
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
03
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): 30006-080012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×12
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 28,00 € : 28,00 €
05
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
06
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x100
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 9010-060400-10001
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts: 9010-060400-20000
Specification: 168 REGULATIONS, INCREASING THE OIL TUBE INSTALLATION
Price: 48,00 € : 48,00 €
08
P/N (SKU): 9010-060400-2B000
Part Name: REAR LOWER SWING ARM, LH
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 59,00 € : 59,00 €
-+
09
P/N (SKU): 9010-060300-10000
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060300-20000
Price: 30,00 € : 30,00 €
10
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-02-26
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
12
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-02-26
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 901B-040022-10000
Part Name: REAR SUSPENSION FENDER, RH
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
14
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
15
P/N (SKU): 901B-040021-10000
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
16
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 77,00 € : 77,00 €
16
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2021-02-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
17
P/N (SKU): 9010-060200-10001
Part Name: RH REAR LOWER SWING ARM
Effective: 2021-02-26
Alternative parts: 9010-060200-20000
Specification: 169 REGULATIONS, INCREASING THE OIL TUBE INSTALLATION
Price: 48,00 € : 48,00 €
17
P/N (SKU): 9010-060200-2B000
Part Name: REAR LOWER SWING ARM, RH
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 59,00 € : 59,00 €
-+
18
P/N (SKU): 7020-060003
Part Name: GUARD, REAR BEARING CARRIER
Effective: 2021-02-26
Alternative parts:
Price: 8,50 € : 8,50 €
-+
19
P/N (SKU): 7020-0607A0
Part Name: LH REAR BEARING CARRIER ASSY,
Effective: 2021-02-26
Alternative parts:
Price: 84,00 € : 84,00 €
-+
20
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30499-03080
Part Name: BEARING, HUB
Effective: 2021-02-26
Alternative parts: 9GQ0-050710
Specification: 30
Price: 32,00 € : 32,00 €
22
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
23
P/N (SKU): 7020-060702
Part Name: REAR WHEEL SHAFT CARRIER MIDDLE SPACER
Effective: 2021-02-26
Alternative parts: 7020-060702-00001
Price: 6,00 € : 6,00 €
24
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
25
P/N (SKU): 9CRB-060600
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: OIL SHOCK ABSORBER@BLACK
Price: 150,00 € : 150,00 €
-+
25
P/N (SKU): 9CRB-060600-10000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: GAS SHOCK ABSORBER@RED SP
Price: 104,00 € : 104,00 €
-+
26
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 7020-0608A0
Part Name: REAR RH BEARING SEAT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 75,00 € : 75,00 €
-+
28
P/N (SKU): 9010-060100-10000
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-02-26
Alternative parts: 9010-060100-20000
Price: 34,00 € : 34,00 €
29
P/N (SKU): 30006-060010810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×10
Price: 1,50 € : 1,50 €
-+
