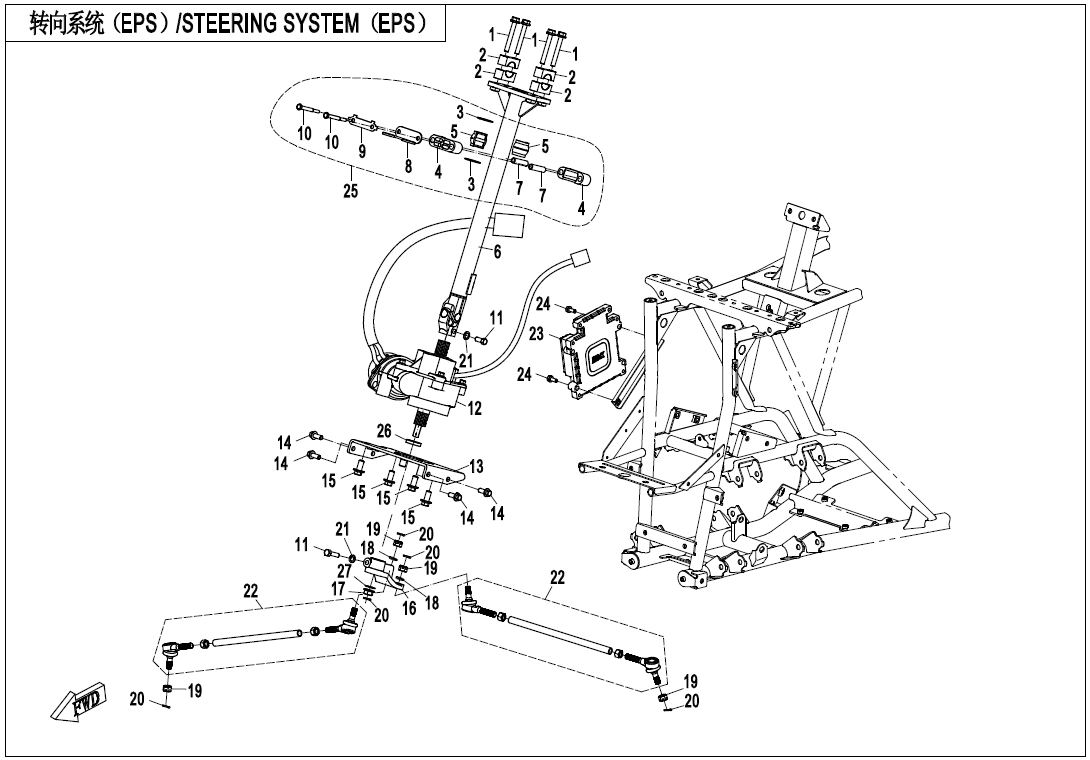

STEERING SYSTEM(EPS) - F10-2-B-V1

STEERING SYSTEM(EPS) - F10-2-B-V1

No.

01
P/N (SKU): 30006-080055810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×55
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 9010-030006
Part Name: HANDLEBAR ALLUMINUM COVER
Effective: 2021-02-26
Alternative parts: 9DSV-100001-6K01
Price: 8,50 € : 8,50 €
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 32x1.8
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
05
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2021-02-26
Alternative parts:
Price: 9,00 € : 9,00 €
-+
06
P/N (SKU): 9CR6-103100-10000
Part Name: EPS STEERING STEM ASSY
Effective: 2021-02-26
Alternative parts: 9DSV-102100-6R00/9DSV-102100-6R01
Price: 54,00 € : 54,00 €
07
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
08
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
09
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2021-02-26
Alternative parts:
Specification: M8x75
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2021-02-26
Alternative parts:
Specification: M8x35
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 9CR6-103300-10000
Part Name: EPS DRIVER
Effective: 2021-02-26
Alternative parts: 9CR6-103300-20000
Price: 677,00 € : 677,00 €
12
P/N (SKU): 9CR6-103300-20000
Part Name: EPS DRIVER
Effective: 2021-02-26
Alternative parts:
Price: 714,00 € : 714,00 €
-+
13
P/N (SKU): 9CR6-102200
Part Name: PLATE, STEERING STEM
Effective: 2021-02-26
Alternative parts:
Price: 21,00 € : 21,00 €
-+
14
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts: 30006-102020810
Specification: M10x20
Price: 2,00 € : 2,00 €
16
P/N (SKU): 9CR6-102001
Part Name: STEERING ARM
Effective: 2021-02-26
Alternative parts:
Price: 29,00 € : 29,00 €
-+
17
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30306-100110
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30306-100112
Specification: 10
Price: 2,00 € : 2,00 €
19
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 9010-100530
Part Name: STEERING ROD
Effective: 2021-02-26
Alternative parts: 9010-100530-20000
Price: 38,00 € : 38,00 €
22
P/N (SKU): 9010-100530-20000
Part Name: STEERING ROD
Effective: 2021-02-26
Alternative parts:
Price: 42,00 € : 42,00 €
-+
23
P/N (SKU): 9CR6-151000
Part Name: EPS CONTROLLER
Effective: 2021-02-26
Alternative parts: 9CR6-103300-30000+9CR6-151000-10000
Price: 331,00 € : 331,00 €
-+
24
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 7020-1006A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 33,00 € : 33,00 €
-+
26
P/N (SKU): 9CR6-103003
Part Name: SPLINE SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
27
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
