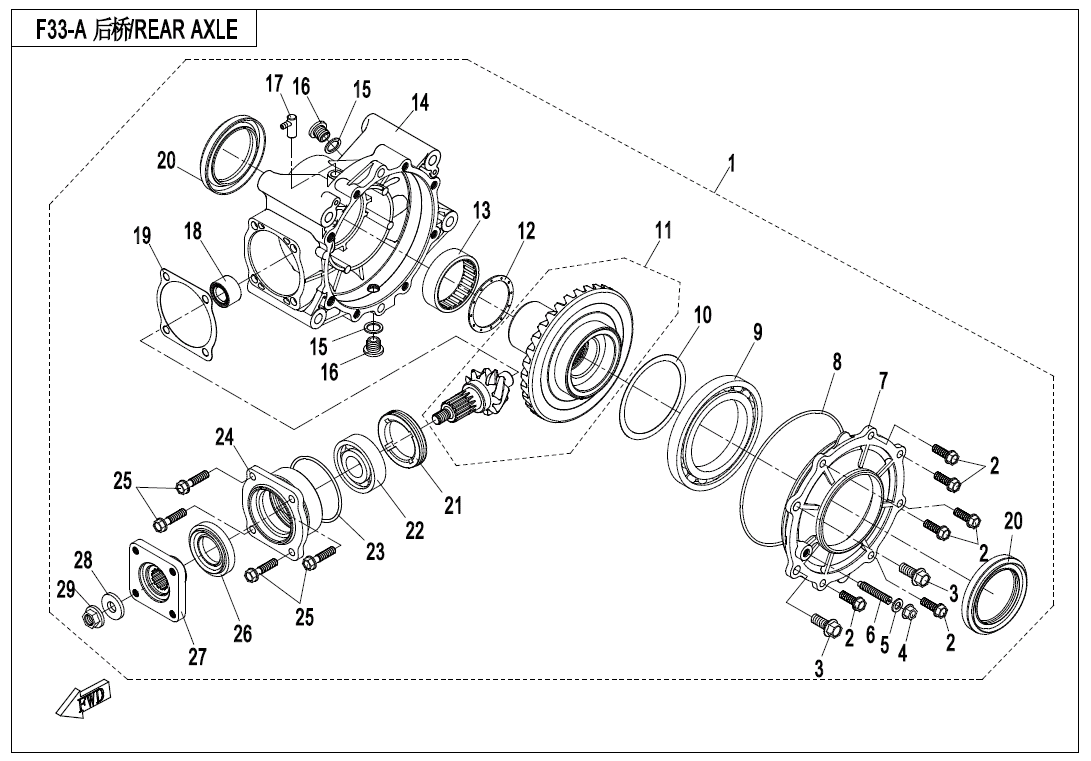

REAR AXLE(2017) - F33-A

REAR AXLE(2017) - F33-A

No.

01
P/N (SKU): Q530-330000-1000
Part Name: REAR GEAR CASE ASSY
Effective: 2021-02-26
Alternative parts: Q530-330000-10001
Price: 461,00 € : 461,00 €
02
P/N (SKU): 30008-080025810
Part Name: BOLT ASSY
Effective: 2021-02-26
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0180-330004-0010
Part Name: BOLT M10×1.25×25
Effective: 2021-02-26
Alternative parts: 30001-102025810
Specification: M10x1.25x25
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): 0180-334006-0010
Part Name: NUT M8
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0180-334004
Part Name: GASKET
Effective: 2021-02-26
Alternative parts:
Specification: 8.2x15x1.5
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 0180-334005-0010
Part Name: INNER HEX BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x45@GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 0180-334001-0080
Part Name: RH COVER, REAR GEAR CASE CASE
Effective: 2021-02-26
Alternative parts:
Price: 18,00 € : 18,00 €
-+
08
P/N (SKU): 0180-334002
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 151x3
Price: 3,50 € : 3,50 €
-+
09
P/N (SKU): 30499-08500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 16017
Price: 53,00 € : 53,00 €
-+
10
P/N (SKU): 0180-330002-0002
Part Name: ADJUSTING GASKET 2
Effective: 2021-02-26
Alternative parts:
Specification: 100x86x0.4
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 0180-330002-0001
Part Name: ADJUSTING GASKET 2
Effective: 2021-02-26
Alternative parts:
Specification: 100x86x0.3
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 0180-330002
Part Name: ADJUSTING GASKET 2
Effective: 2021-02-26
Alternative parts:
Specification: 100x86x0.2
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): Q510-330010
Part Name: BEVEL GEAR ASSY REAR ALXE
Effective: 2021-02-26
Alternative parts: Q510-330010-00001
Price: 162,00 € : 162,00 €
12
P/N (SKU): 0180-330001-0002
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Alternative parts:
Specification: 1.4
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 0180-330001-0001
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Alternative parts:
Specification: 1.2
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 0180-330001
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Alternative parts:
Specification: 1
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 0180-330001-0004
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Alternative parts:
Specification: 1.8
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 0180-330001-0003
Part Name: ADJUSTING GASKET 1
Effective: 2021-02-26
Alternative parts:
Specification: 1.6
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 30404-05500
Part Name: NEEDLE BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 55BTM6720A
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): Q530-332001
Part Name: REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 171,00 € : 171,00 €
-+
15
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0180-021008-0010
Part Name: BOLT M14×1.25×12
Effective: 2021-02-26
Alternative parts: 0180-021008-00001
Specification: M14x1.25x12
Price: 4,50 € : 4,50 €
17
P/N (SKU): 0180-332006
Part Name: PIPE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
18
P/N (SKU): 30403-01700
Part Name: NEEDLE BEARING
Effective: 2021-02-26
Alternative parts:
Specification: NA5903(17x30x18)
Price: 17,00 € : 17,00 €
-+
19
P/N (SKU): 0180-330003-0001
Part Name: ADJUST GASKET
Effective: 2021-02-26
Alternative parts:
Specification: ADJUST GASKET 0.6
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 0180-330003-0002
Part Name: ADJUST GASKET
Effective: 2021-02-26
Alternative parts:
Specification: ADJUST GASKET 0.4
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 0180-330003
Part Name: ADJUST GASKET
Effective: 2021-02-26
Alternative parts:
Specification: ADJUST GASKET 0.5
Price: 3,00 € : 3,00 €
-+
20
P/N (SKU): 0180-334003
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: SD465x90x9NS
Price: 16,00 € : 16,00 €
-+
21
P/N (SKU): Q510-331003
Part Name: BEARING RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 9,50 € : 9,50 €
-+
22
P/N (SKU): 30499-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6305C3@NTN
Price: 20,00 € : 20,00 €
-+
23
P/N (SKU): 0180-331004
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 64.5x3
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): Q510-331001
Part Name: BEVEL GEAR BEARING HOUSING
Effective: 2021-02-26
Alternative parts:
Price: 23,00 € : 23,00 €
-+
25
P/N (SKU): 30008-080035810
Part Name: BOLT M8×35
Effective: 2021-02-26
Alternative parts:
Specification: M8x35@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0180-331007
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 35×61×9_14
Price: 8,50 € : 8,50 €
-+
27
P/N (SKU): Q510-331004-1000
Part Name: INPUT COUPLER
Effective: 2021-02-26
Alternative parts:
Price: 29,00 € : 29,00 €
-+
28
P/N (SKU): 0180-331008-0050
Part Name: GASKET
Effective: 2021-02-26
Alternative parts:
Specification: 12.5x30x4
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 0180-331009-0020
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M12x1.25
Price: 2,00 € : 2,00 €
-+
