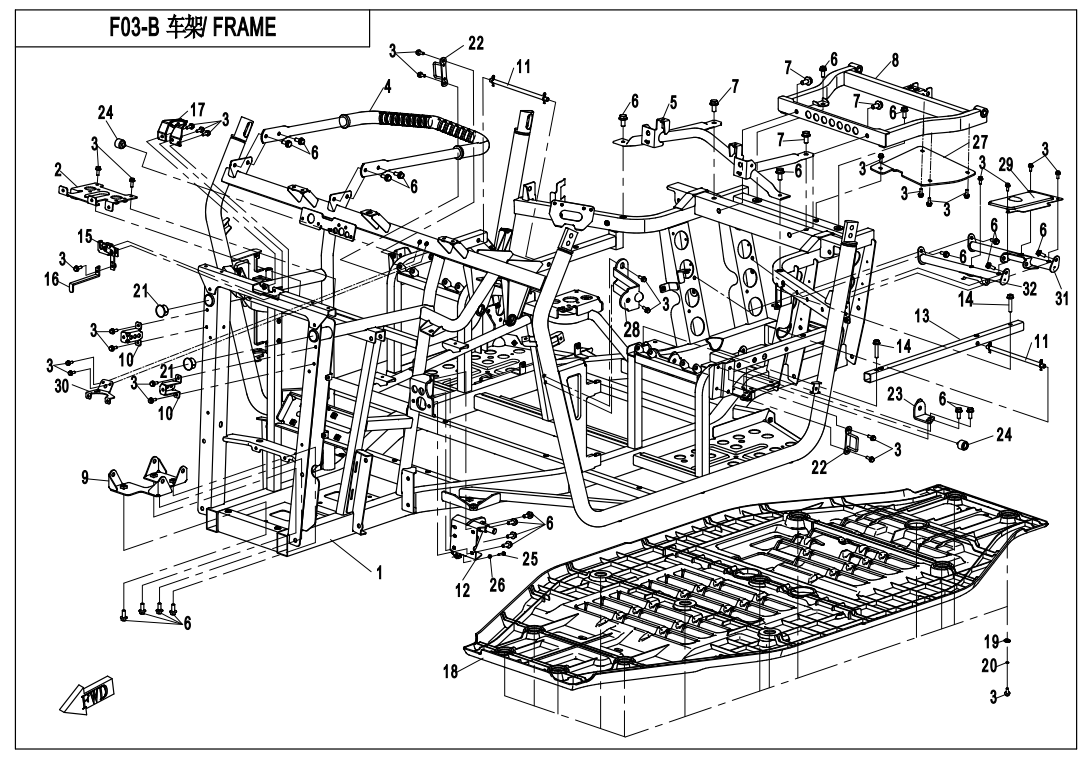

FRAME(2018 CONDITION) - F03-B

FRAME(2018 CONDITION) - F03-B

No.

01
P/N (SKU): 5UWB-031000
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 5UWB-031000-20000
Price: 1 507,00 € : 1 507,00 €
02
P/N (SKU): 7030-037110
Part Name: UPPER BRACKET, RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
03
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 7030-037210
Part Name: FRONT ARMREST RAIL ASSY
Effective: 2021-02-26
Alternative parts: 7030-037210-10000
Price: 53,00 € : 53,00 €
05
P/N (SKU): 7030-037400-10000
Part Name: SEAT BELT BUCKLE BRACKET ASSY
Effective: 2021-02-26
Alternative parts: 7030-037400-20000
Price: 45,00 € : 45,00 €
06
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30001-102025810
Part Name: BOLT M10x1.25x25
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x25
Price: 3,00 € : 3,00 €
-+
08
P/N (SKU): 7030-037600-10000
Part Name: BRACKET, CARGO BOX
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 67,00 € : 67,00 €
-+
09
P/N (SKU): 7030-038110-10000
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 17,00 € : 17,00 €
-+
10
P/N (SKU): 7030-038210
Part Name: TOP COVER BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
11
P/N (SKU): 7030-037810
Part Name: ROD, SEAT LOCK
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
12
P/N (SKU): 7030-039110
Part Name: BRACKET, FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 27,00 € : 27,00 €
-+
13
P/N (SKU): 7030-037710
Part Name: INNER BEAM, LH SEAT
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 7030-010200
Part Name: LOCK, FRONT COVER
Effective: 2021-02-26
Alternative parts:
Price: 22,00 € : 22,00 €
-+
16
P/N (SKU): 7030-010201
Part Name: LEVER, FRONT COVER LOCK
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
17
P/N (SKU): 7030-040192
Part Name: SUPPORT PLATE, SPRING
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
18
P/N (SKU): 7030-040711-10000
Part Name: SKID PLATE
Effective: 2021-02-26
Alternative parts:
Price: 115,00 € : 115,00 €
-+
19
P/N (SKU): 9060-040028
Part Name: SKID PLATE GASKET
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 30303-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ6
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9060-038123
Part Name: FRAME PLUG
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
22
P/N (SKU): 7030-370700
Part Name: LOCK HOOK
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
23
P/N (SKU): 7030-038711
Part Name: REAR JOINT PLATE,ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
24
P/N (SKU): 9030-370901-10000
Part Name: CUSHION RUBBER
Effective: 2021-02-26
Alternative parts: 9030-370901-10001
Price: 3,00 € : 3,00 €
25
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30200-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 7030-030001
Part Name: HEAT INSULATOR, CARGO BOX
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
28
P/N (SKU): 7030-030010
Part Name: BRACKET, OIL STEEL PIPE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
29
P/N (SKU): 5UWB-030001
Part Name: HEAT INSULATION PLATE, REAR?GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
30
P/N (SKU): 5UWB-030120
Part Name: MOUNTING BRACKET, OIL CUP
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
31
P/N (SKU): 5UWB-030200
Part Name: REAR MOUNTING ASSY, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 15,00 € : 15,00 €
-+
32
P/N (SKU): 5UWB-030300
Part Name: FRONT MOUNTING ASSY, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 15,00 € : 15,00 €
-+
