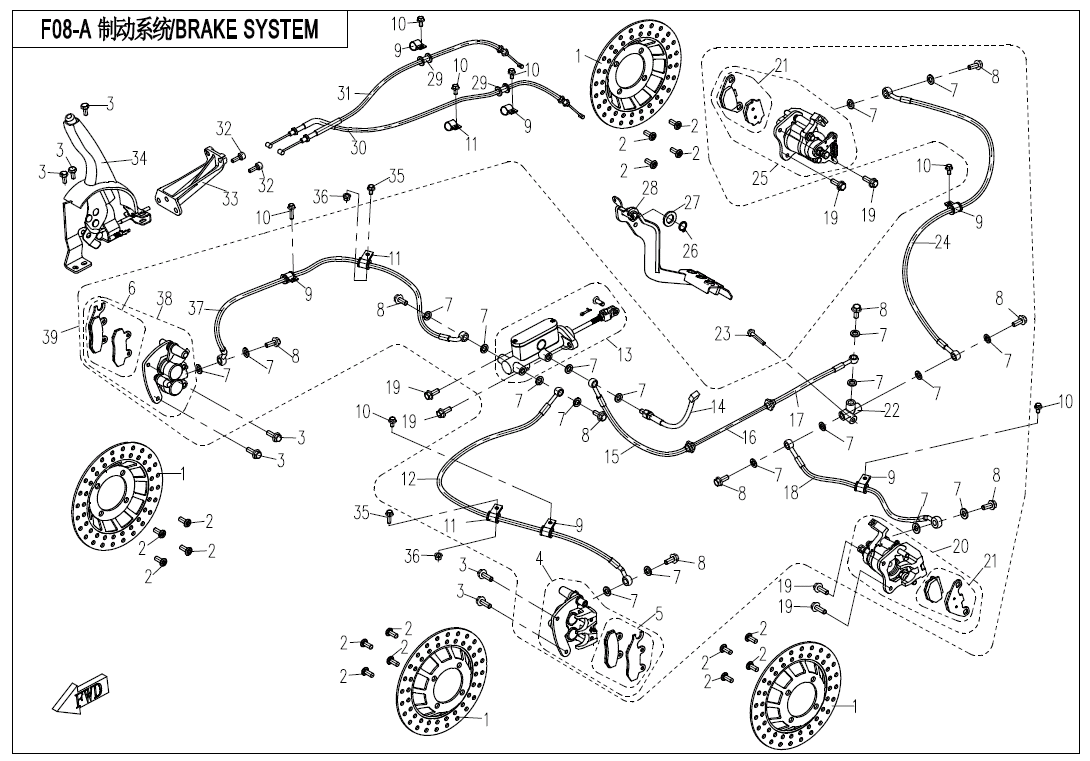

BRAKE SYSTEM(2017-MAIN PUMP@^OIL CUP-ALL IN ONE) - F08-A

BRAKE SYSTEM(2017-MAIN PUMP@^OIL CUP-ALL IN ONE) - F08-A

No.

01
P/N (SKU): 9010-080001
Part Name: FRONT BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 28,00 € : 28,00 €
-+
01
P/N (SKU): 7020-080003
Part Name: FRONT BRAKE DISC
Effective: 2021-02-26
Remarks: ONLY FOR RUSSIA
Alternative parts: 7020-080003-00001
Specification: BORROW 168 REGULATIONS, WHEEL SIDE BRAKE
Price: 29,00 € : 29,00 €
01
P/N (SKU): 7020-080003-00001
Part Name: FRONT BRAKE DISC
Effective: 2021-02-26
Alternative parts:
Price: 27,00 € : 27,00 €
-+
02
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 7030-081300
Part Name: LH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 49,00 € : 49,00 €
-+
04
P/N (SKU): 7030-085300
Part Name: LH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SINTERING
Price: 78,00 € : 78,00 €
-+
05
P/N (SKU): 7030-0853A0
Part Name: FRONT BRAKE PAD, LH
Effective: 2021-02-26
Alternative parts:
Specification: SINTERING/OPTIONAL
Price: 17,00 € : 17,00 €
-+
06
P/N (SKU): 7030-0854A0
Part Name: FRONT BRAKE PAD, RH
Effective: 2021-02-26
Alternative parts:
Specification: SINTERED PAD
Price: 19,00 € : 19,00 €
-+
07
P/N (SKU): 901B-080102
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 0010-060010
Specification: 80
Price: 1,50 € : 1,50 €
08
P/N (SKU): 9010-080101-B000
Part Name: BANJO BOLT
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9010-080104
Part Name: CIRCLIP
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
11
P/N (SKU): 7030-081081
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 703A-081030
Part Name: LOWER FLUID HOSE, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
13
P/N (SKU): 7030-081200
Part Name: MASTER CYLINDER
Effective: 2021-02-26
Alternative parts: 7030-081200-10000
Price: 65,00 € : 65,00 €
-+
14
P/N (SKU): 7020-080160-1000
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 26,00 € : 26,00 €
-+
14
P/N (SKU): 7020-080160
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 13,00 € : 13,00 €
-+
15
P/N (SKU): 7030-081040
Part Name: REAR BRAKE FRONT FLUID HOSE
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
16
P/N (SKU): 7030-081020
Part Name: COPPER PIPE
Effective: 2021-02-26
Alternative parts:
Price: 18,00 € : 18,00 €
-+
17
P/N (SKU): 7030-081070
Part Name: REAR BRAKE REAR FLUID HOSE
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
18
P/N (SKU): 703A-081050
Part Name: REAR BRAKE LOWER LH FLUID HOSE
Effective: 2021-02-26
Alternative parts:
Price: 9,00 € : 9,00 €
-+
19
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 7030-085500
Part Name: REAR BRAKE LH CALIPER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SINTERING/OPTIONAL
Price: 80,00 € : 80,00 €
-+
20
P/N (SKU): 7030-081500
Part Name: REAR BRAKE LH CALIPER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 78,00 € : 78,00 €
-+
21
P/N (SKU): 7030-0855A0
Part Name: REAR BRAKE PAD ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SINTERED PAD
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 7030-081520
Part Name: REAR BRAKE PAD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
22
P/N (SKU): 9030-080102
Part Name: T-JOINT
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
23
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 703A-081060
Part Name: REAR BRAKE LOWER RH FLUID HOSE
Effective: 2021-02-26
Alternative parts:
Price: 14,00 € : 14,00 €
-+
25
P/N (SKU): 7030-085600
Part Name: REAR BRAKE RH CALIPER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SINTERING/OPTIONAL
Price: 73,00 € : 73,00 €
-+
25
P/N (SKU): 7030-081600
Part Name: REAR BRAKE RH CALIPER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 83,00 € : 83,00 €
-+
26
P/N (SKU): 30801-01405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30304-140410
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30306-140112
Specification: 14
Price: 1,50 € : 1,50 €
28
P/N (SKU): 7030-082000-10000
Part Name: BRAKE PEDAL ASSY
Effective: 2021-02-26
Remarks: HIGH SENSITIVE(27mm,SEE CF2017-292C)
Alternative parts:
Price: 27,00 € : 27,00 €
-+
28
P/N (SKU): 7030-082000
Part Name: BRAKE PEDAL ASSY
Effective: 2021-02-26
Remarks: LOW SENSITIVE(23mm,SEE CF2017-292C)
Alternative parts:
Price: 27,00 € : 27,00 €
-+
29
P/N (SKU): 9030-180008
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 7030-083100-10001
Part Name: LH CABLE, PARKING
Effective: 2021-02-26
Alternative parts:
Price: 21,00 € : 21,00 €
-+
31
P/N (SKU): 7030-083200-10001
Part Name: RH CABLE, PARKING
Effective: 2021-02-26
Alternative parts:
Price: 21,00 € : 21,00 €
-+
32
P/N (SKU): 30102-080025810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 7030-083001
Part Name: BRACKET, CABLE
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
34
P/N (SKU): 9060-106020
Part Name: PARKING BRAKE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 45,00 € : 45,00 €
-+
34
P/N (SKU): 9060-106020-10000
Part Name: PARKING BRAKE ASSY
Effective: 2021-02-26
Alternative parts: 30200-060810+9060-106020
Price: 45,00 € : 45,00 €
35
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 703A-081010
Part Name: RH LOWER FLUID HOSE, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 17,00 € : 17,00 €
-+
38
P/N (SKU): 7030-085400
Part Name: RH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SINTERING/OPTIONAL
Price: 60,00 € : 60,00 €
-+
38
P/N (SKU): 7030-081400
Part Name: RH CALIPER, FRONT BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 68,00 € : 68,00 €
-+
39
P/N (SKU): 703A-081000-50000
Part Name: HYDRAULIC BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SINTERED PAD, SUMITOMO PLUG
Price: 354,00 € : 354,00 €
-+
39
P/N (SKU): 703A-081000-40000
Part Name: HYDRAULIC BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SINTERED PAD, Common connector
Price: 348,00 € : 348,00 €
-+
39
P/N (SKU): 703A-081000-20000
Part Name: HYDRAULIC BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 358,00 € : 358,00 €
-+
39
P/N (SKU): 703A-081000
Part Name: HYDRAULIC BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 315,00 € : 315,00 €
-+
39
P/N (SKU): 703A-081000-1000
Part Name: HYDRAULIC BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SINTERED PAD
Price: 358,00 € : 358,00 €
-+
39
P/N (SKU): 703A-081000-30000
Part Name: HYDRAULIC BRAKE
Effective: 2021-02-26
Alternative parts:
Specification: SINTERED PAD, SUMITOMO PLUG
Price: 358,00 € : 358,00 €
-+
