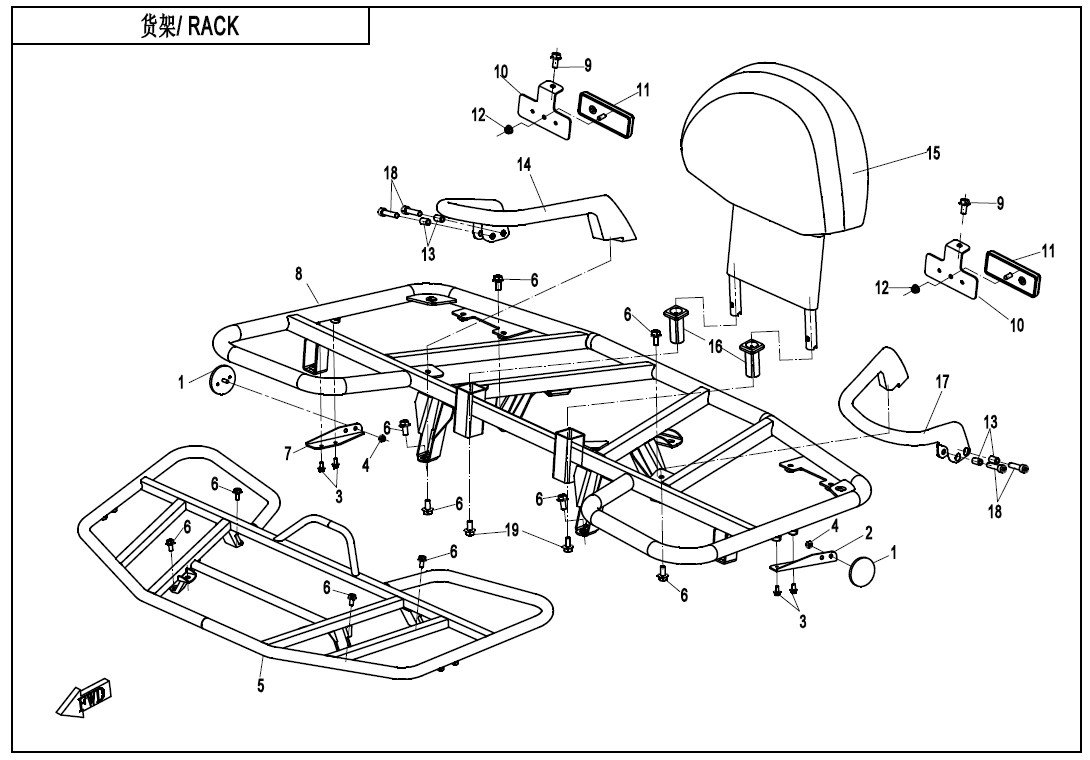

RACK (STEEL,CANADA) - F14-C

RACK (STEEL,CANADA) - F14-C

No.

01
P/N (SKU): 9GQ0-160440
Part Name: REAR REFLECTOR
Effective: 2021-02-26
Alternative parts: 9GQV-160930-1401-M1
Price: 2,40 € : 2,40 €
02
P/N (SKU): 9GQ0-143101
Part Name: BRACKET, LH REAR REFLECTOR
Effective: 2021-02-26
Alternative parts:
Price: 2,40 € : 2,40 €
-+
03
P/N (SKU): 30006-050012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M5×12
Price: 1,30 € : 1,30 €
-+
04
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 9GQ0-141000
Part Name: FRONT RACK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 122,00 € : 122,00 €
-+
06
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
07
P/N (SKU): 9GQ0-143201
Part Name: BRACKET, RH REAR REFLECTOR
Effective: 2021-02-26
Alternative parts:
Price: 2,40 € : 2,40 €
-+
08
P/N (SKU): 9GQL-142000-20000
Part Name: REAR RACK ASSY
Effective: 2021-02-26
Alternative parts: 9GQL-142000-30000
Price: 93,10 € : 93,10 €
09
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
10
P/N (SKU): 9GQ0-030001
Part Name: BRACKET, REAR REFLECTOR
Effective: 2021-02-26
Alternative parts:
Price: 2,40 € : 2,40 €
-+
11
P/N (SKU): 9GQ0-160450
Part Name: REAR REFLECTOR
Effective: 2021-02-26
Alternative parts: 9GQV-160910-2401-M1
Price: 2,40 € : 2,40 €
12
P/N (SKU): 30202-050110
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M5
Price: 1,00 € : 1,00 €
-+
13
P/N (SKU): 9010-040808
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts: 9010-040808-10000
Price: 1,80 € : 1,80 €
14
P/N (SKU): 4020-140700-10000
Part Name: RH ARMREST
Effective: 2021-02-26
Alternative parts:
Price: 42,90 € : 42,90 €
-+
15
P/N (SKU): 9CR6-141300-10000
Part Name: BACKREST ASSY
Effective: 2021-02-26
Alternative parts:
Price: 86,50 € : 86,50 €
-+
16
P/N (SKU): 9CR6-141001
Part Name: BACKREST SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 4020-140600
Part Name: ARMREST, LH
Effective: 2021-02-26
Alternative parts: 4020-140600-10000+9010-040808-10000
Price: 37,28 € : 37,28 €
18
P/N (SKU): 30102-080035810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M8x35@COLOR ZINC-PLATED
Price: 1,00 € : 1,00 €
-+
19
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,00 € : 1,00 €
-+
