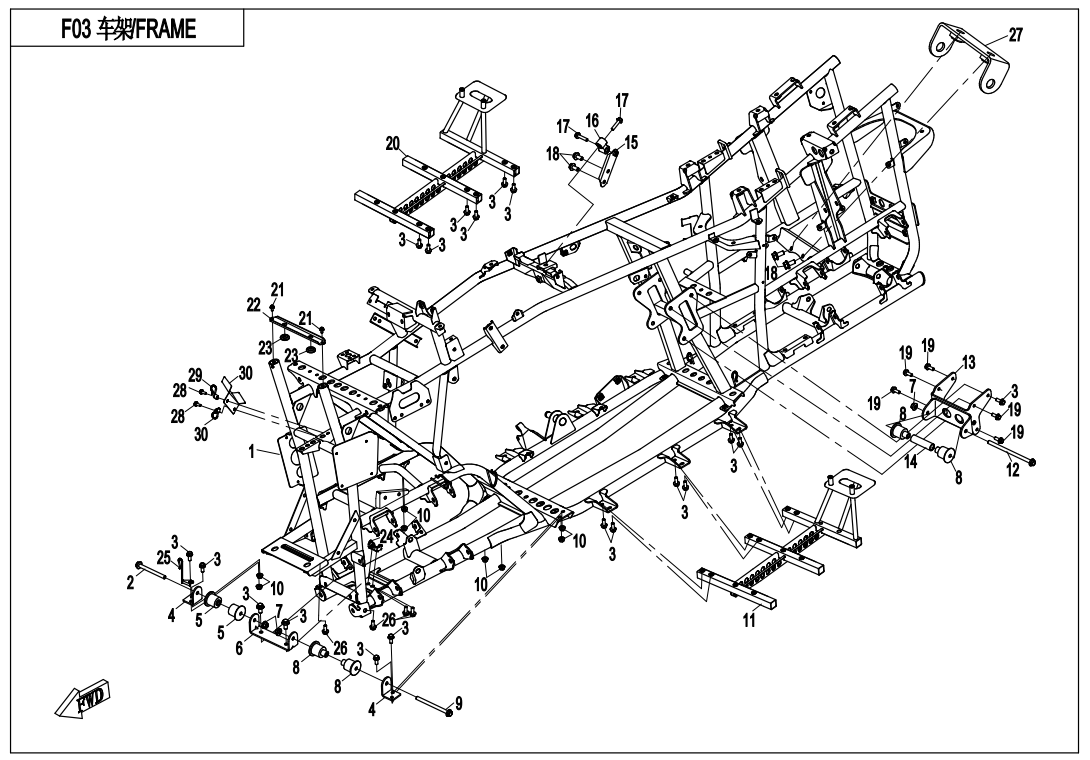

FRAME - F03

FRAME - F03

No.

01
P/N (SKU): 7020-031000-M0000
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts:
Price: 644,00 € : 644,00 €
-+
02
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x100
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 7020-000101
Part Name: MOUNT 1, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 7020-000120
Part Name: RH CUSHION BUSHING, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
06
P/N (SKU): 7020-000102
Part Name: MOUNT 2, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
07
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7020-000110
Part Name: LH CUSHION COLLAR, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
09
P/N (SKU): 30006-102130810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10x1.25x130@COLOR ZINC TRIVALENT CHROMIUM
Price: 4,00 € : 4,00 €
-+
10
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 7020-037000
Part Name: BRACKET, LH FOOT PEDAL
Effective: 2021-02-26
Alternative parts:
Price: 42,00 € : 42,00 €
-+
12
P/N (SKU): 30001-102170110
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M10×1.25×170
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 7020-000130
Part Name: REAR BRACKET, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 26,00 € : 26,00 €
-+
14
P/N (SKU): 7020-000171
Part Name: MIDDLE SPACER
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
15
P/N (SKU): 7020-000150
Part Name: UPPER MOUNT PLATE, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 12,00 € : 12,00 €
-+
17
P/N (SKU): 30006-080035810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×35
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts: 30006-102020810
Specification: M10x20
Price: 2,00 € : 2,00 €
19
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 7020-037100
Part Name: RH FOOT PEDAL BRACKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 42,00 € : 42,00 €
-+
21
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
22
P/N (SKU): 7020-038011
Part Name: BATTERY PRESS PLATE
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9010-030005
Part Name: BATTERY RUBBER WASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 9010-037400
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 9,50 € : 9,50 €
-+
25
P/N (SKU): 7020-000190
Part Name: HOOK
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 7020-036810
Part Name: MOUNT BRACKET, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
28
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 7020-030130
Part Name: LOWER WIRING HOOK
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
30
P/N (SKU): 7020-000404
Part Name: HEAT INSULATOR, FUEL HOSE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
